EE776420/776520 TIMKEN

Brand - TIMKEN
Item Number - EE776420/776520 TIMKEN
Also Known As - EE776420 - 776520
Category - Single Row Tapered Roller Bearing (TS Type)
Bore Diameter (d) mm - 1066.8
Bore Diameter (d) inch - 42
Outer Diameter (D) mm - 1320.8
Outer Diameter (D) inch - 52
Width (T) mm - 95.25
Width (T) inch - 3.75
Dynamic Load Rating (C1) N - 2670000
Dynamic Load Rating (C1) lbf - 599000
Factor (e) - 0.57
Factor (Y) - 1.05
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 691000
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 155000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 676000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 152000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.02
Basic Static Radial Load Rating (C0) N - 6990000
Basic Static Radial Load Rating (C0) lbf - 1570000
Cone Width (B) mm - 88.9
Cone Width (B) inch - 3.5
Cup Width (C) mm - 69.85
Cup Width (C) inch - 2.75
Effective Center Location (a) mm - 175.8
Effective Center Location (a) inch - 6.92
Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25

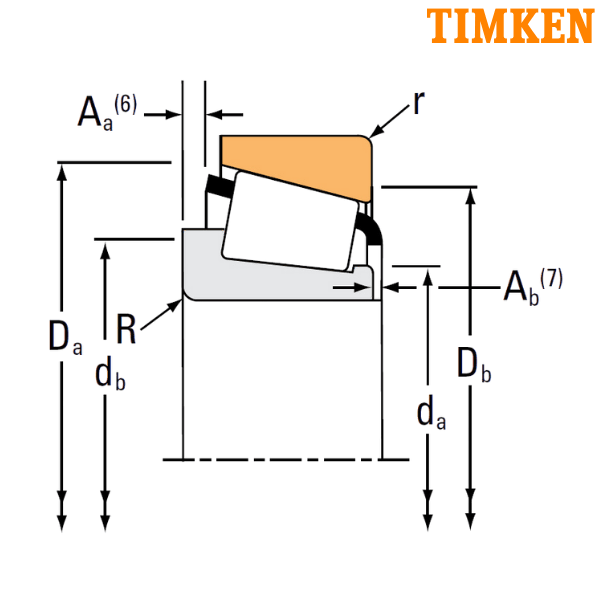

Cone Frontface Backing Diameter (da) mm - 1115
Cone Frontface Backing Diameter (da) inch - 43.9
Cone Backface Backing Diameter (db) mm - 1115
Cone Backface Backing Diameter (db) inch - 43.9
Max Housing Fillet Radius (r) mm - 6.4
Max Housing Fillet Radius (r) inch - 0.25
Cup Frontface Backing Diameter (Da) mm - 1273.5
Cup Frontface Backing Diameter (Da) inch - 50.14
Cup Backface Backing Diameter (Db) mm - 1260
Cup Backface Backing Diameter (Db) inch - 49.61
Cage-Cone Backface Clearance (Aa) mm - 15.5
Cage-Cone Backface Clearance (Aa) inch - 0.61
Cage-Cone Frontface Clearance (Ab) mm - 4.9
Cage-Cone Frontface Clearance (Ab) inch - 0.2
Geometry Factor (G1) - 23201.8
Geometry Factor (G2) - 2946.7
Geometry Factor (Cg) - 0.4231
Weight (kg) - 268.22
Weight (lbs) - 591.29
Inner Part Number - EE776420
Outer Part Number - 776520
TS - Single Row Tapered Roller Bearing

** Images are for representation purposes only
