EE843220/843292D TIMKEN

Brand - TIMKEN
Item Number - EE843220/843292D TIMKEN
Also Known As - EE843220 - 843292D
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 558.8
Bore Diameter (d) inch - 22
Outer Diameter (D) mm - 742.95
Outer Diameter (D) inch - 29.25
Bearing Width across Cones (T) mm - 187.328
Bearing Width across Cones (T) inch - 7.3751
Double Outer Ring Width (C) mm - 138.112
Double Outer Ring Width (C) inch - 5.4375
Dynamic Load Rating (C1) N - 3600000
Dynamic Load Rating (C1) lbf - 810000
Factor (e) - 0.34
Factor (Y1) - 1.97
Factor (Y2) - 2.93
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 536000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 121000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 315000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 70700
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 934000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 210000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.7

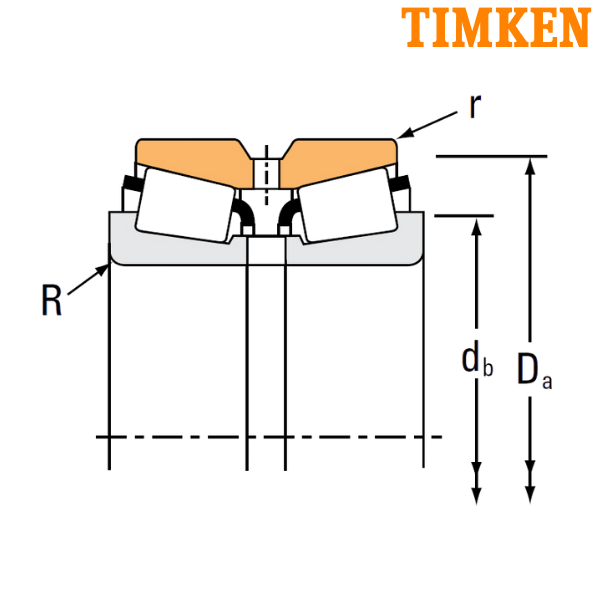

Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Cone Backface Backing Diameter (db) mm - 591
Cone Backface Backing Diameter (db) inch - 23.27
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 707.1
Cup Frontface Backing Diameter (Da) inch - 27.84
Geometry Factor (G1) - 7097.5
Geometry Factor (G2) - 714.8
Geometry Factor (Cg) - 0.2478
Bearing Weight (kg) - 204.62
Bearing Weight (lbs) - 451.1
Inner Part Number - EE843220
Outer Part Number - 843292D
TDO - Single Piece (Double) Outer Ring and Two Single Inner Rings

** Images are for representation purposes only
