EE921150D/921875 TIMKEN

Brand - TIMKEN
Item Number - EE921150D/921875 TIMKEN
Also Known As - EE921150D - 921875
Category - Double Row Tapered Roller Bearing (TDI Type)
Bore Diameter (d) mm - 292.1
Bore Diameter (d) inch - 11.5
Outer Diameter (D) mm - 476.25
Outer Diameter (D) inch - 18.75
Bearing Width across Cups (T) mm - 138.928
Bearing Width across Cups (T) inch - 5.4696
Double Cone Width (B) mm - 142.875
Double Cone Width (B) inch - 5.625
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 2630000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 591000
Factor (e) - 0.3
Factor (Y1) - 2.3
Factor (Y2) - 3.4
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 391000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 88000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 196000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 44000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 681000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 153000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 2
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 314
Cone Frontface Backing Diameter (da) inch - 12.36
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Backface Backing Diameter (Db) mm - 442
Cup Backface Backing Diameter (Db) inch - 17.4
Geometry Factor (G1) - 1732.1
Geometry Factor (G2) - 200
Geometry Factor (Cg) - 0.1481
Weight (kg) - 92.56
Weight (lbs) - 204.07
Inner Part Number - EE921150D
Outer Part Number - 921875
TDI - Double Inner Ring

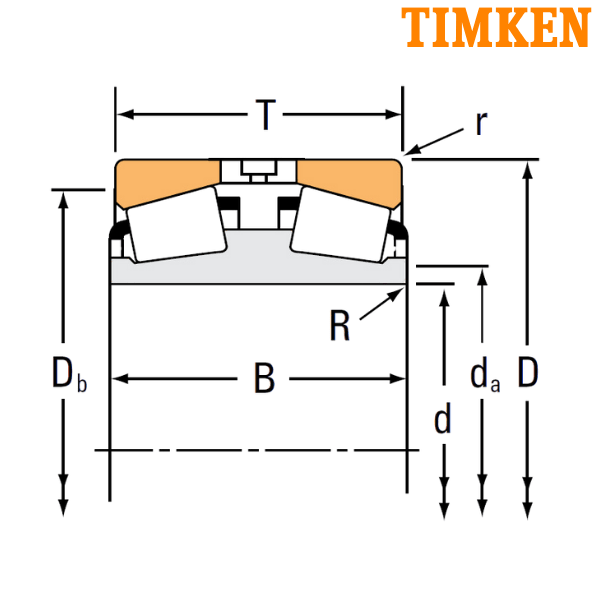

** Images are for representation purposes only
