Description
Brand - FAG
Item Number - F-573064 FAG
Category - Axial Deep Groove Ball Bearing
Inner Diameter (d) mm - 800
Outer Diameter (D) mm - 945
Height (T) mm - 90

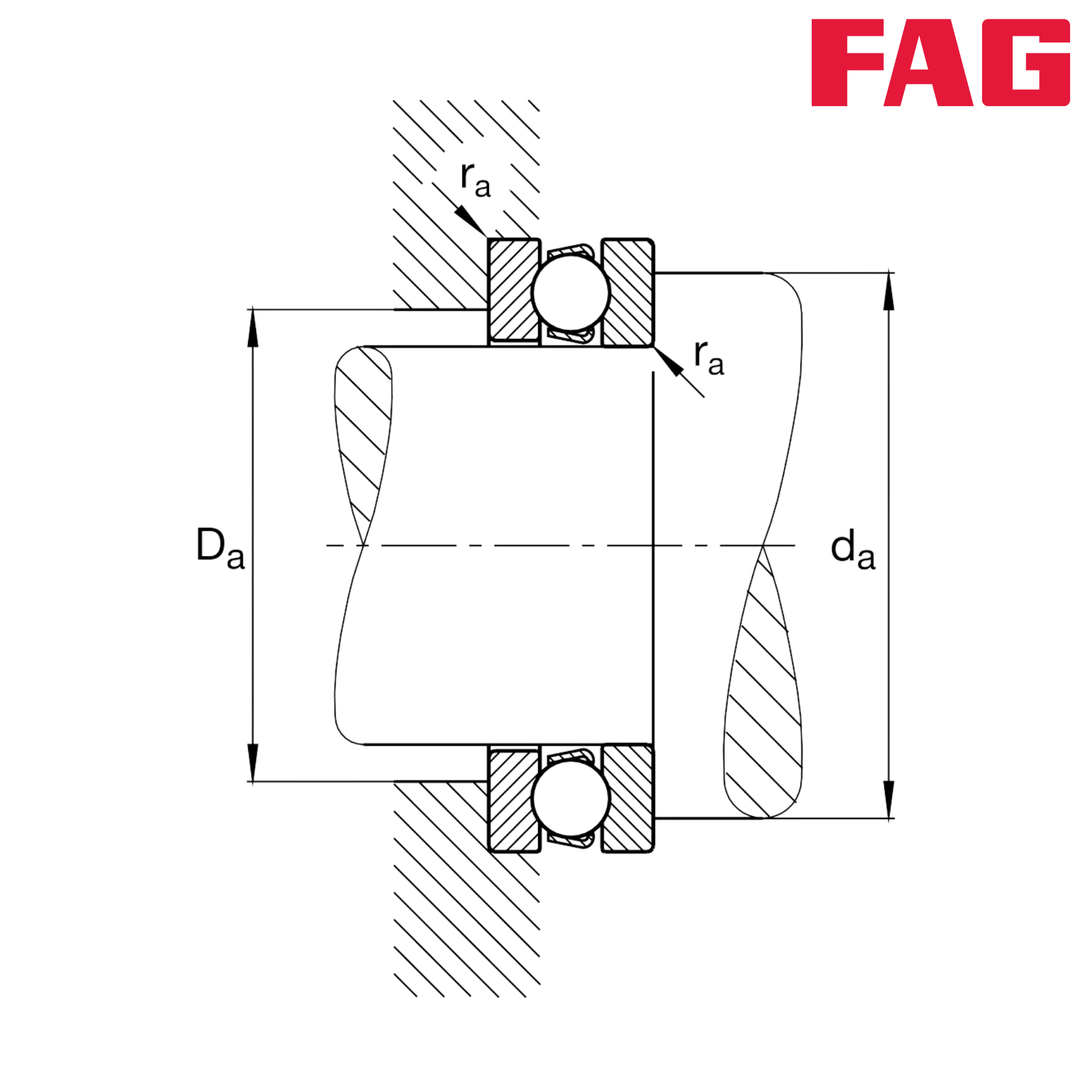

Minimum Mounting Dimension (D1) mm - 800
Dimension (d1) mm - 945
Chamfer Dimension (r) mm - 4
Minimum Mounting Dimension (da) mm - 894
Maximum Mounting Dimension (Da) mm - 851
Mounting Dimension (ra) mm - 4
Basic Dynamic Load Rating (C) kN - 750
Basic Static Load Rating (C0) kN - 5850
Limiting Speed for Oil Lubrication (nG oil) 1/min - 360
Axial Run-Out (µm) - 5
Minimum Load Factor (A) - 204
** Images are for representation purposes only
