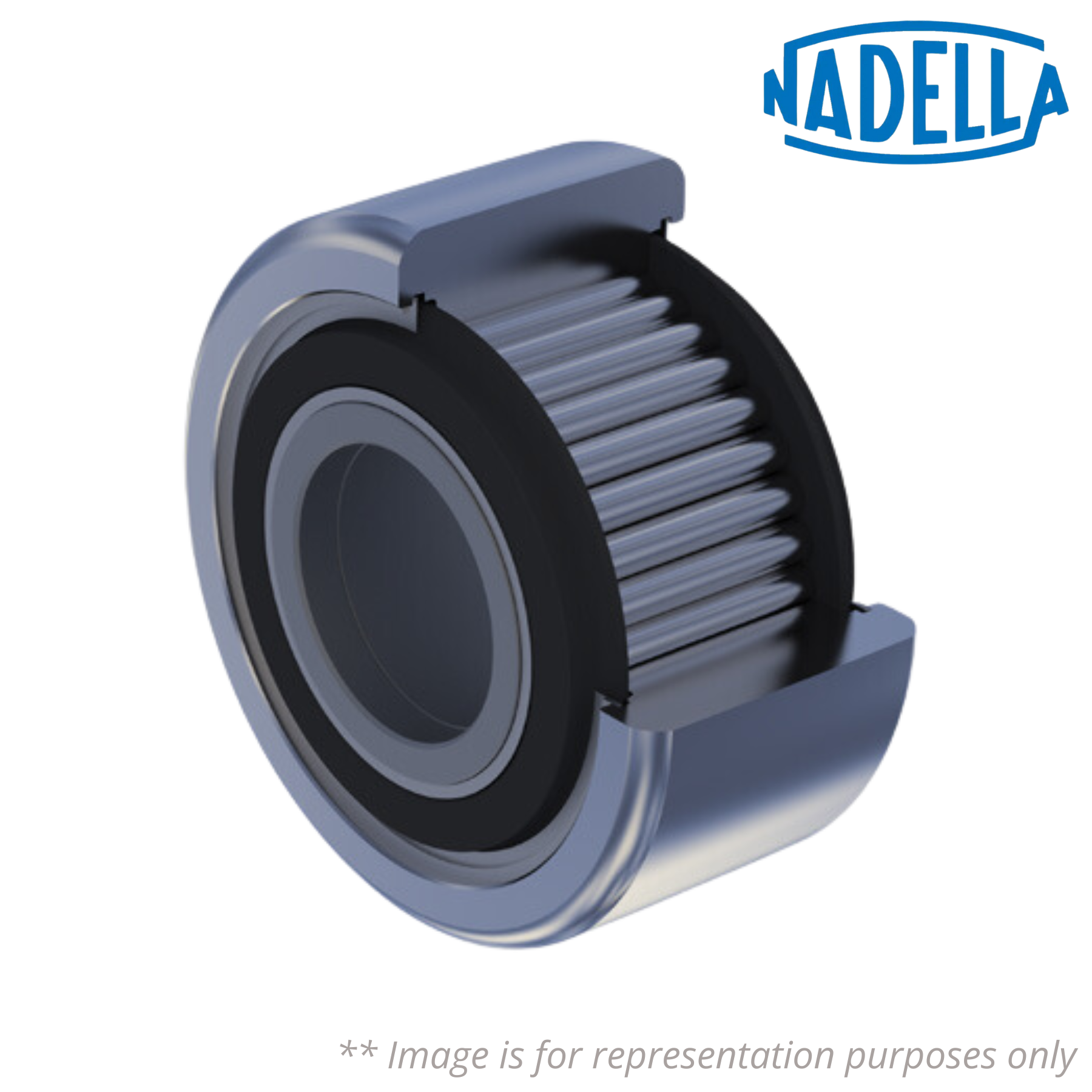

FG 140 250 EEM NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FG 140 250 EEM NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG140250EEM

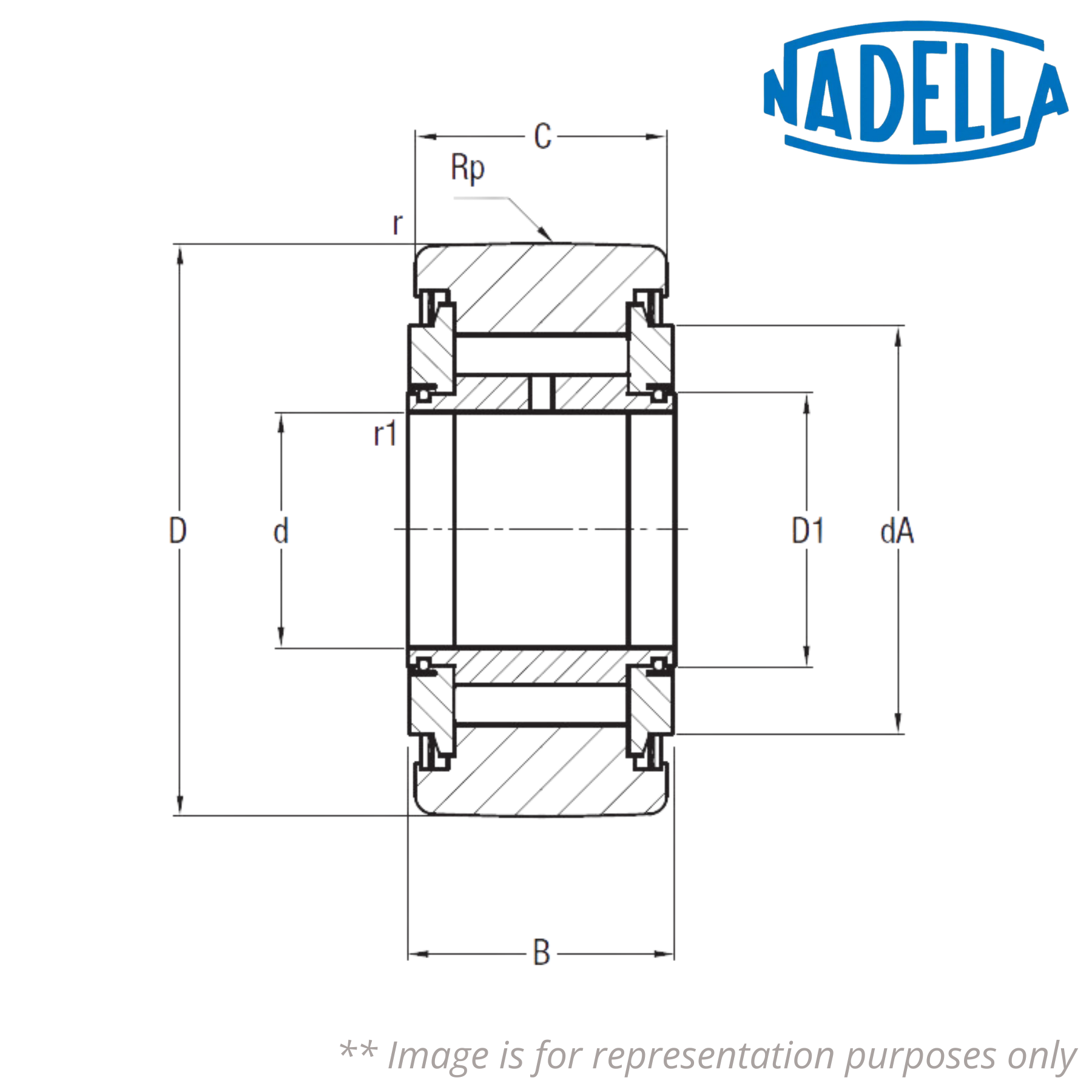

Outer Diameter (D) mm - 250
Recommended Diameter for Pivot (d) mm - 140
B (mm) - 78
C (mm) - 75
D1 (mm) - 162
Minimum Recommended Abutment Support Diameter (dA) mm - 183
r (mm) - 3
r1 (mm) - 1.5
Constant Radius Crowning (Rp) mm - 1600
Load Coefficient (Cw) N - 280000
Dynamic Load Coefficient (Fr) N - 410000
Static Load Coefficient (For) N - 670000
Speed Limit with Grease (min-1) - 260
Weight (kg) - 18.5
FG - Cam Follower without Stud with Optimised Outer Profile Ring
Seal - With Metal Seal
