FG 20 47 SW NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FG 20 47 SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG2047SW

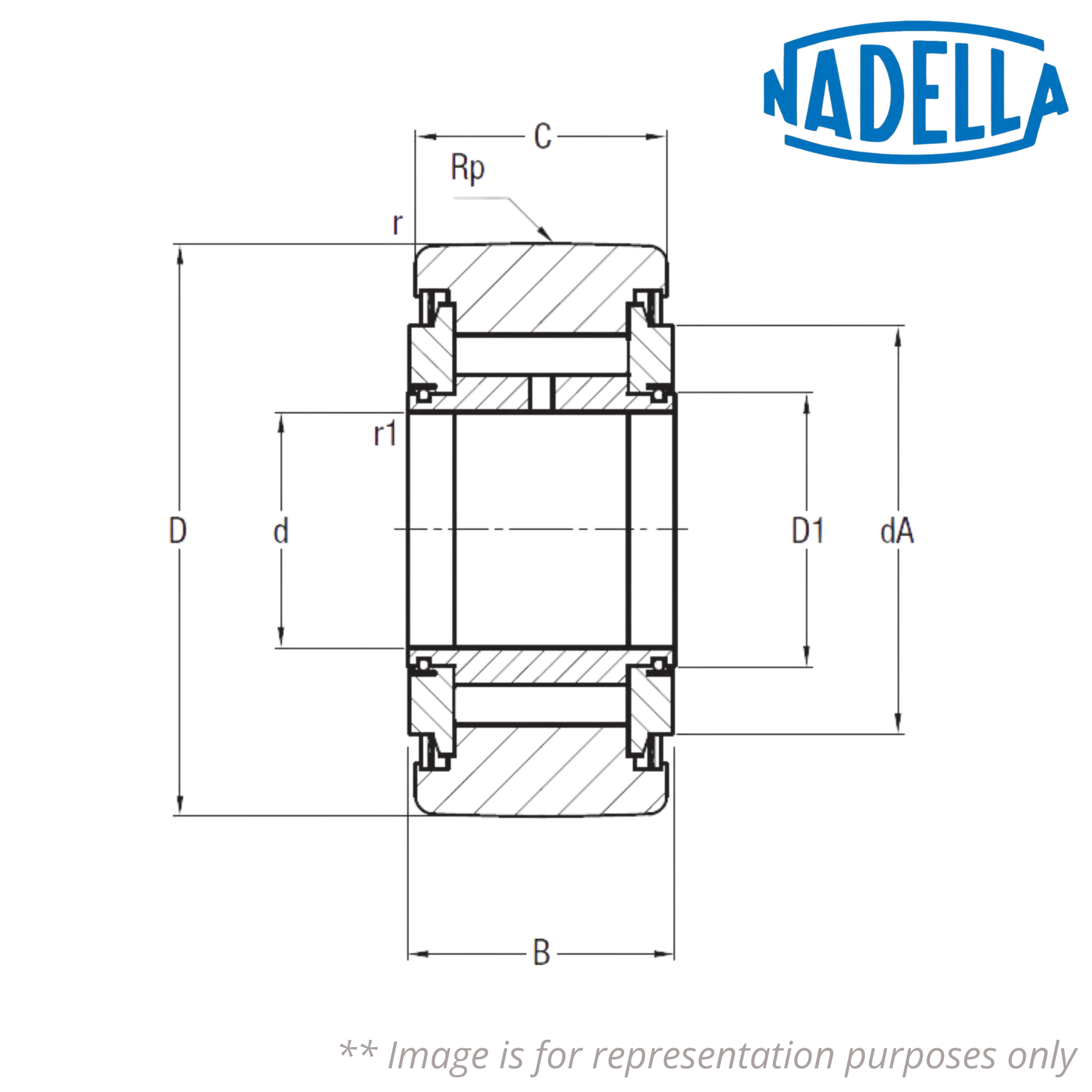

Outer Diameter (D) mm - 47
Recommended Diameter for Pivot (d) mm - 20
B (mm) - 25
C (mm) - 24
D1 (mm) - 25.7
Minimum Recommended Abutment Support Diameter (dA) mm - 35
r (mm) - 1
r1 (mm) - 0.3
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) mm - 1200
Load Coefficient (Cw) N - 27000
Dynamic Load Coefficient (Fr) N - 22000
Static Load Coefficient (For) N - 35000
Speed Limit with Grease (min-1) - 1500
Weight (kg) - 0.295

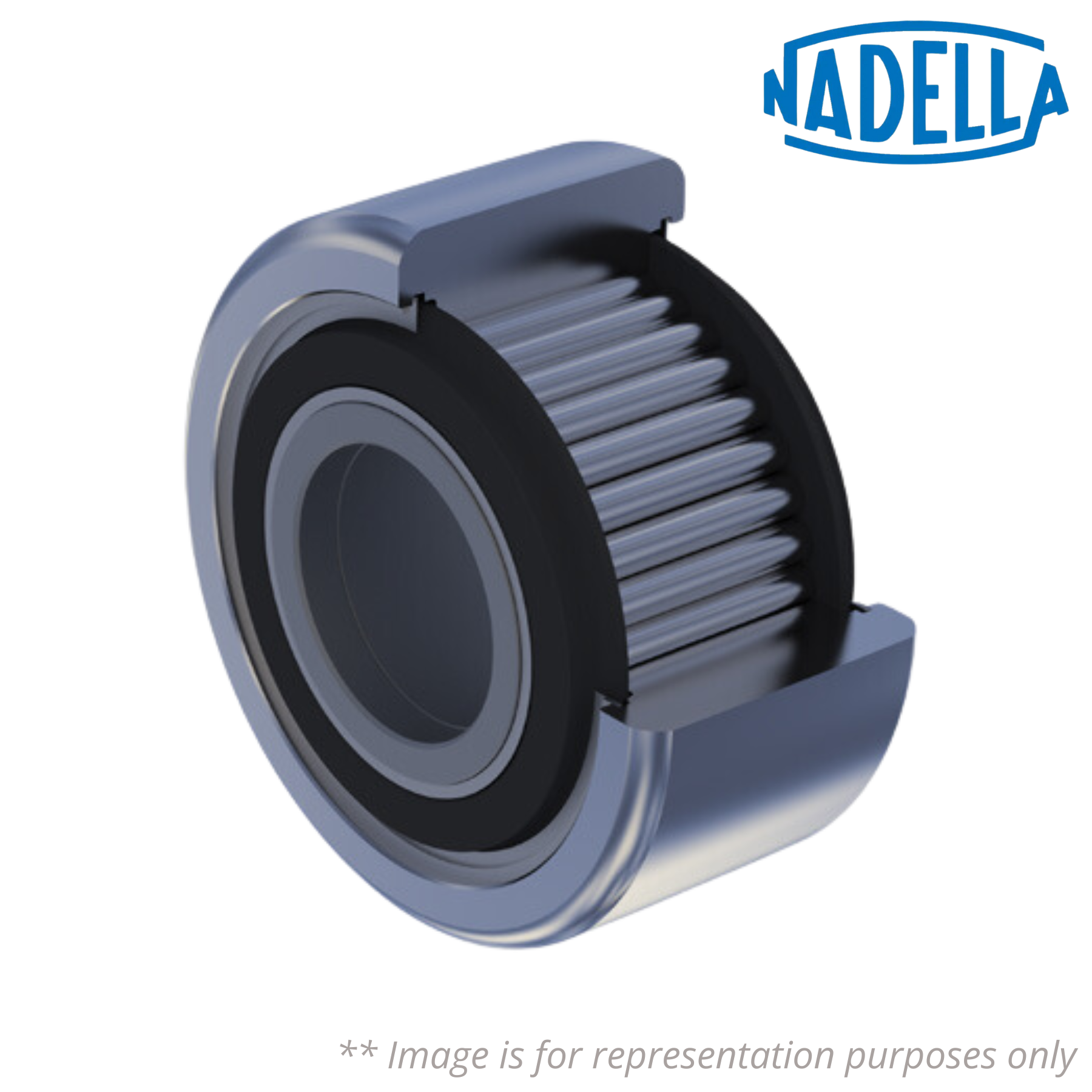

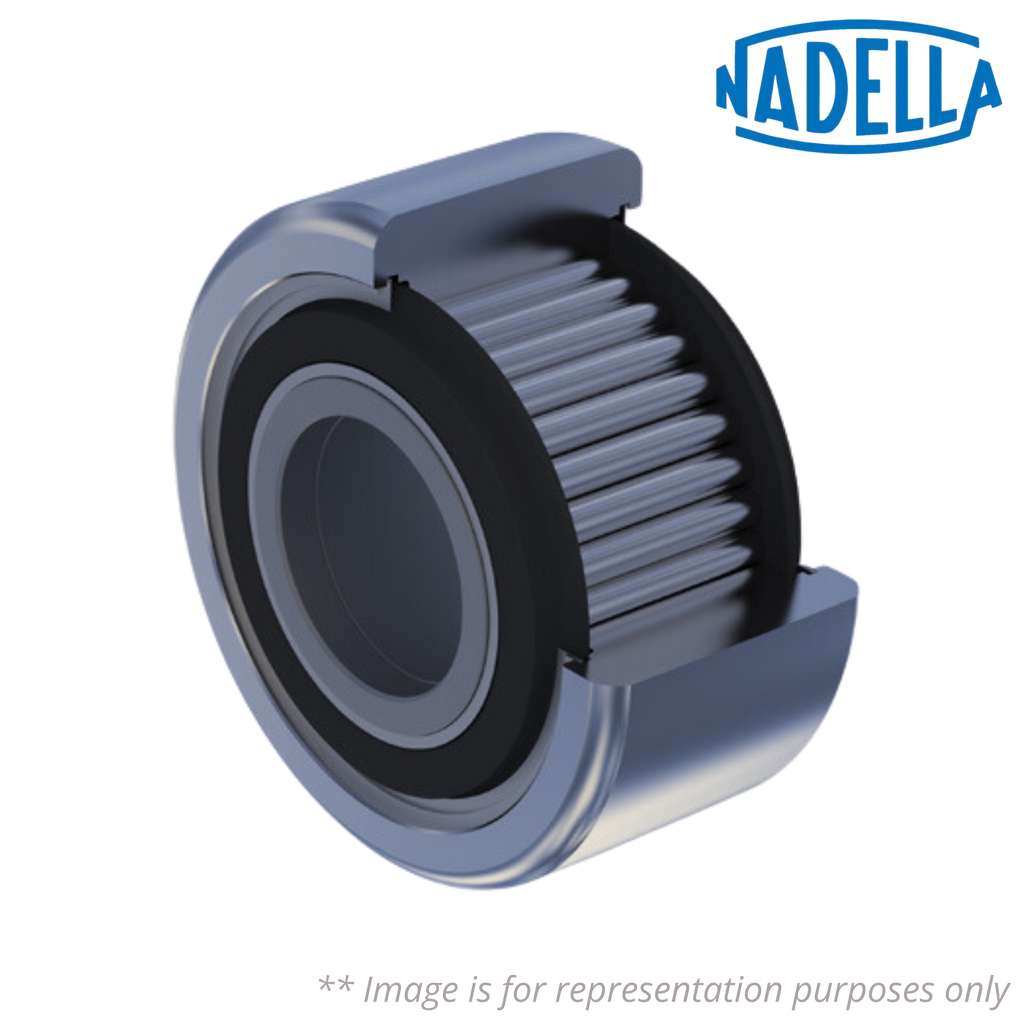

FG - Cam Follower without Stud with Optimised Outer Profile Ring
Seal - No Seal
