FG 30 62 EEM SW NADELLA

Brand - NADELLA
Item Number - FG 30 62 EEM SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG3062EEMSW

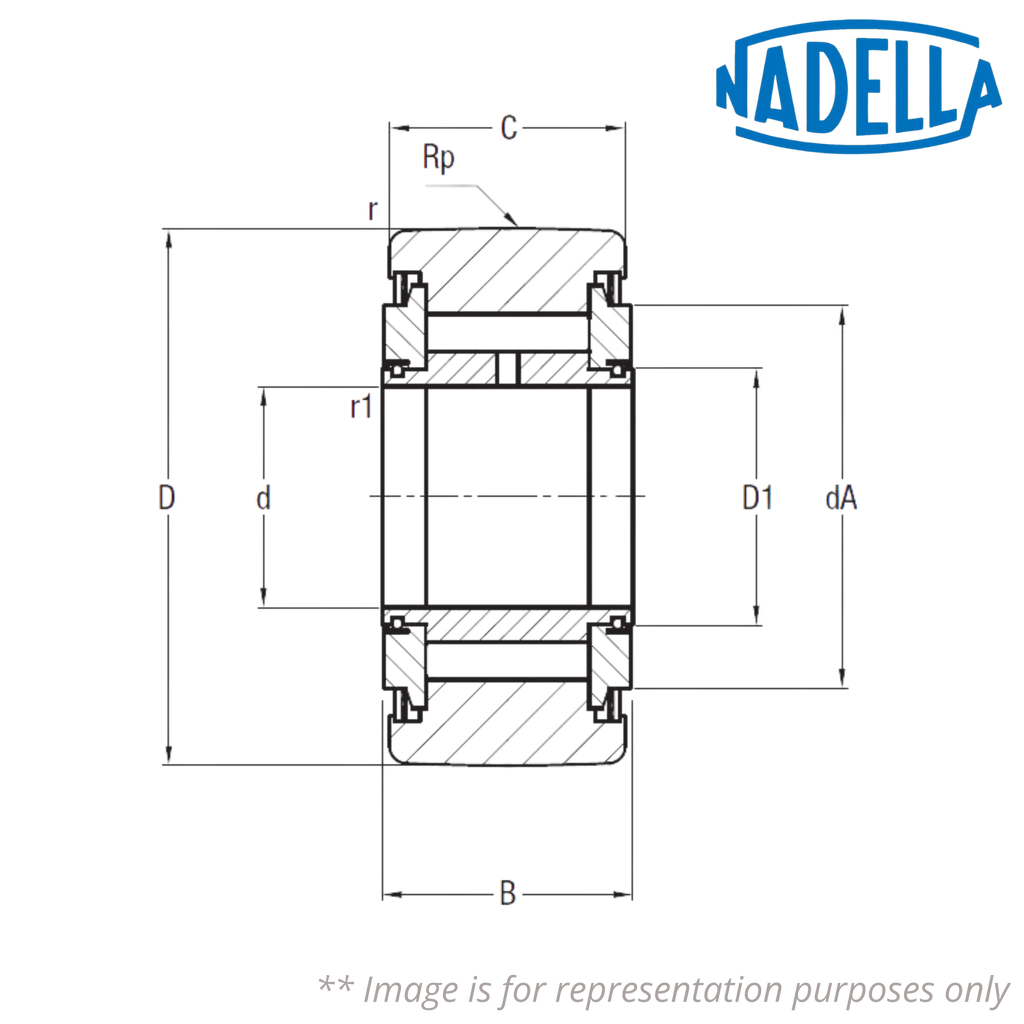

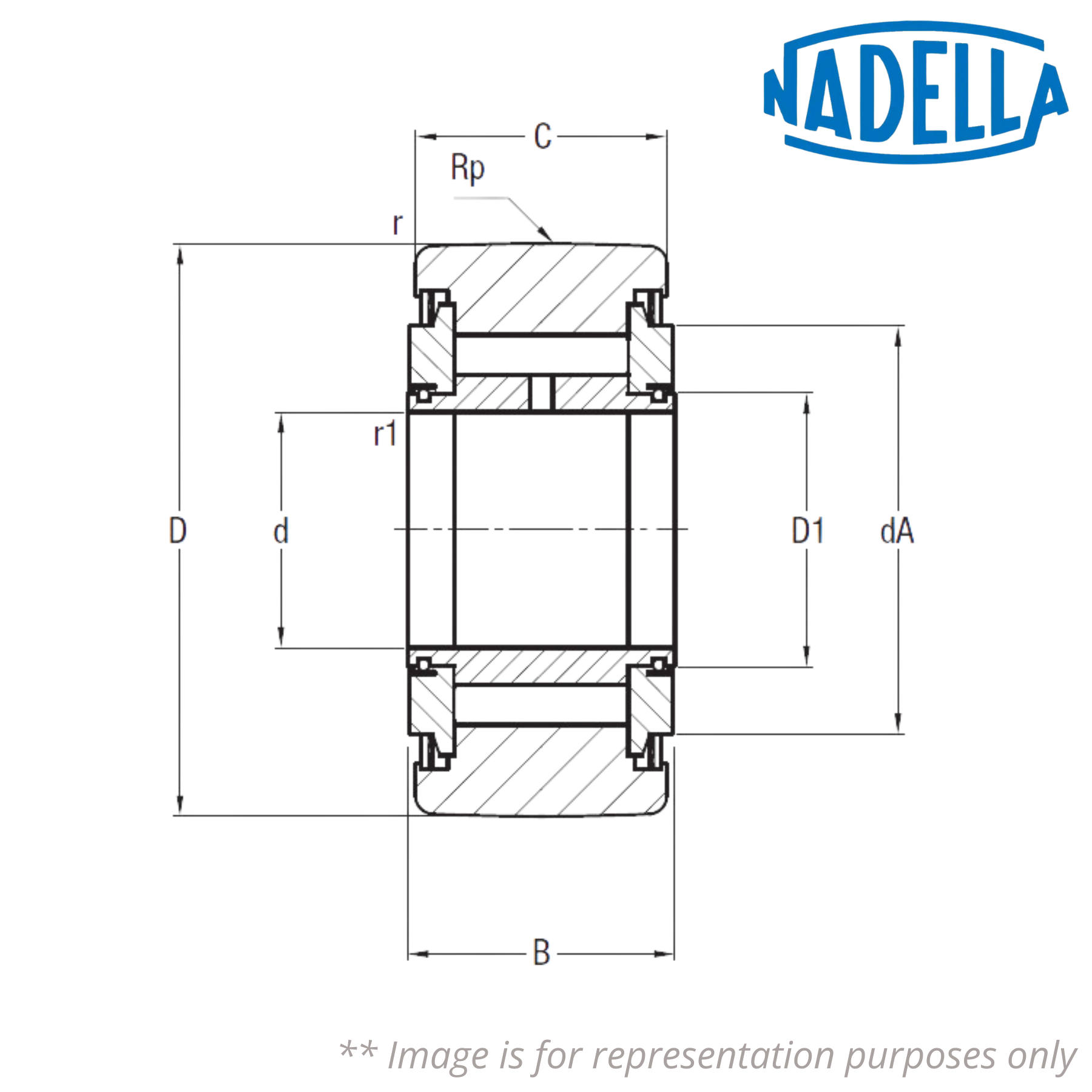

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 62 mm
Recommended Diameter for Pivot (d) - 30 mm
Dimension (B) - 29 mm
Dimension (C) - 28 mm
Dimension (D1) - 34.8 mm
Minimum Recommended Abutment Support Diameter (dA) * - 45 mm
Dimension (r) - 1 mm
Dimension (r1) - 0.3 mm
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) - 1500 mm
Load Coefficient (Cw) - 38000 N
Dynamic Load Coefficient (Fr) - 43000 N
Static Load Coefficient (For) - 69000 N
Speed Limit with Grease - 1100 RPM
Weight - 0.49 kg

Description of Suffixes and Prefixes:
FG - Cam followers without stud
EEM - With Metal seals
SW - with optimised outer profile ring without seal

Other salient points to be noted:
* Minimum recommended abutment support diameter in the event of excessive axial load or if there are vibrations

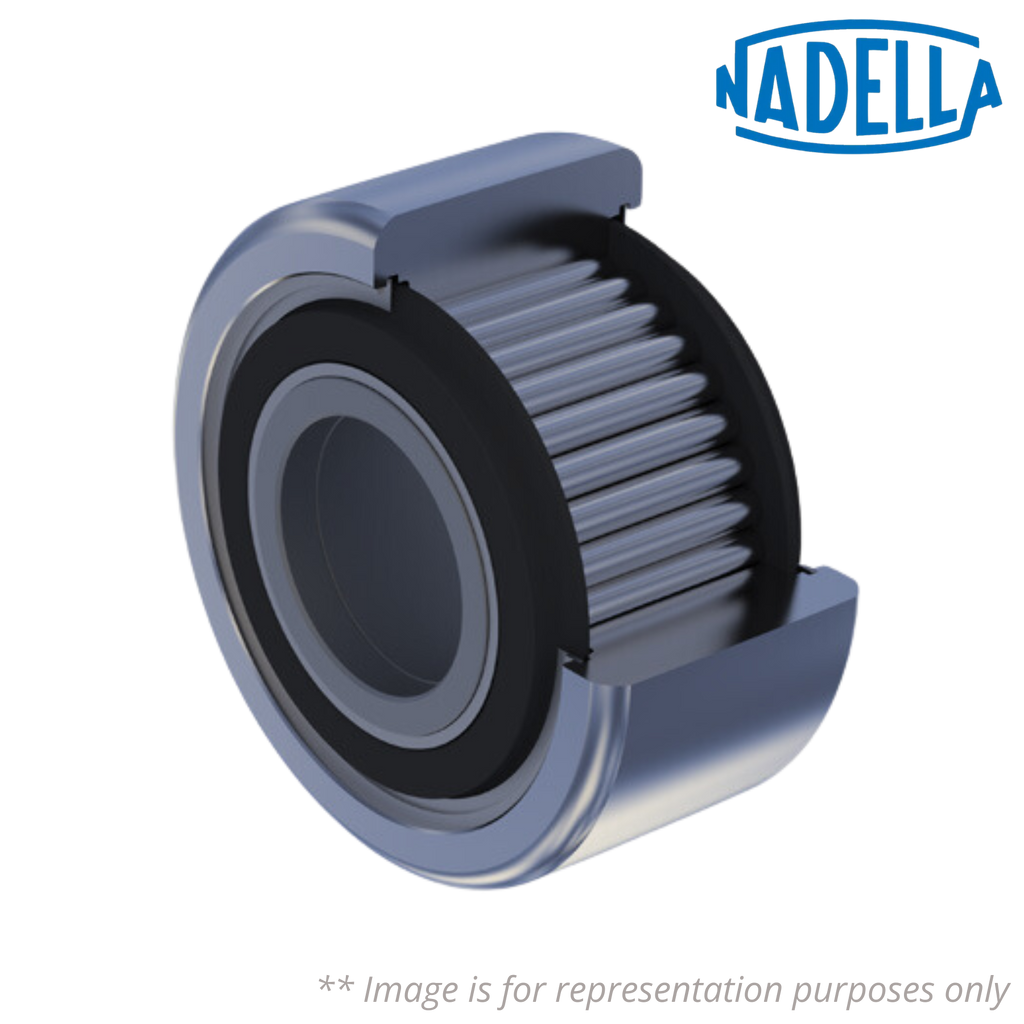

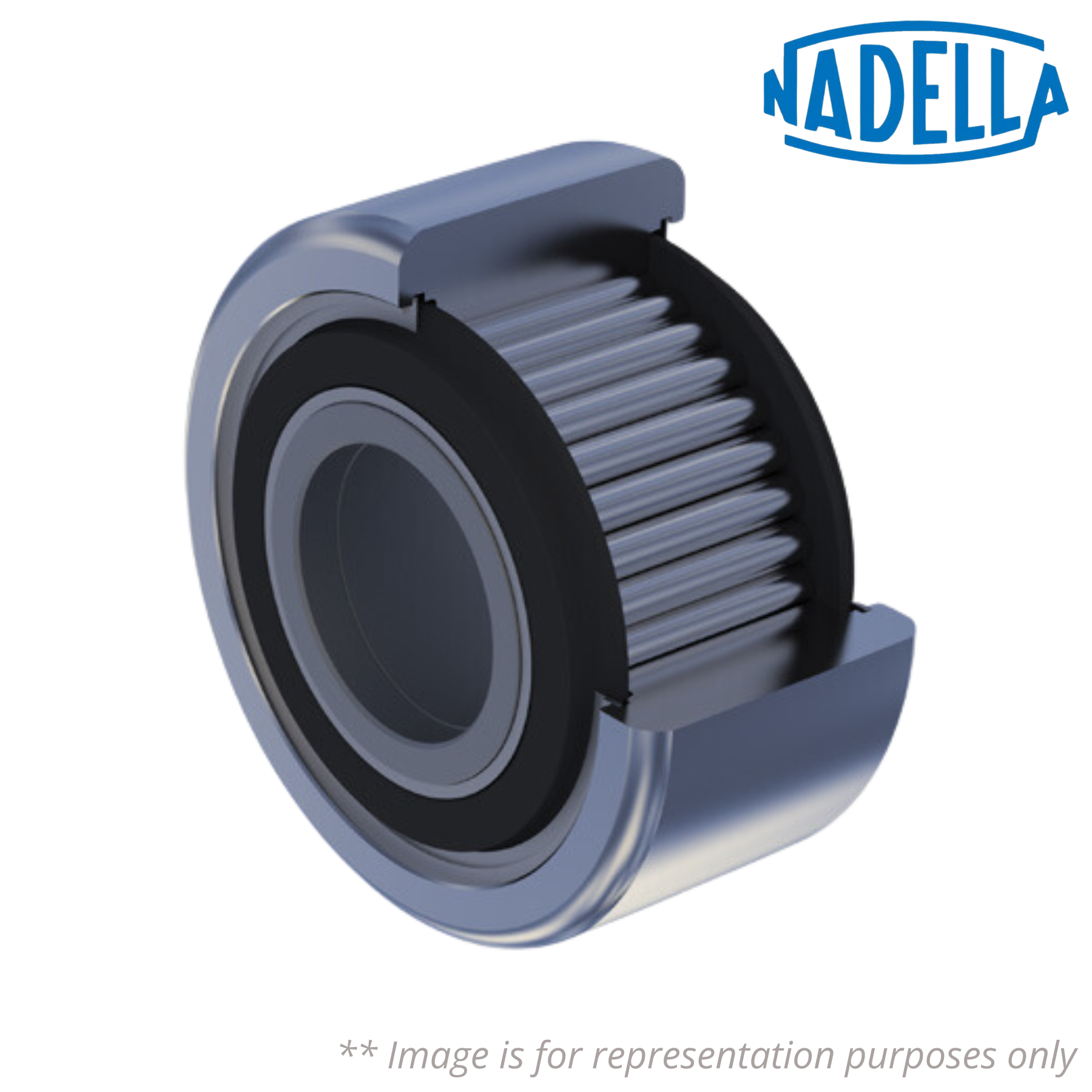

♦♦ Images are for representation purposes only
