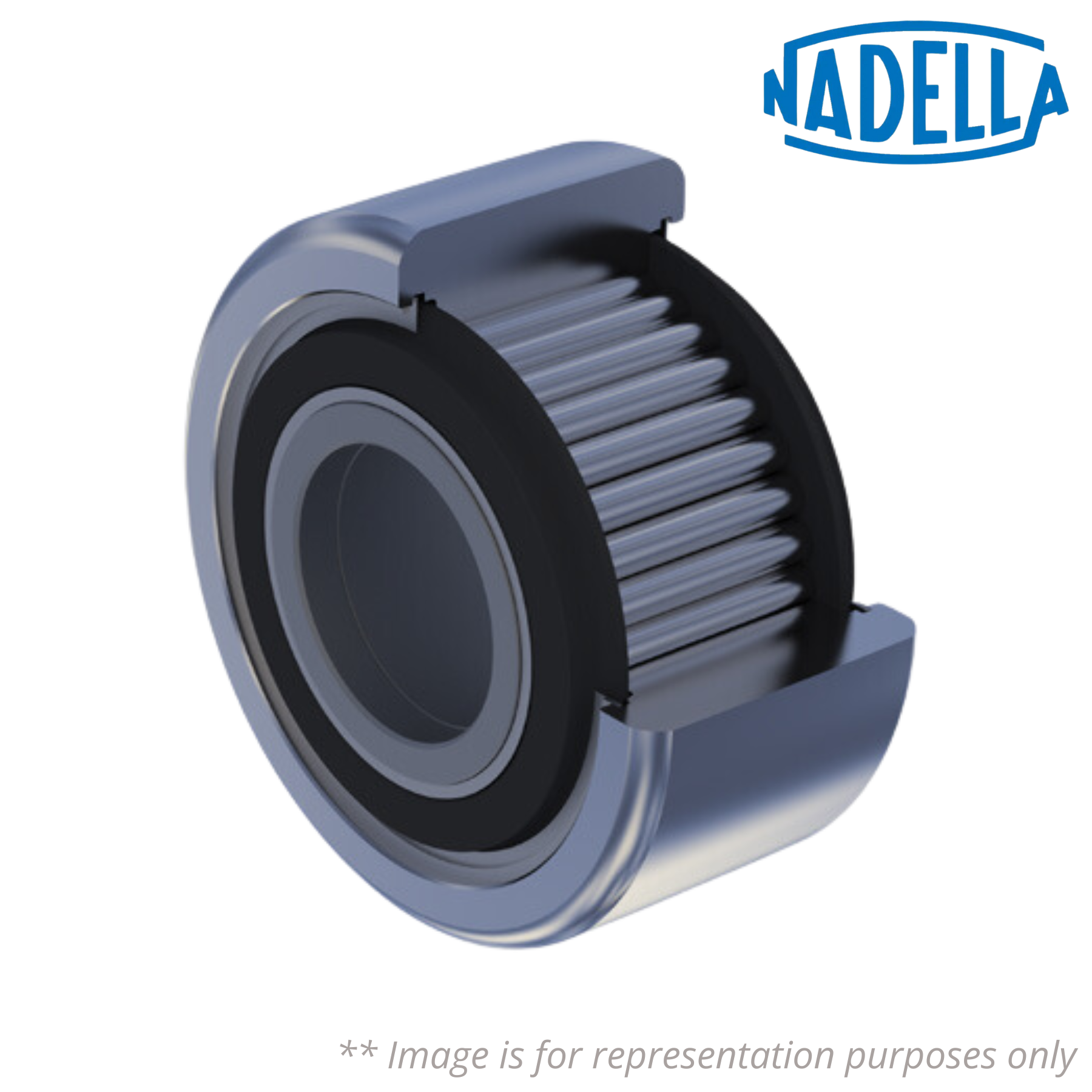

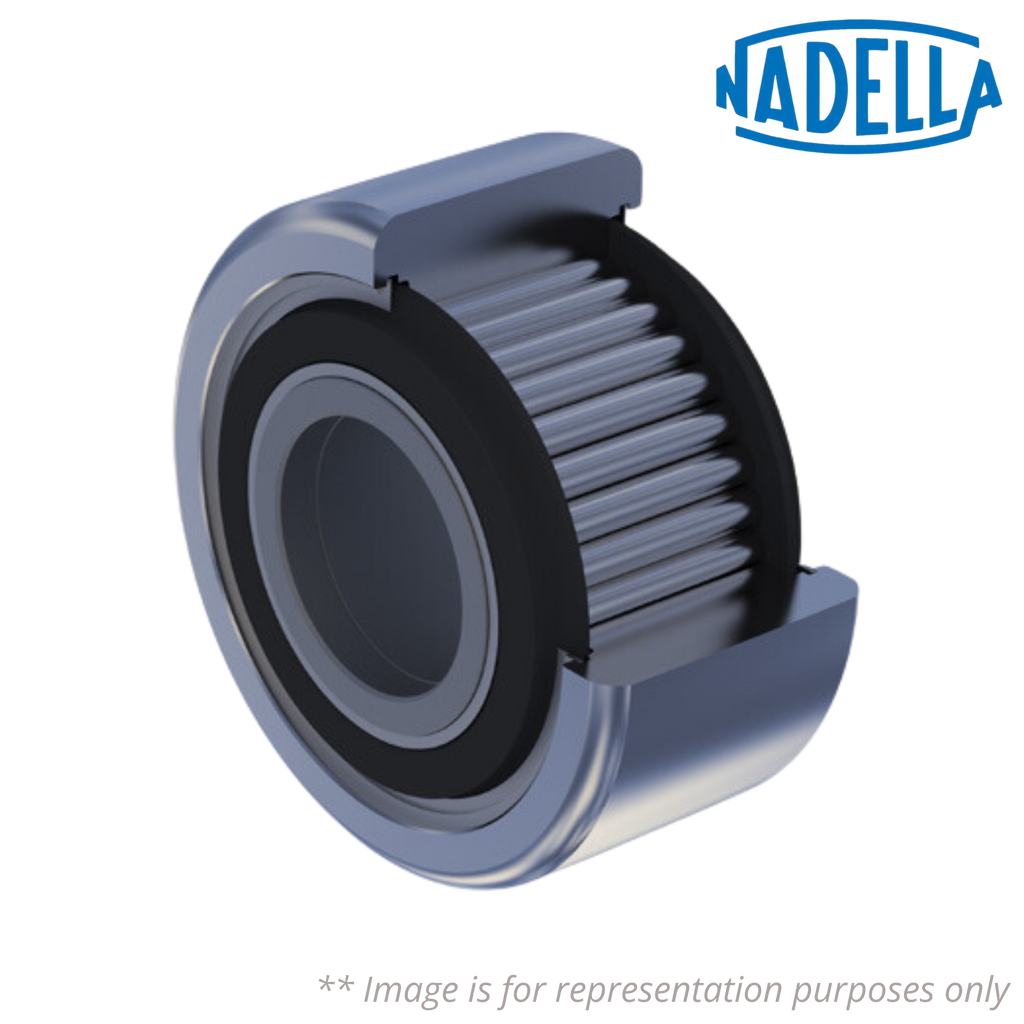

FG 35 72 EEM NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FG 35 72 EEM NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG3572EEM

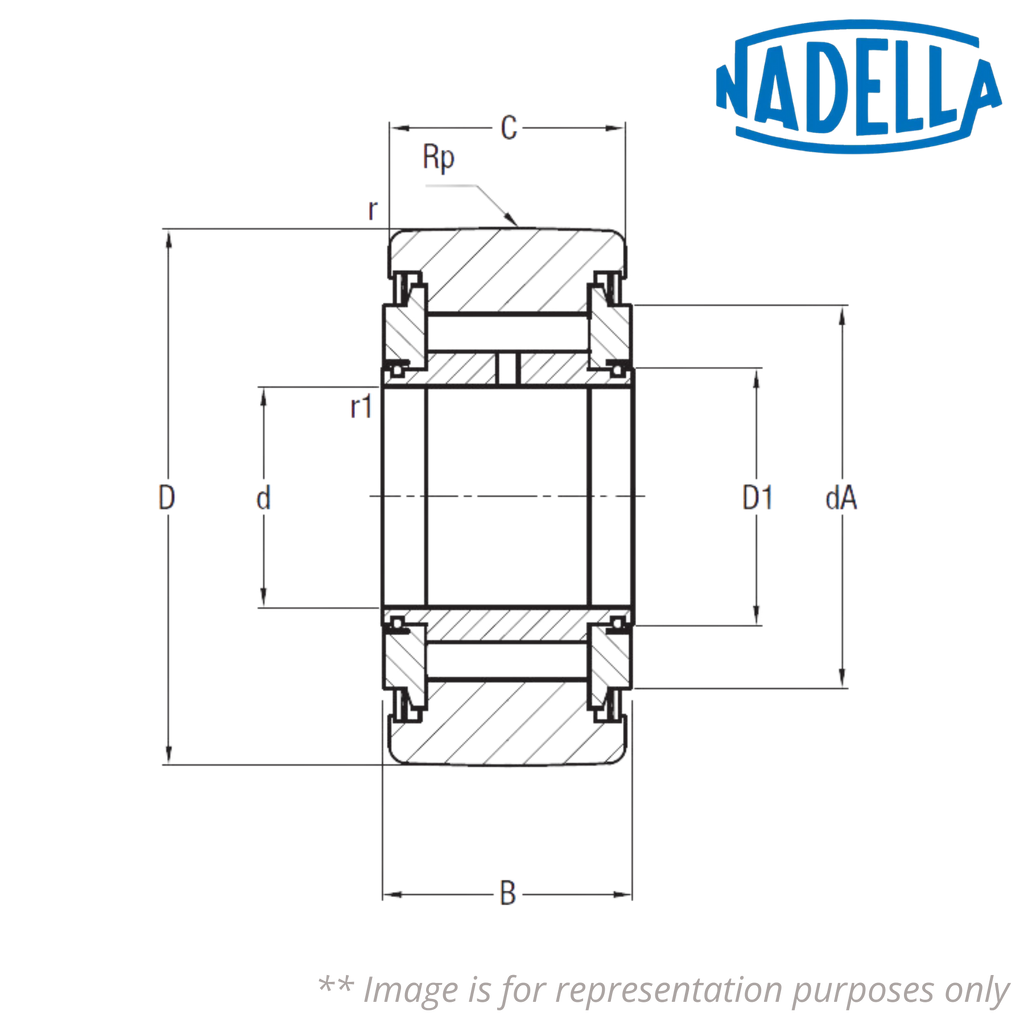

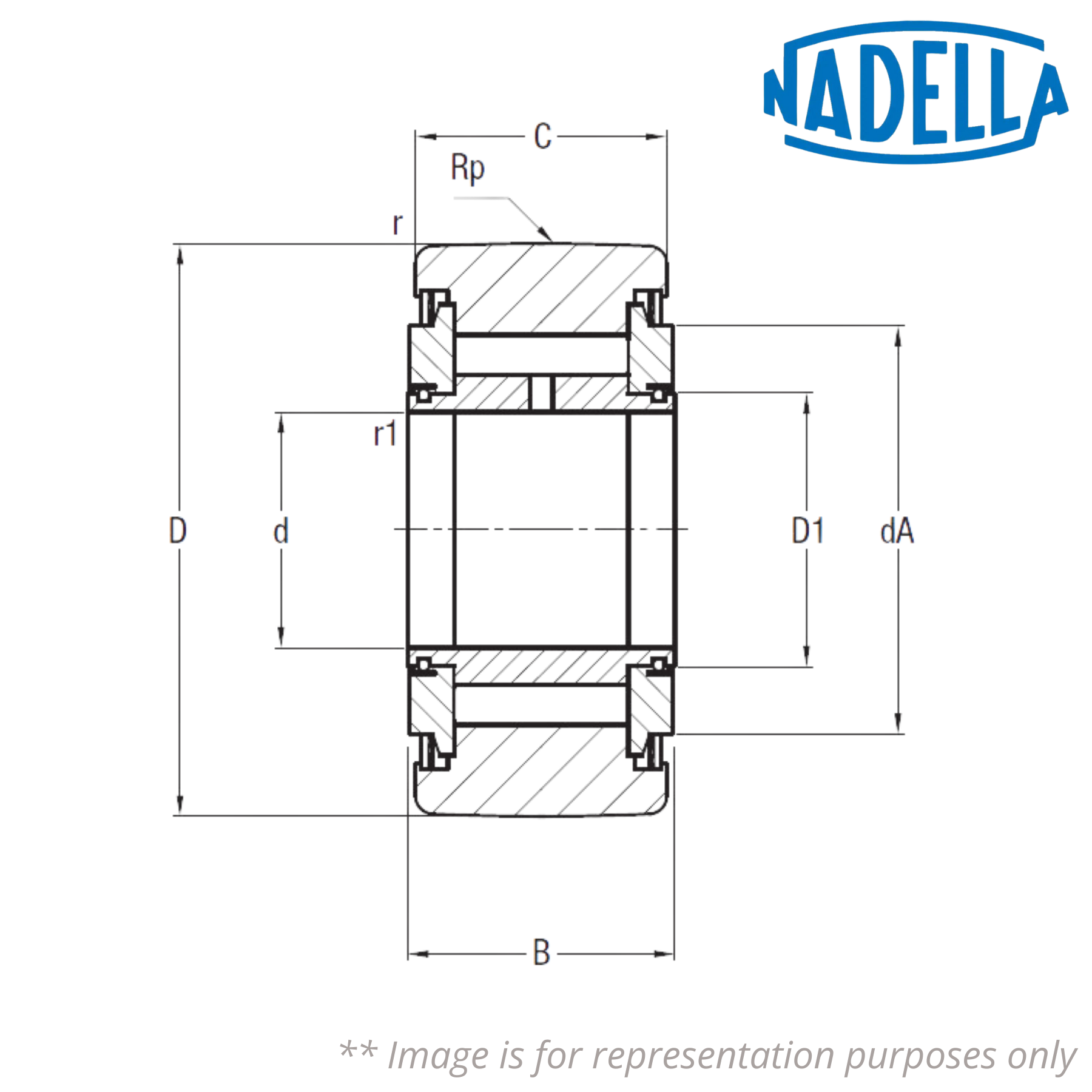

Outer Diameter (D) mm - 72
Recommended Diameter for Pivot (d) mm - 35
B (mm) - 29
C (mm) - 28
D1 (mm) - 39.9
Minimum Recommended Abutment Support Diameter (dA) mm - 45
r (mm) - 1
r1 (mm) - 0.6
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) mm - 1500
Load Coefficient (Cw) N - 43000
Dynamic Load Coefficient (Fr) N - 56000
Static Load Coefficient (For) N - 87000
Speed Limit with Grease (min-1) - 1000
Weight (kg) - 0.67
FG - Cam Follower without Stud with Optimised Outer Profile Ring
Seal - With Metal Seal
