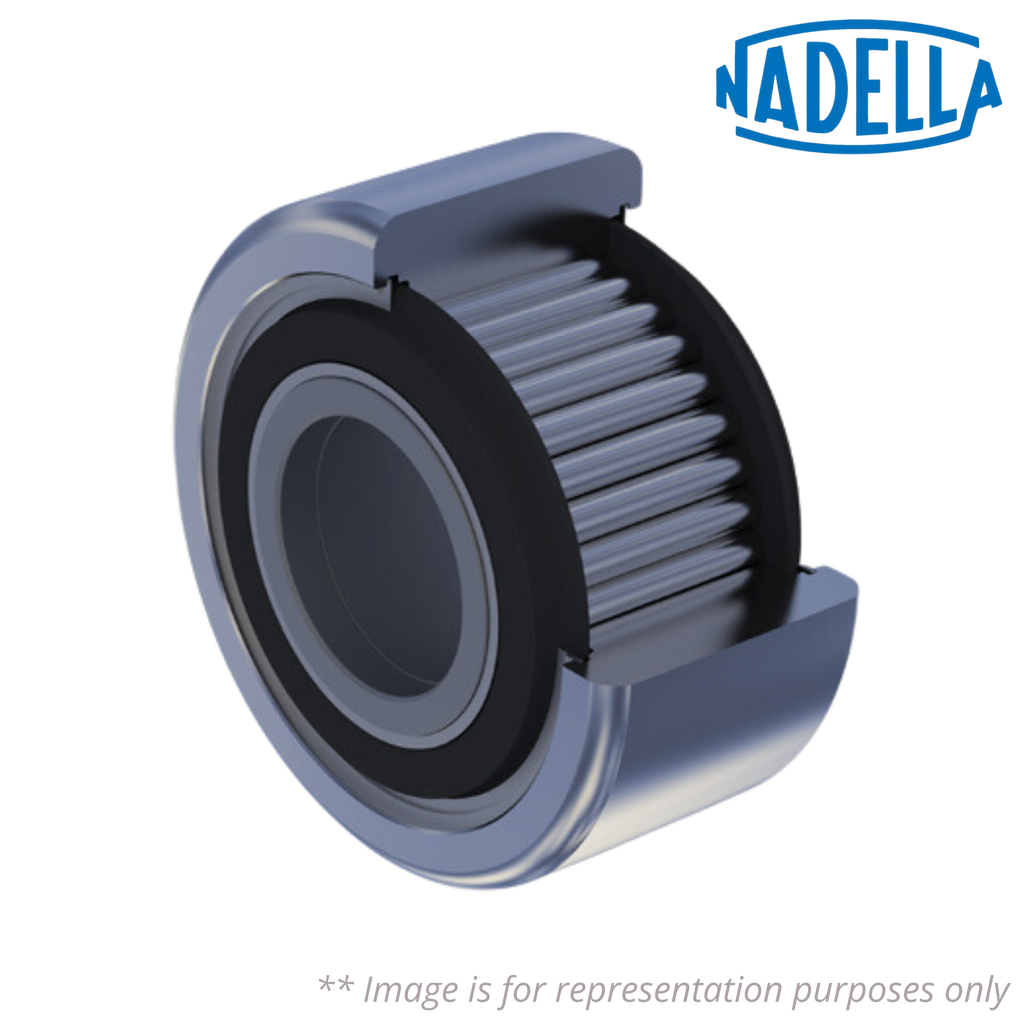

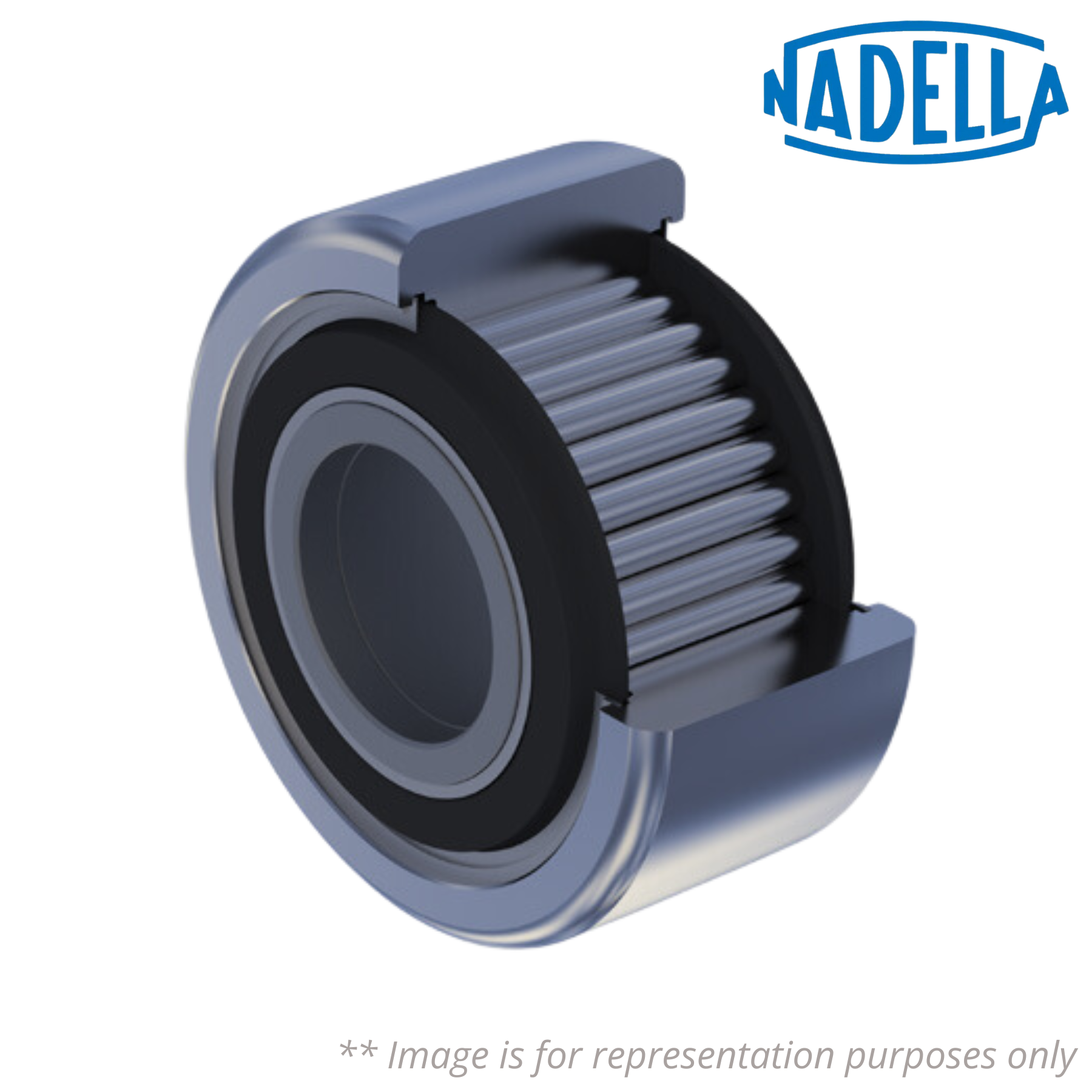

FG 40 80 EEM SW NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FG 40 80 EEM SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG4080EEMSW

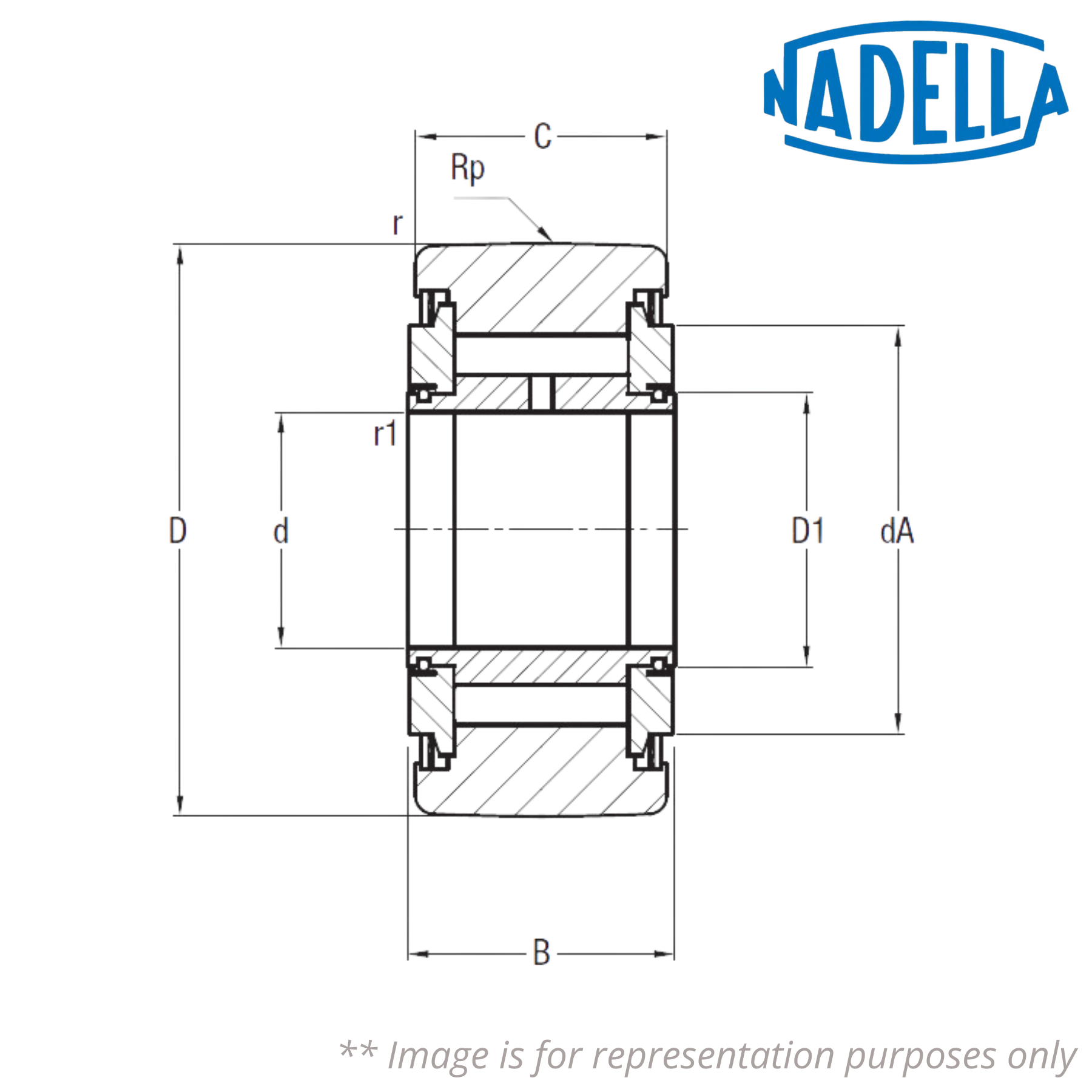

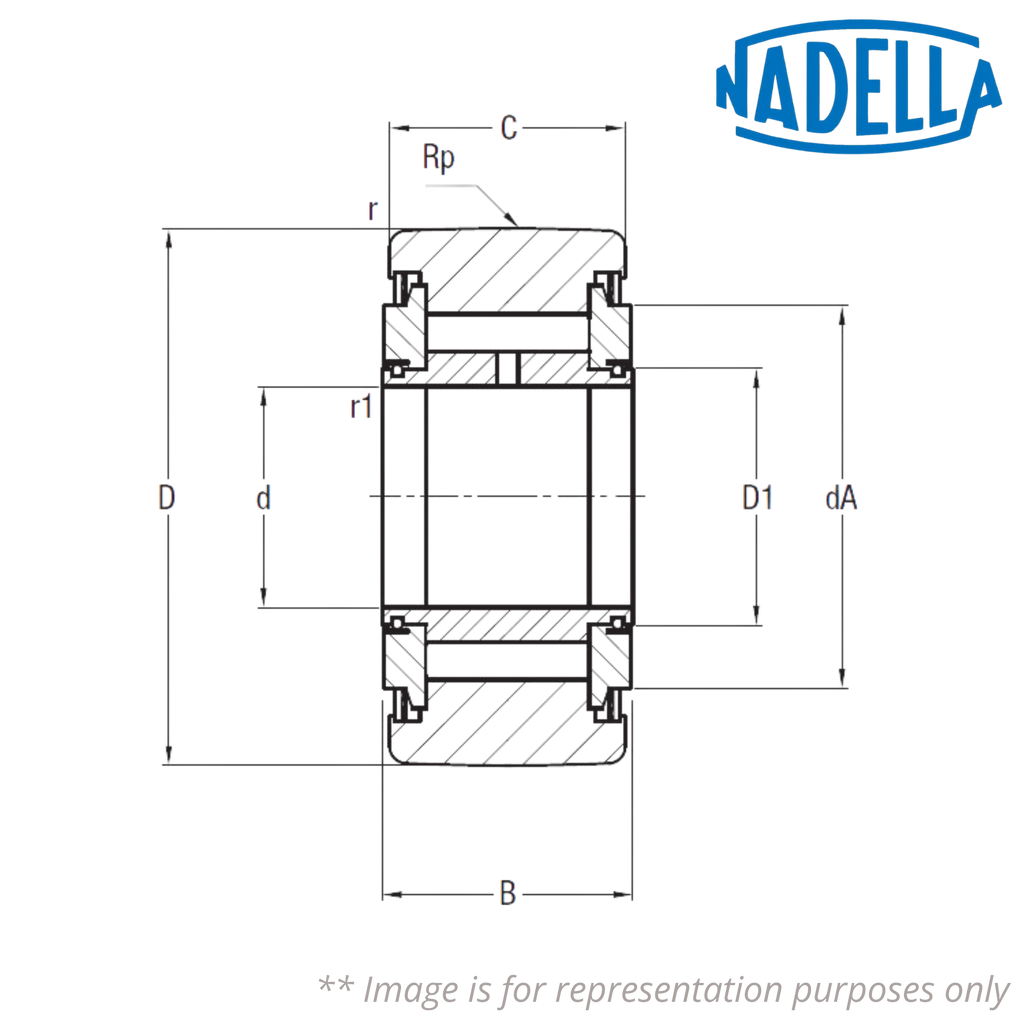

Outer Diameter (D) mm - 80
Recommended Diameter for Pivot (d) mm - 40
B (mm) - 32
C (mm) - 30
D1 (mm) - 46.6
Minimum Recommended Abutment Support Diameter (dA) mm - 61.1
r (mm) - 1
r1 (mm) - 0.6
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) mm - 1700
Load Coefficient (Cw) N - 52000
Dynamic Load Coefficient (Fr) N - 66000
Static Load Coefficient (For) N - 110000
Speed Limit with Grease (min-1) - 870
Weight (kg) - 0.89
FG - Cam Follower without Stud with Optimised Outer Profile Ring
Seal - With Metal Seal
