FG 5 16 EEM NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FG 5 16 EEM NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG516EEM

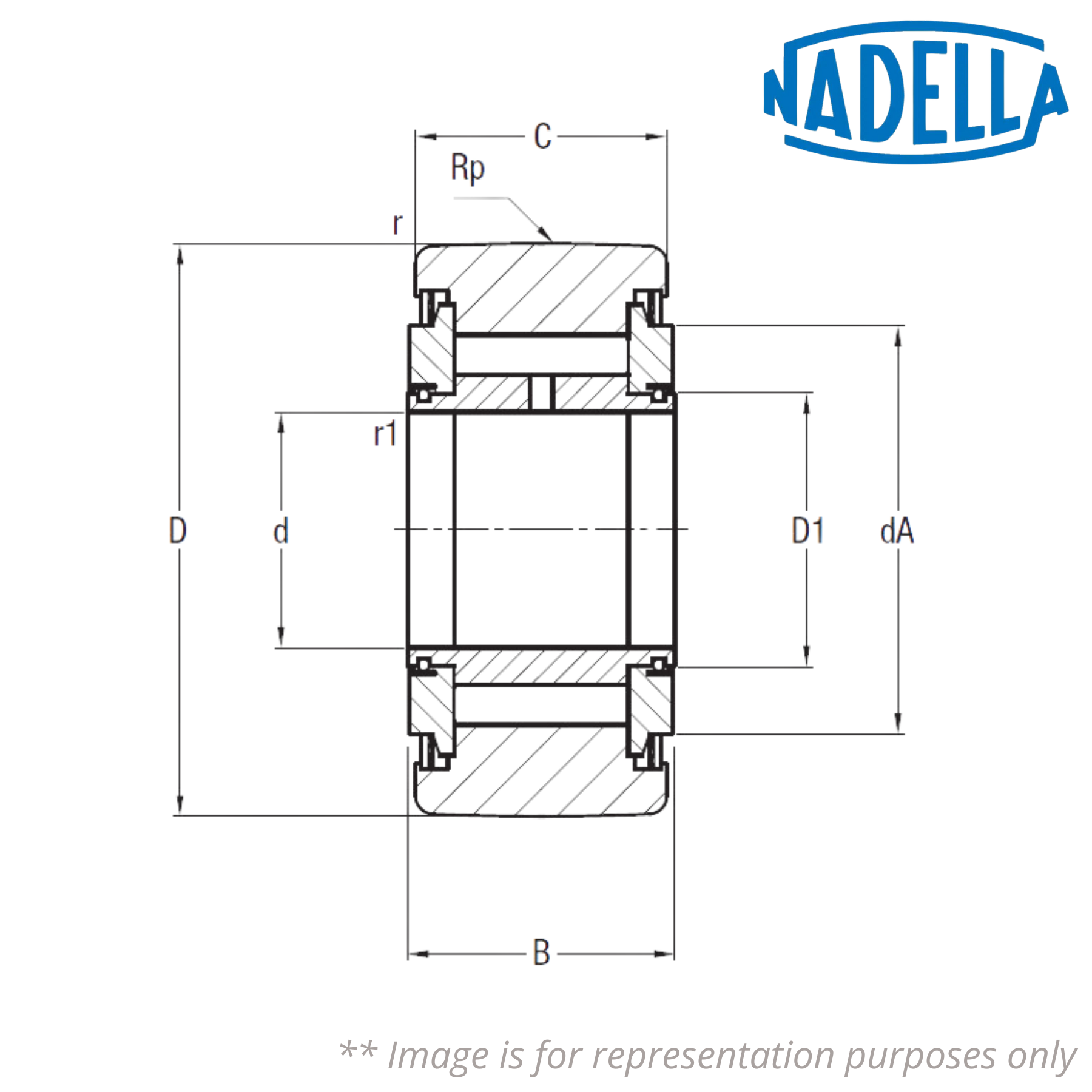

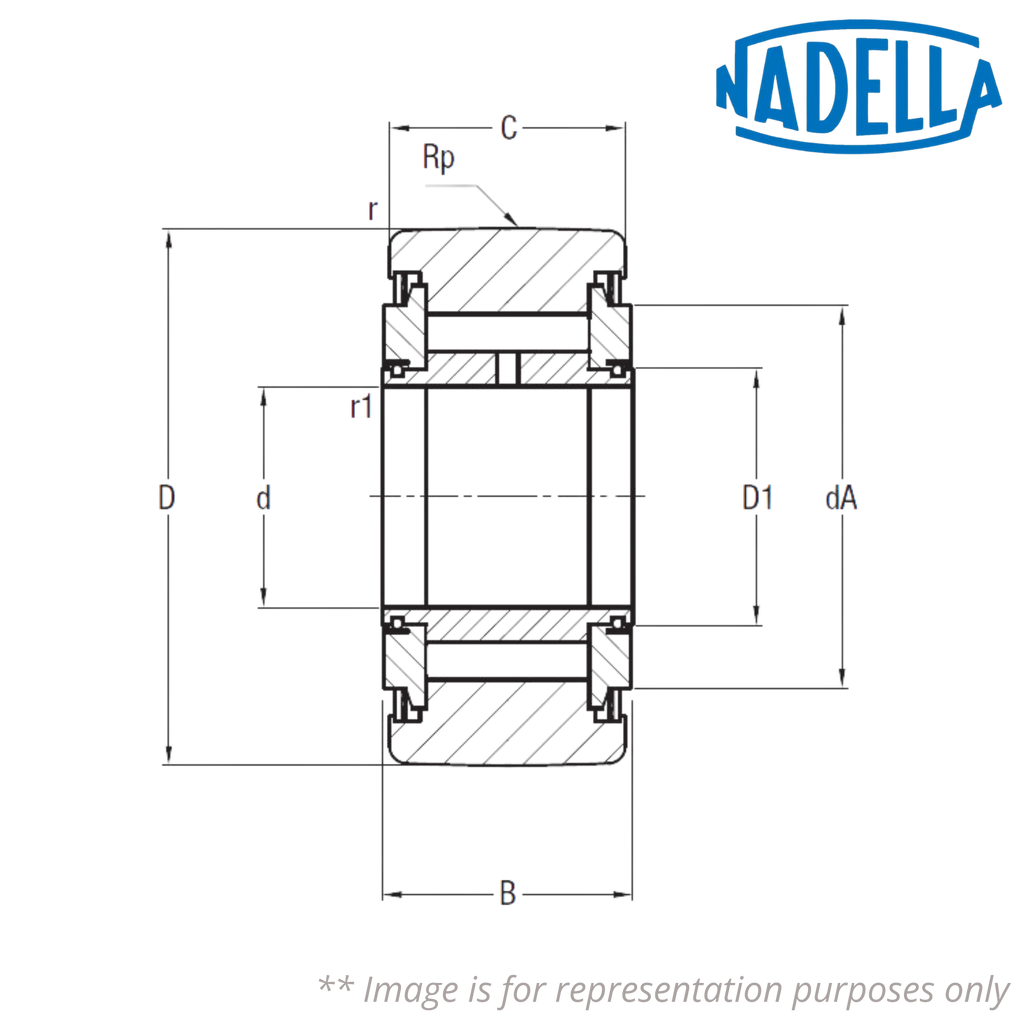

Outer Diameter (D) mm - 16
Recommended Diameter for Pivot (d) mm - 5
B (mm) - 12
C (mm) - 11
D1 (mm) - 7.1
Minimum Recommended Abutment Support Diameter (dA) mm - 10.4
r (mm) - 0.3
r1 (mm) - 0.3
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) mm - 500
Load Coefficient (Cw) N - 4900
Dynamic Load Coefficient (Fr) N - 4900
Static Load Coefficient (For) N - 5300
Speed Limit with Grease (min-1) - 5000
Weight (kg) - 0.016

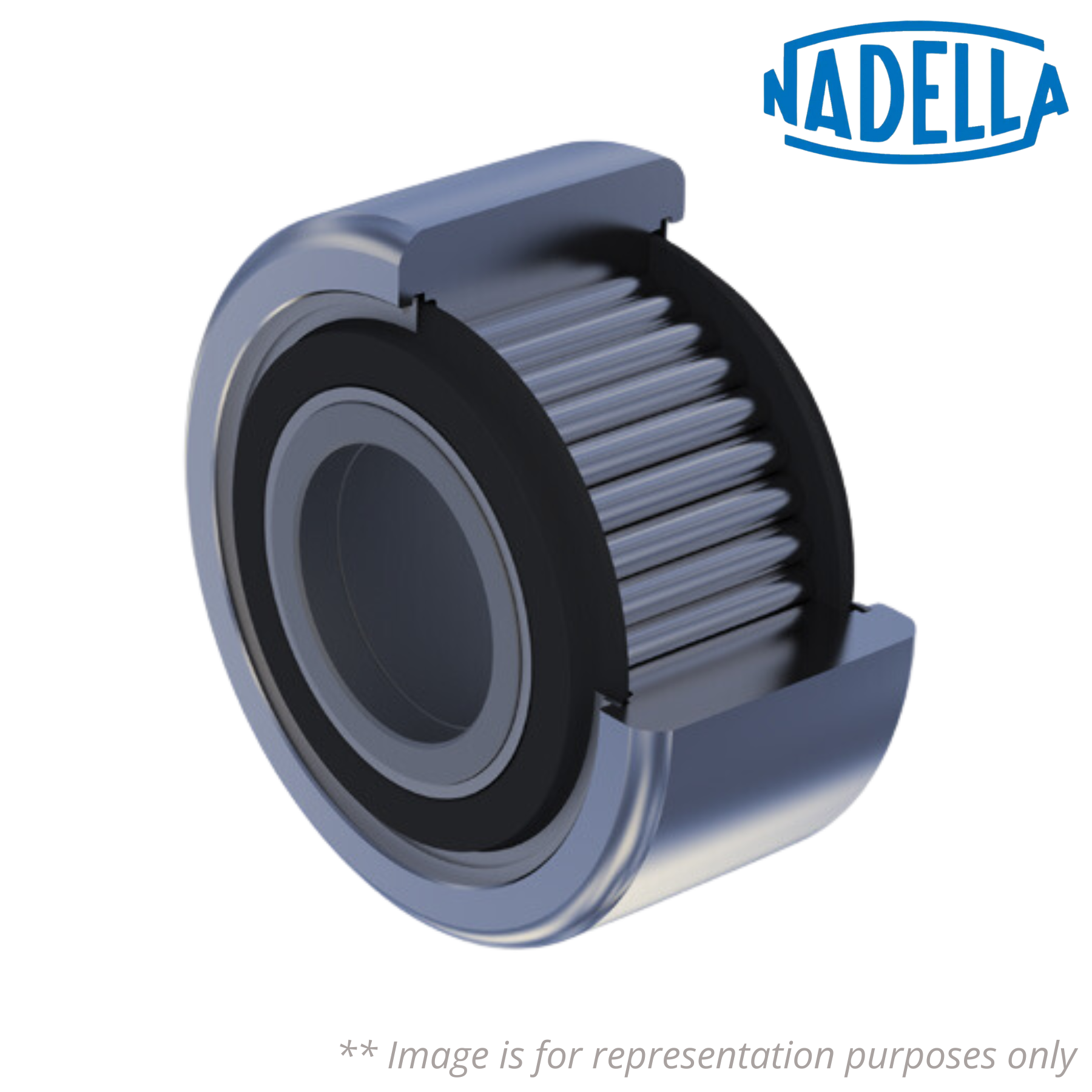

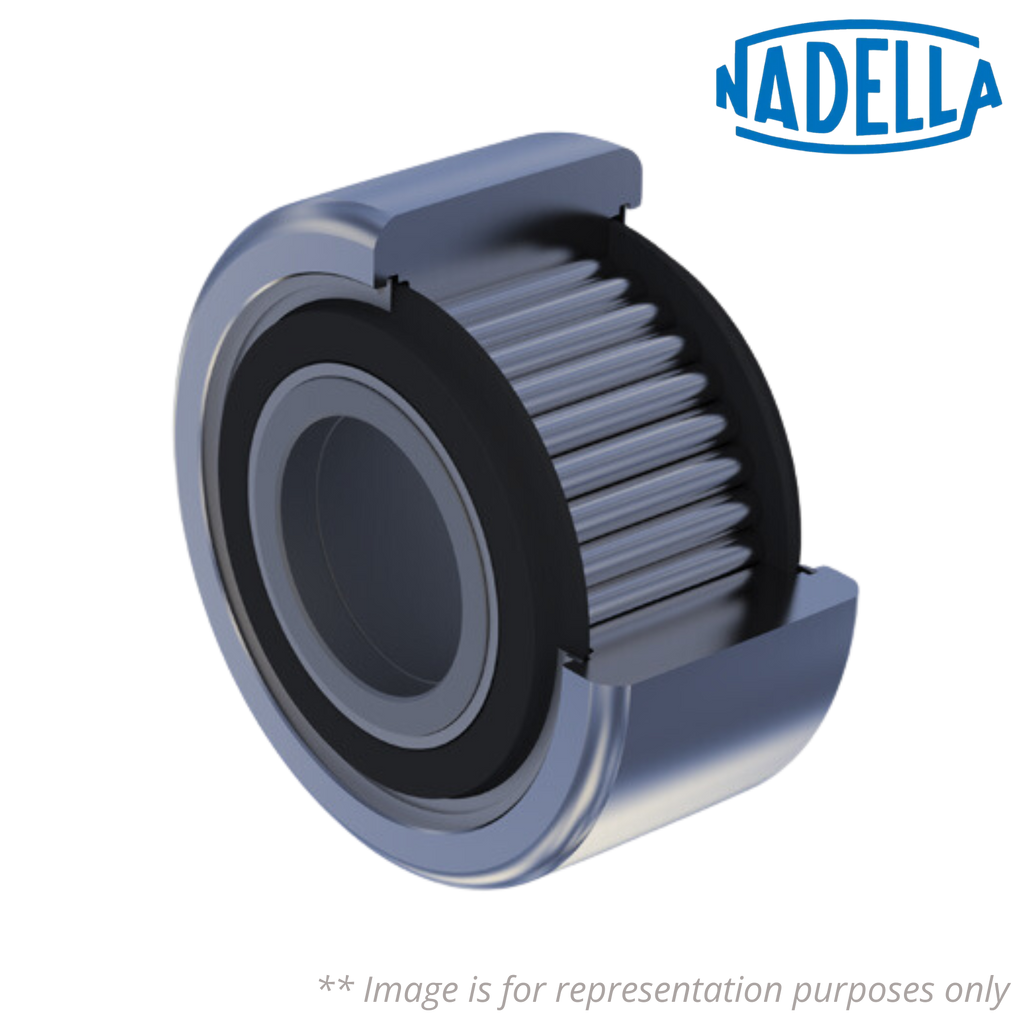

FG - Cam Follower without Stud with Optimised Outer Profile Ring
Seal - With Metal Seal
