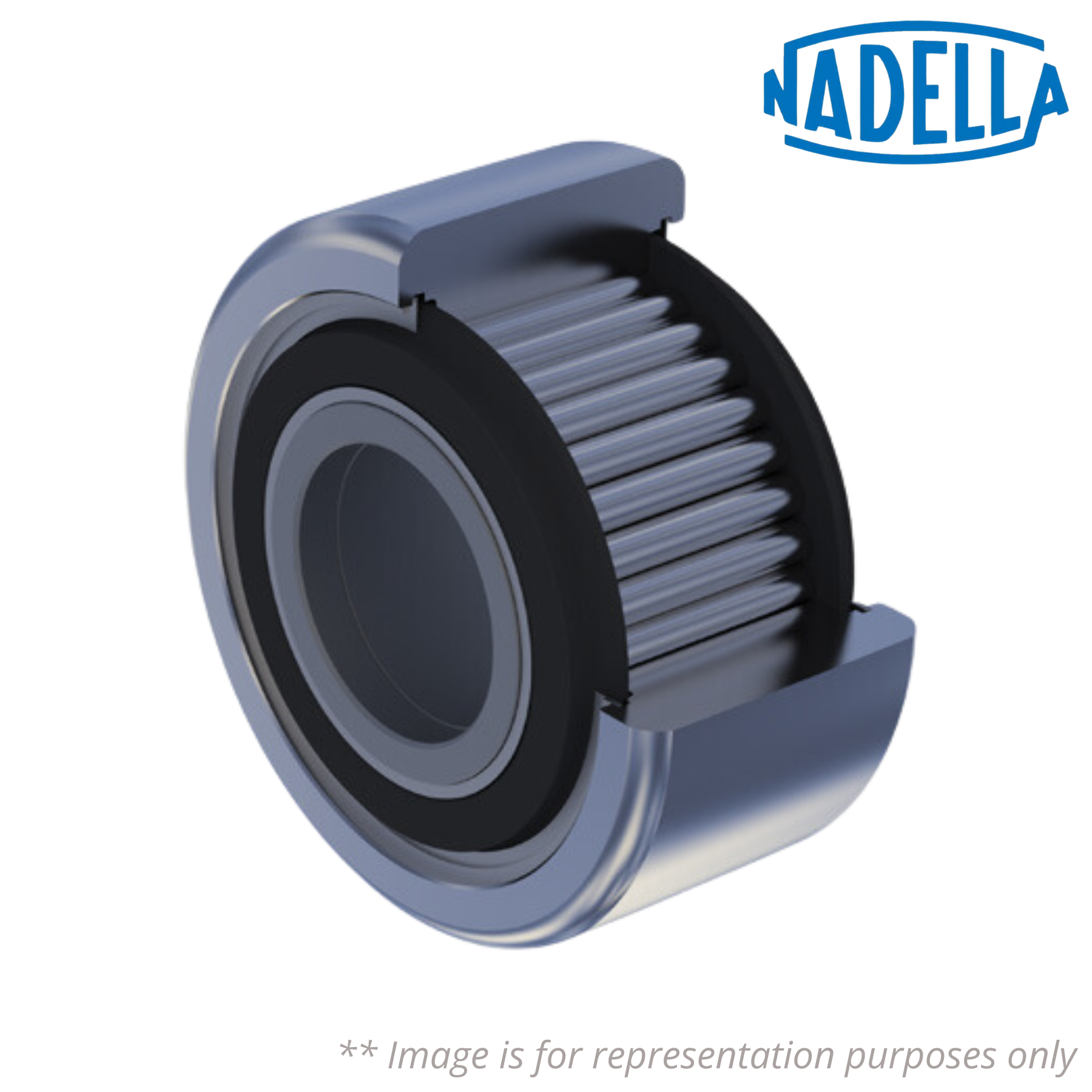

FG 6 19 EEM SW NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FG 6 19 EEM SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FG619EEMSW

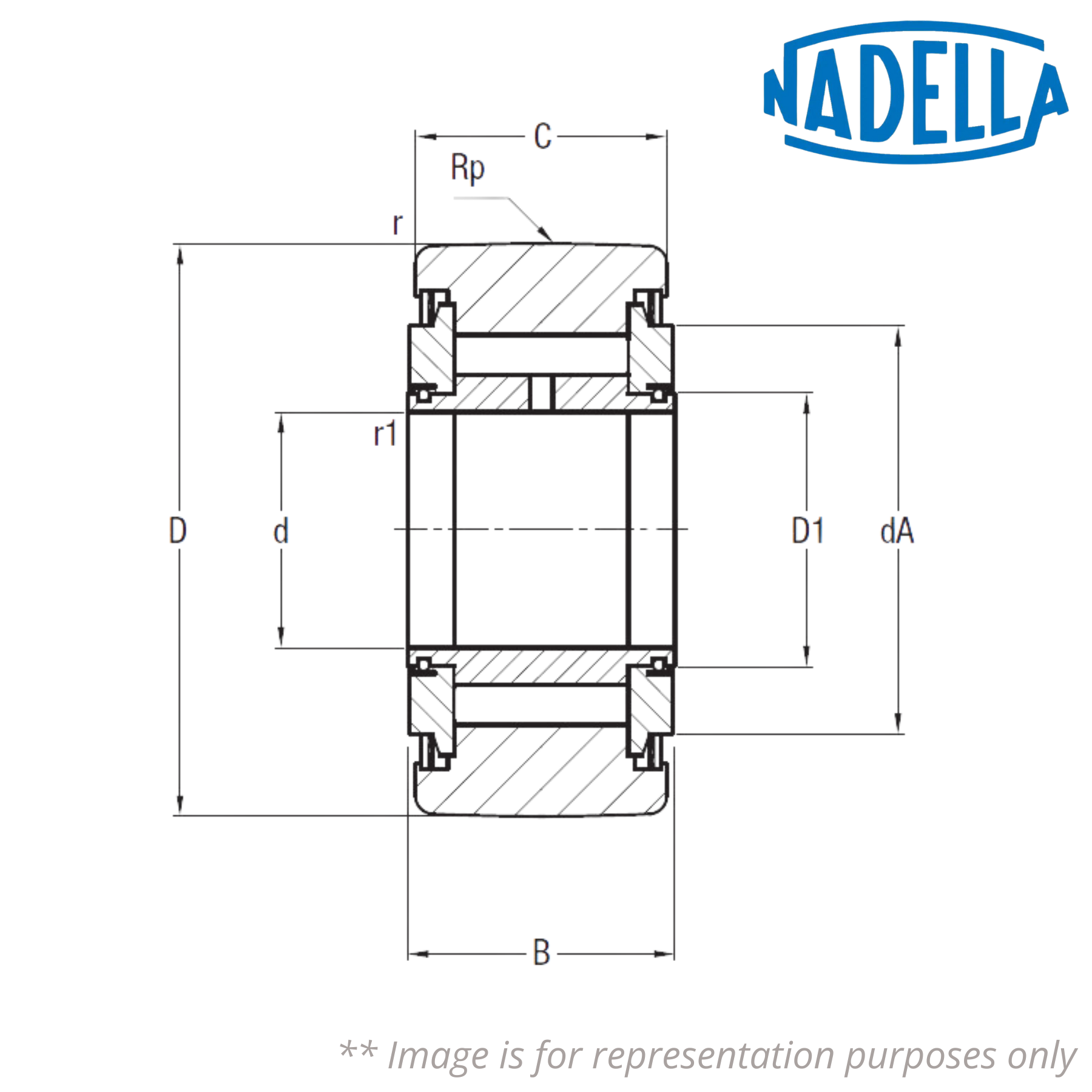

Outer Diameter (D) mm - 19
Recommended Diameter for Pivot (d) mm - 6
B (mm) - 12
C (mm) - 11
D1 (mm) - 8.1
Minimum Recommended Abutment Support Diameter (dA) mm - 12.6
r (mm) - 0.3
r1 (mm) - 0.3
Convex Radius in the Central Part to Contact Pressure Calculation (Rp) mm - 500
Load Coefficient (Cw) N - 5600
Dynamic Load Coefficient (Fr) N - 5800
Static Load Coefficient (For) N - 6600
Speed Limit with Grease (min-1) - 4100
Weight (kg) - 0.019
FG - Cam Follower without Stud with Optimised Outer Profile Ring
Seal - With Metal Seal
