FGL 120 215 EEM NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FGL 120 215 EEM NADELLA
Category - Full Complement Needle Rollers
Also Known As - FGL120215EEM

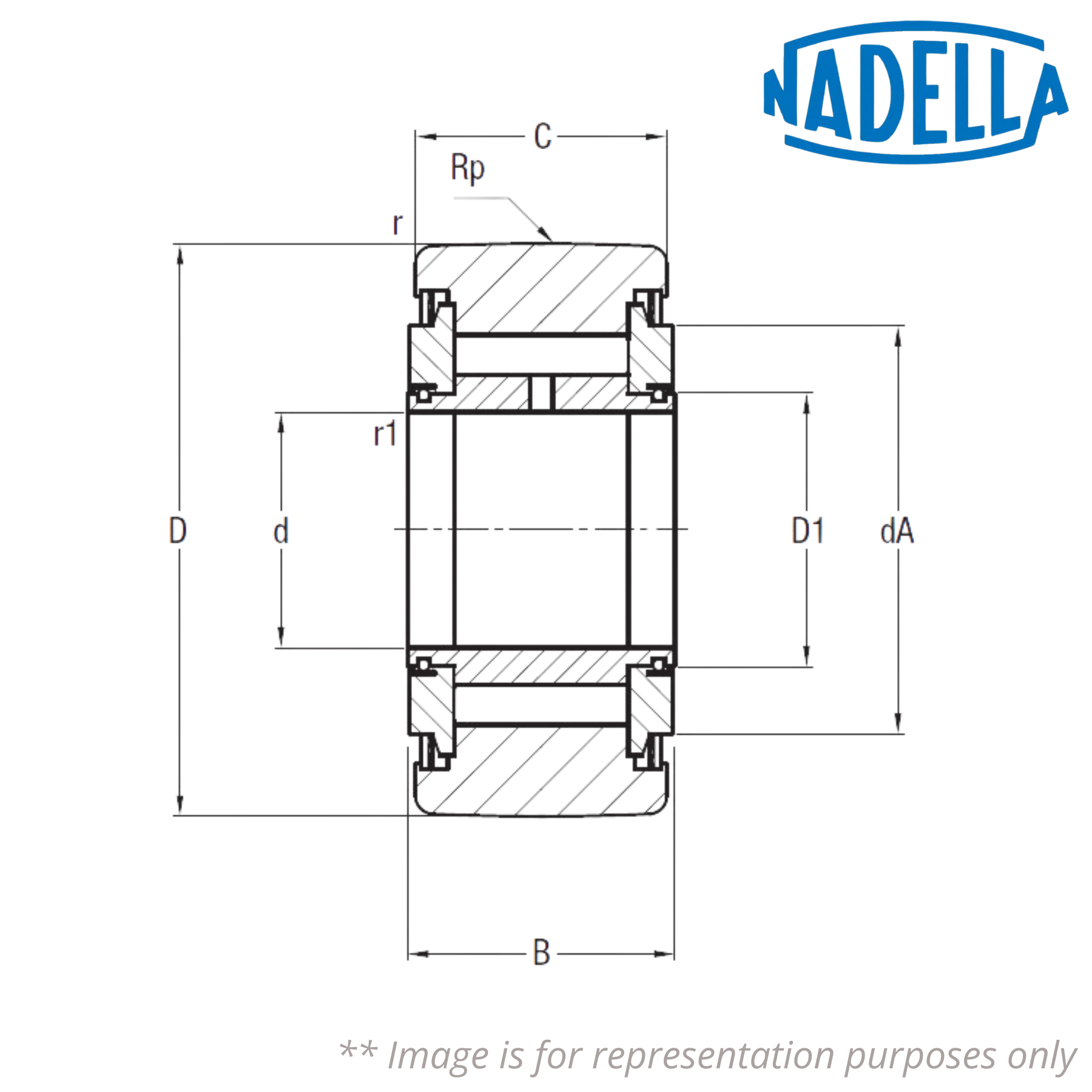

Outer Diameter (D) mm - 215
Recommended Diameter for Pivot (d) mm - 120
B (mm) - 65
C (mm) - 63
D1 (mm) - 130.1
Minimum Recommended Abutment Support Diameter (dA) mm - 145
r (mm) - 2
r1 (mm) - 1.5
Load Coefficient (Cw) N - 220000
Dynamic Load Coefficient (Fr) N - 460000
Static Load Coefficient (For) N - 620000
Speed Limit with Grease (min-1) - 320
Weight (kg) - 11.5
FGL - Cam Follower with Cylindrical Outer Ring
Seal - With Metal Seal
