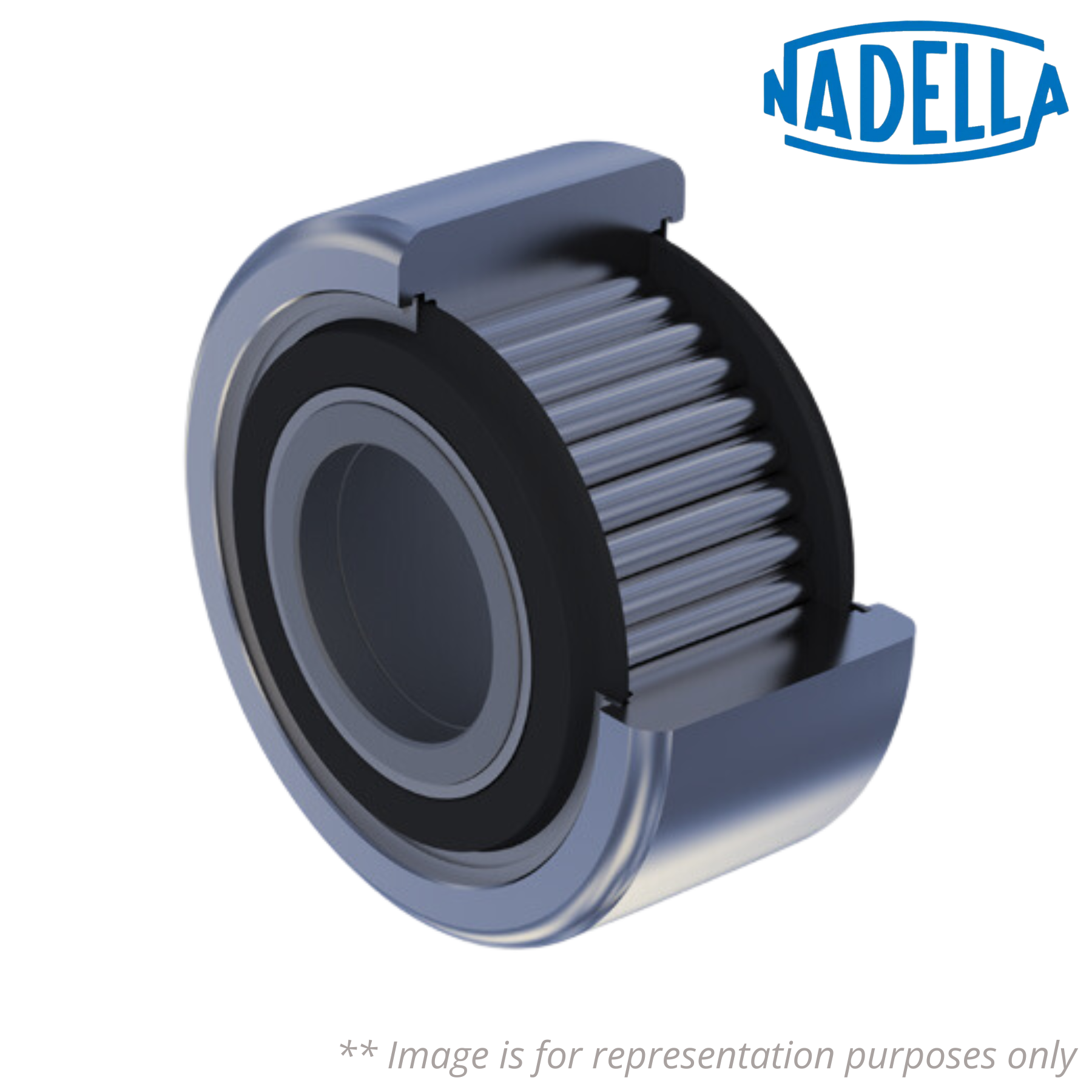

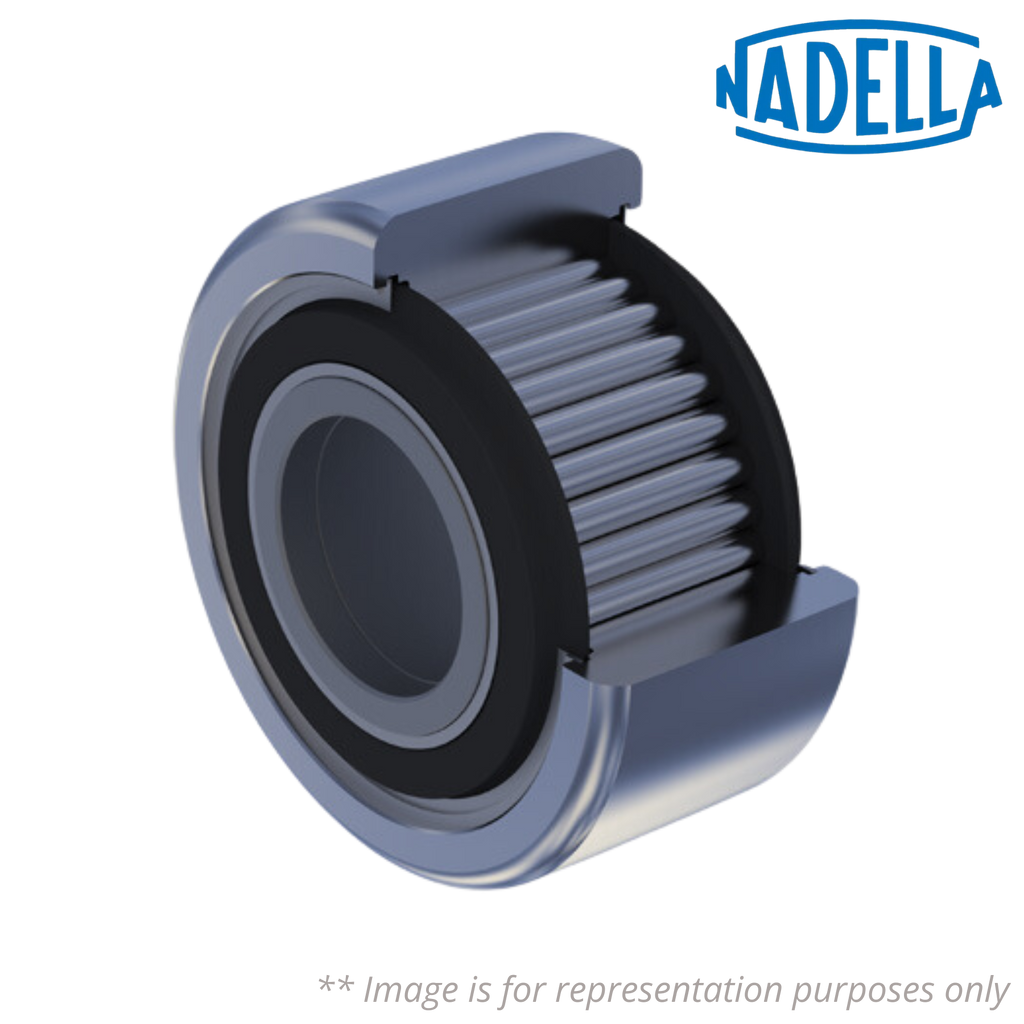

FGL 5 16 EEM NADELLA

NADELLA

Download Data Sheet

Country Of Origin: ITALY

Variant

Price:

₹ 100.00 ₹ 200.00

Quantity:

Share this product

Brand - NADELLA
Item Number - FGL 5 16 EEM NADELLA
Category - Full Complement Needle Rollers
Also Known As - FGL516EEM

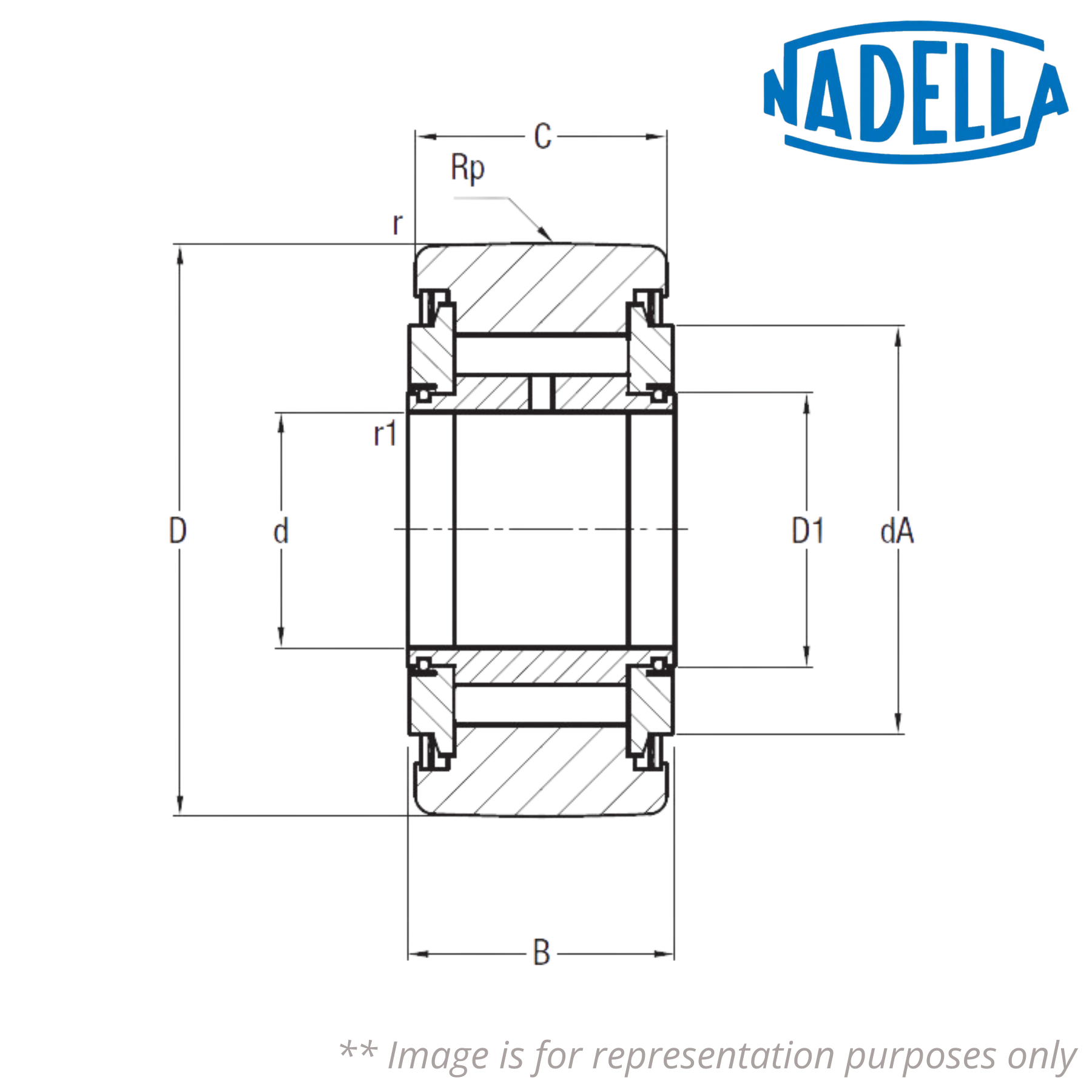

Outer Diameter (D) mm - 16
Recommended Diameter for Pivot (d) mm - 5
B (mm) - 12
C (mm) - 11
D1 (mm) - 7.1
Minimum Recommended Abutment Support Diameter (dA) mm - 10.4
r (mm) - 0.3
r1 (mm) - 0.3
Load Coefficient (Cw) N - 4900
Dynamic Load Coefficient (Fr) N - 4900
Static Load Coefficient (For) N - 5300
Speed Limit with Grease (min-1) - 5000
Weight (kg) - 0.016
FGL - Cam Follower with Cylindrical Outer Ring
Seal - With Metal Seal
