FGL 8 24 15 EEM SW NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FGL 8 24 15 EEM SW NADELLA
Category - Full Complement Needle Rollers
Also Known As - FGL82415EEMSW

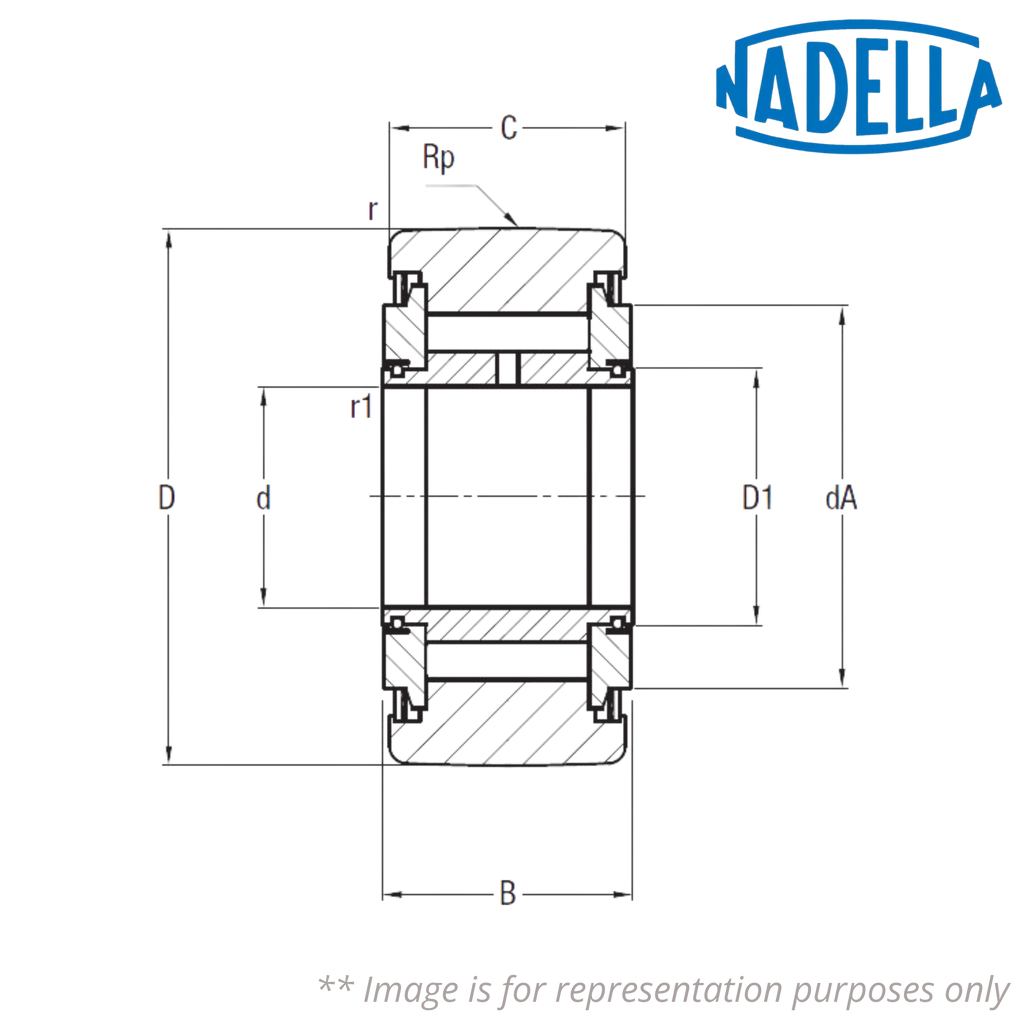

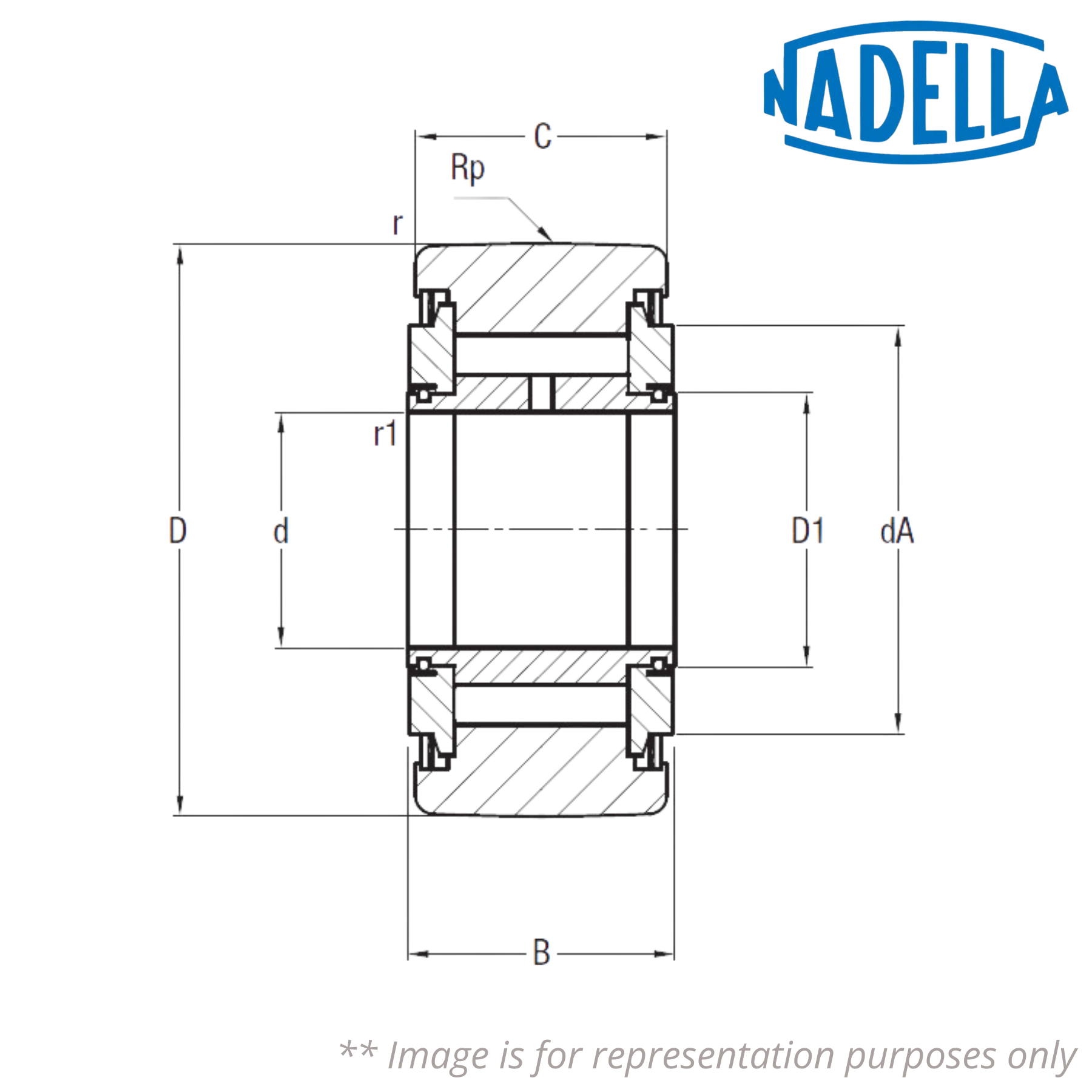

Outer Diameter (D) mm - 24
Recommended Diameter for Pivot (d) mm - 8
B (mm) - 15
C (mm) - 14
D1 (mm) - 10.8
Minimum Recommended Abutment Support Diameter (dA) mm - 15.5
r (mm) - 0.3
r1 (mm) - 0.3
Load Coefficient (Cw) N - 9200
Dynamic Load Coefficient (Fr) N - 13000
Static Load Coefficient (For) N - 13000
Speed Limit with Grease (min-1) - 3400
Weight (kg) - 0.044

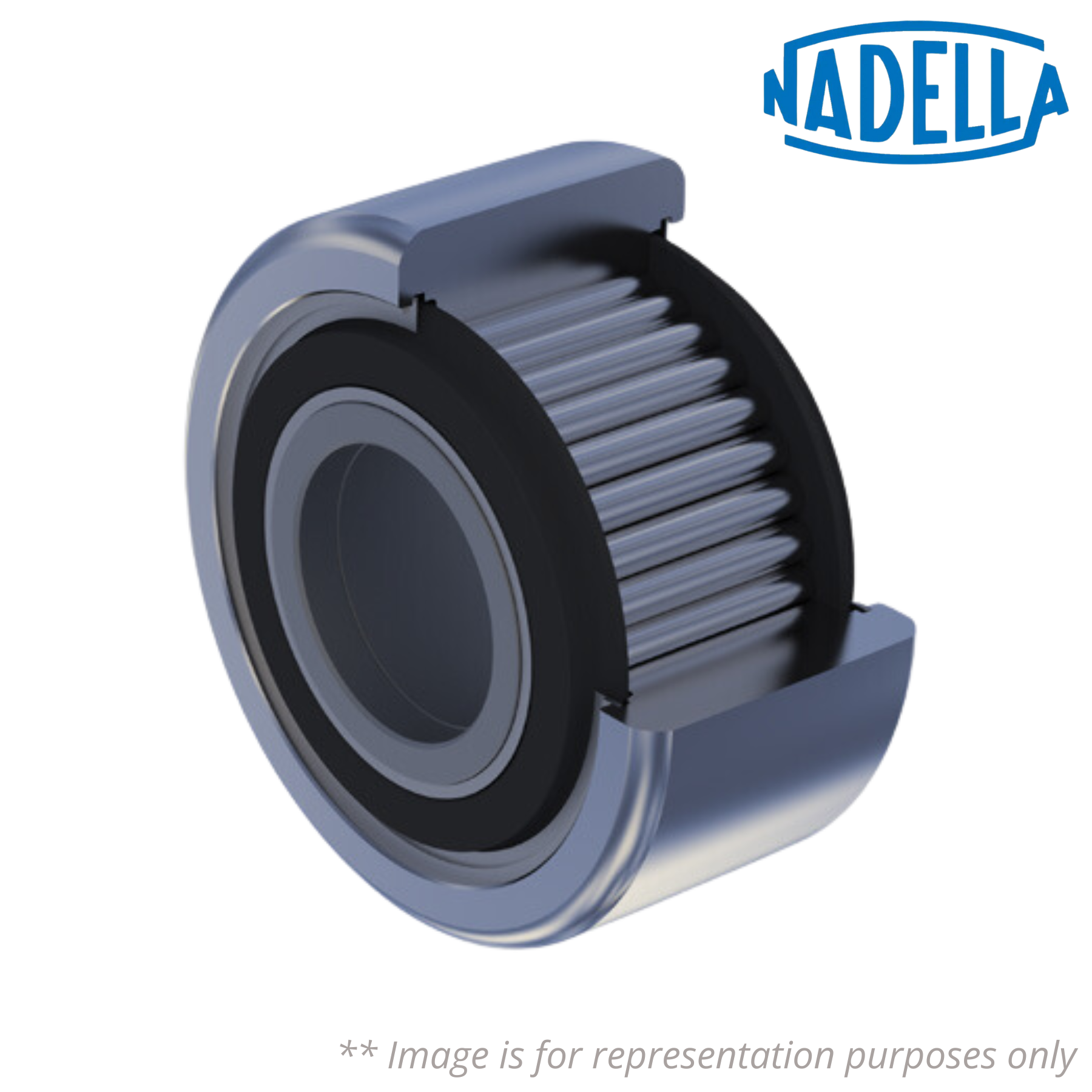

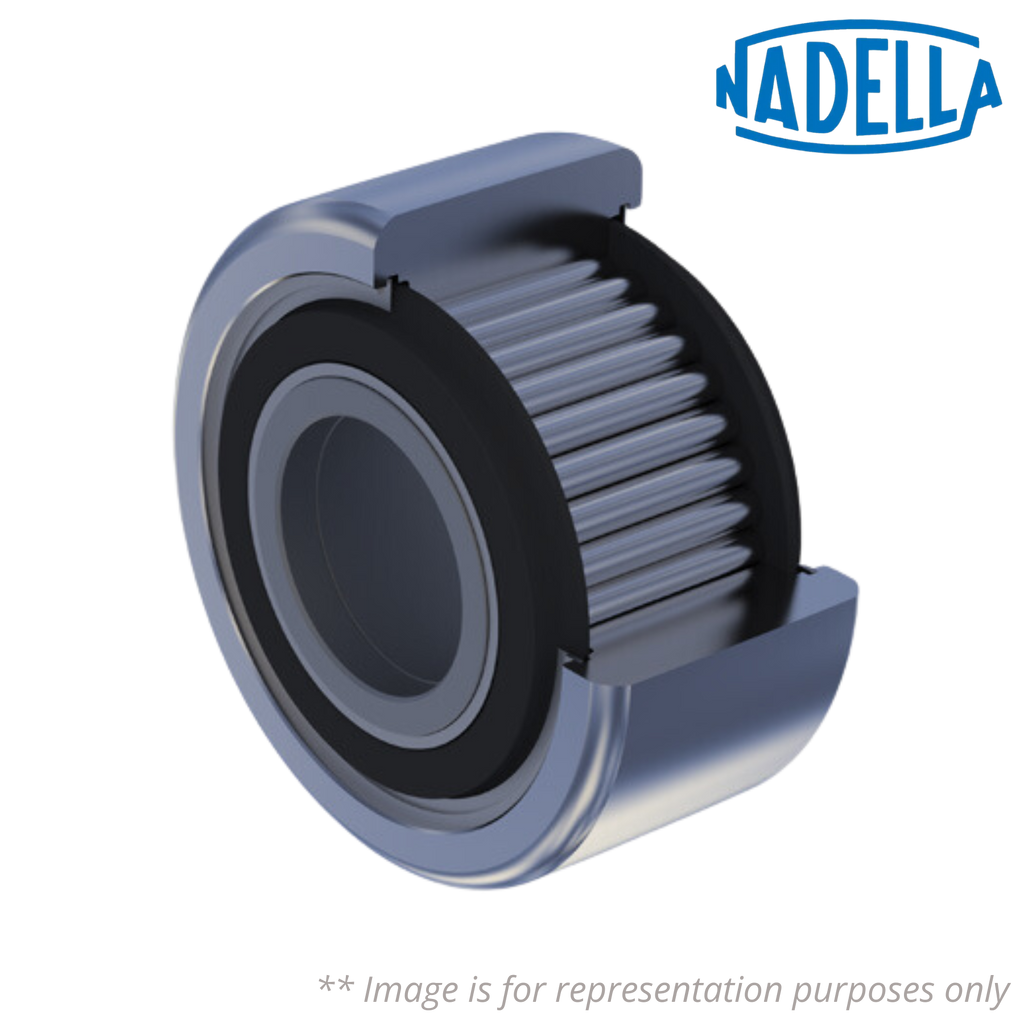

FGL - Cam Follower with Cylindrical Outer Ring
Seal - With Metal Seal
