FGU 110 200 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FGU 110 200 NADELLA
Category - Full Complement Needle Rollers Light Weight
Also Known As - FGU110200
Outer Diameter (D) mm - 200
Recommended Diameter for Pivot (d) mm - 110
B (mm) - 65
C (mm) - 63
D1 (mm) - 122
Minimum Recommended Abutment Support Diameter (dA) mm - 137
r (mm) - 3
r1 (mm) - 1.5
Convex Radius (R) mm - 1400
Load Coefficient (Cw) N - 260000
Dynamic Load Coefficient (Fr) N - 290000
Static Load Coefficient (For) N - 470000
Speed Limit with Grease (min-1) - 390
Weight (kg) - 10.343

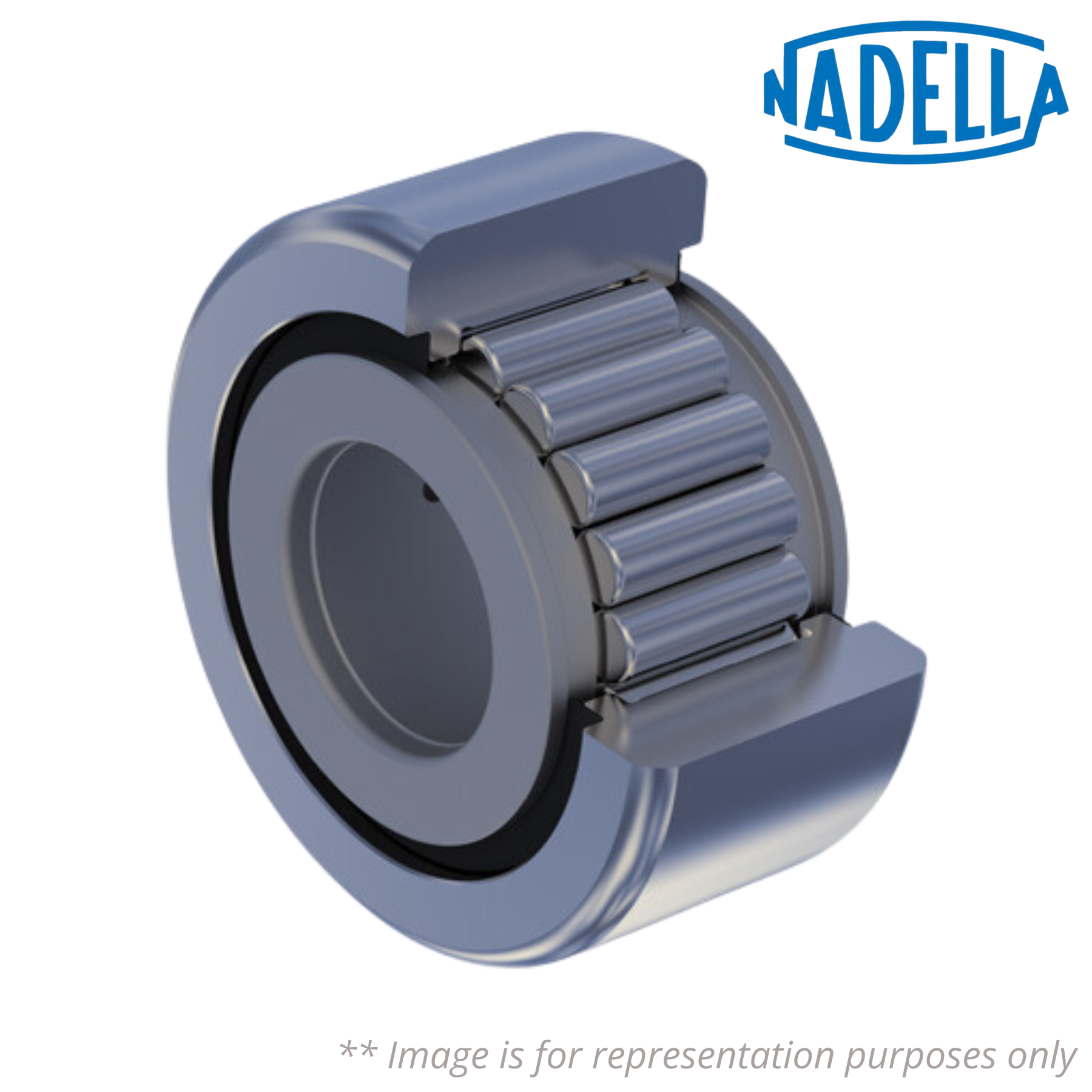

FGU - Cam Follower without Stud with Optimised Outer Profile Ring
Seal - No Seal
