FGU 50 90 MM NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FGU 50 90 MM NADELLA
Category - Full Complement Needle Rollers Light Weight
Also Known As - FGU5090MM

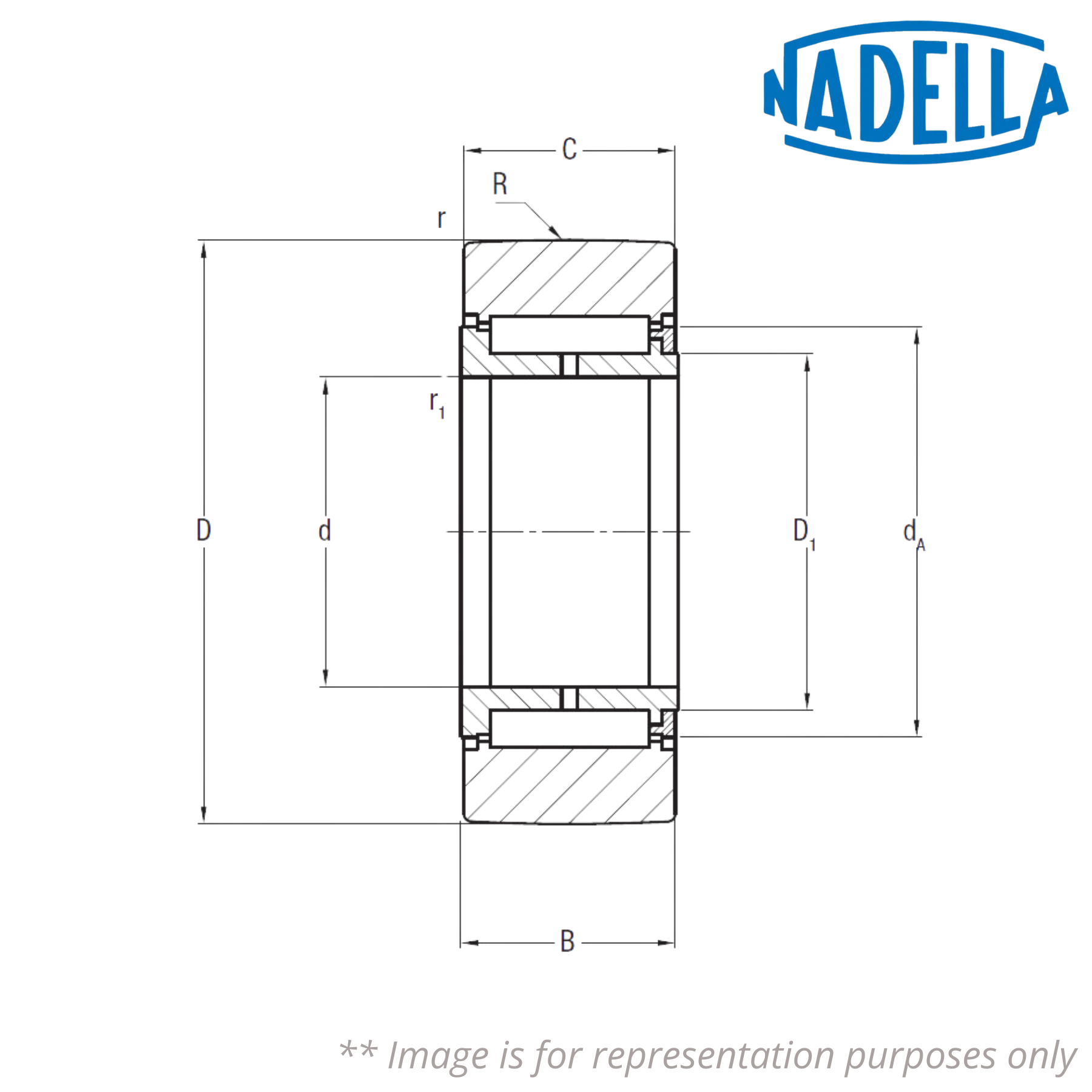

Outer Diameter (D) mm - 90
Recommended Diameter for Pivot (d) mm - 50
B (mm) - 32
C (mm) - 30
D1 (mm) - 59.5
Minimum Recommended Abutment Support Diameter (dA) mm - 68.8
r (mm) - 1.5
r1 (mm) - 0.6
Convex Radius (R) mm - 800
Load Coefficient (Cw) N - 61000
Dynamic Load Coefficient (Fr) N - 38000
Static Load Coefficient (For) N - 62000
Speed Limit with Grease (min-1) - 830
Weight (kg) - 0.963

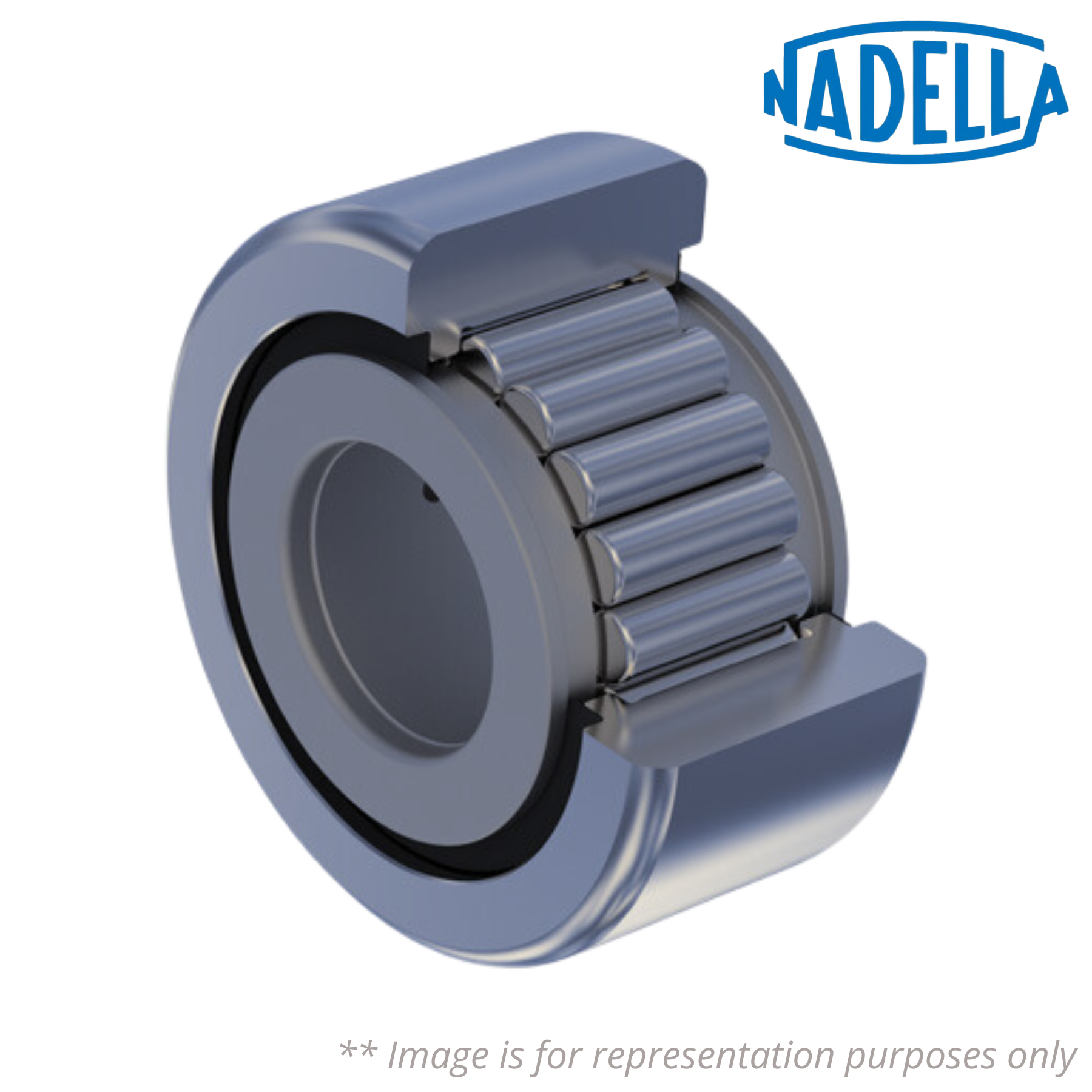

FGU - Cam Follower without Stud with Optimised Outer Profile Ring
MM - With Metal Seal
