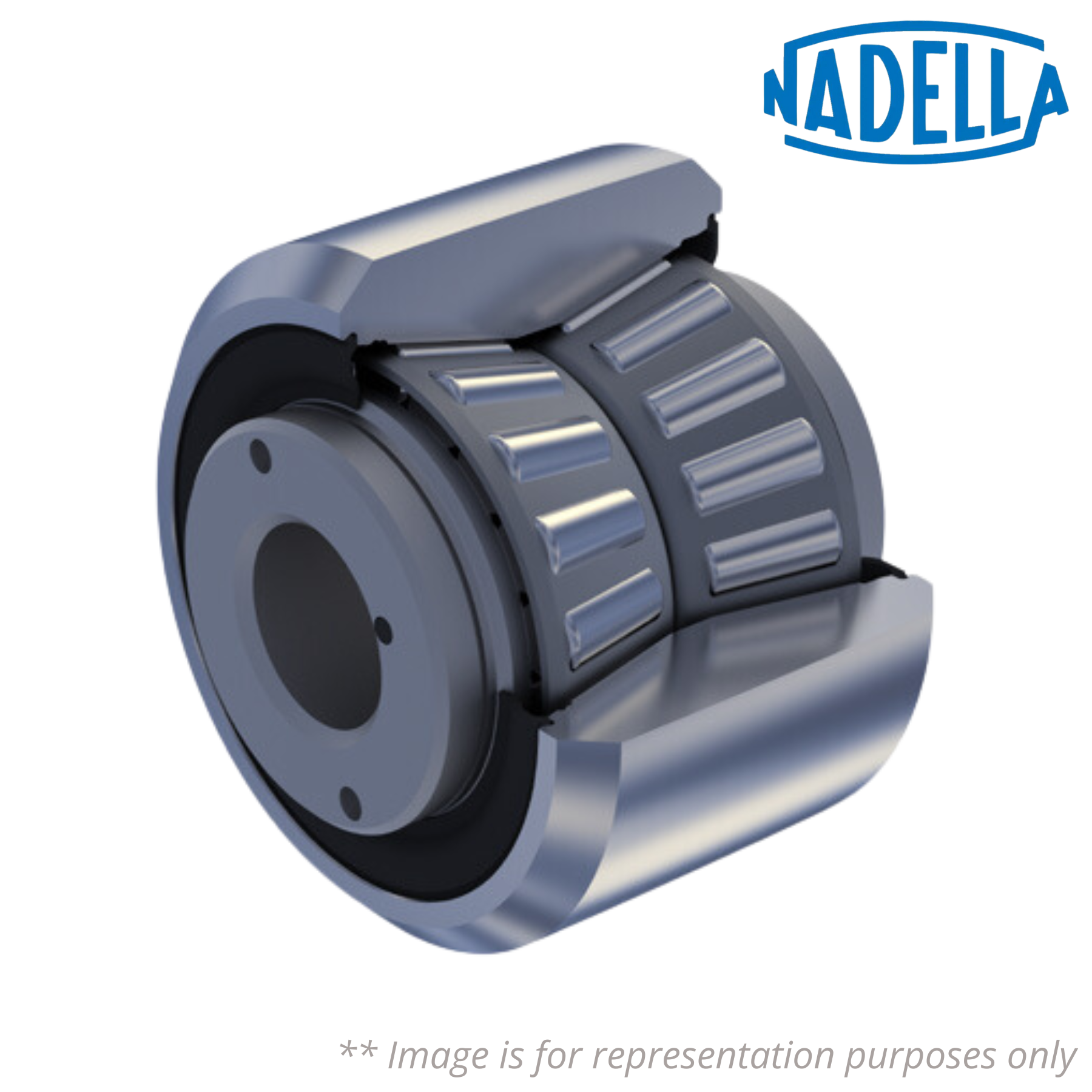

FK 62CNX NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - FK 62CNX NADELLA
Category - Guide Wheels with Tapered Roller Bearing
Also Known As - FK62CNX
Outer Diameter (D) mm - 62
Recommended Tolerance of the Clamping Pivot (d) mm - 20
B (mm) - 45
A (mm) - 37
C (mm) - 29
M (mm) - 29
F (mm) - 3
d2 (mm) * - 35
R (mm) - 800
Load Coefficient of the Calculation for the Duration with Base 1 Million Revs (Cw) N - 39000
Coefficient of the Calculation for the Duration with Base 100 km (Cw) N - 48000
Dynamic Load Limit (Fr) N - 22100
Static Load Limit (For) N - 40000
Weight (kg) - 0.6
NX - Guide Rollers with External Parts with stainless Steel

* To Prevent Rotation Between Roller and Shaft a Pin can be Fitted in One of the Holes “d2” Positioned in the Side Flange
