Description
Brand - RBC
Item Number - FTP4874 RBC
Category - Slim Pack Thrust Bearing Assemblies

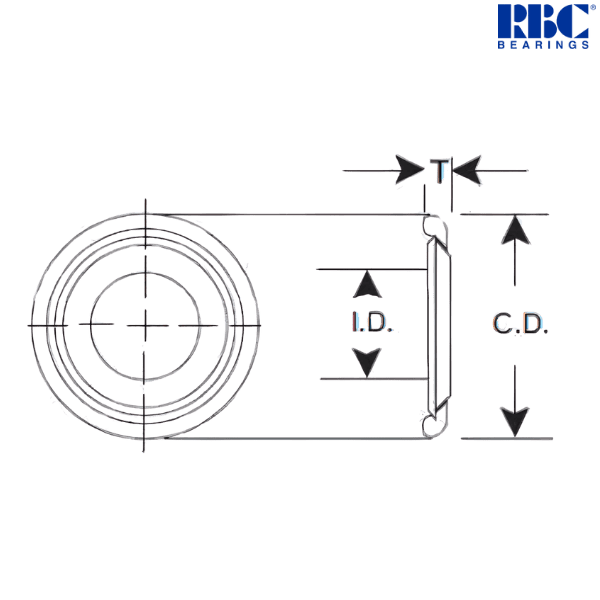

Principal Dimensions & Load Ratings (Imperial) :
Inner Diameter - 3 (+0.005 to - 0.025) inch
Outer Diameter - 4.625 (+0.010 to - 0.020) inch
T - 0.130 (±0.010) inch *
Area - 8.72 inch
Maximum Static Load - 65360 lbf

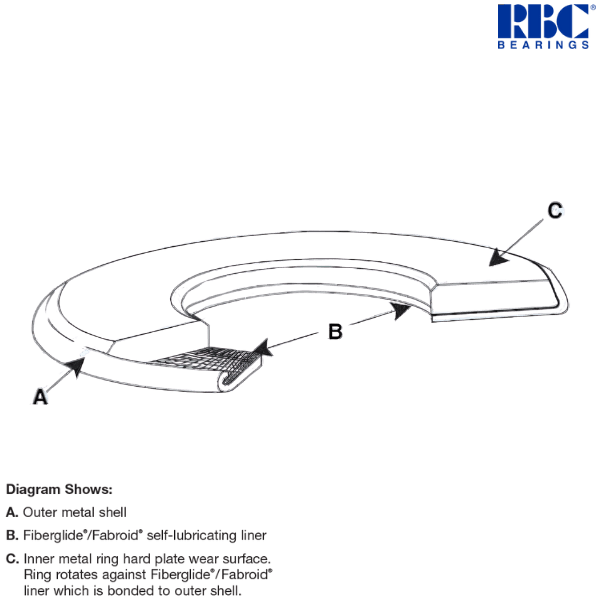

Description of Prefix : FTP
• Thrust Packs
• Two Piece Assembly
• Metal-Backed
Other salient points to be noted :
• Slim pack bearings are unique in the industry.
• No lubrication needed.
• Able to tolerate very high loads and require very little space.
• The advanced, unique design includes a self-contained dust seal and utilizes corrosion-resistant materials.
* T is measured with pack loaded.

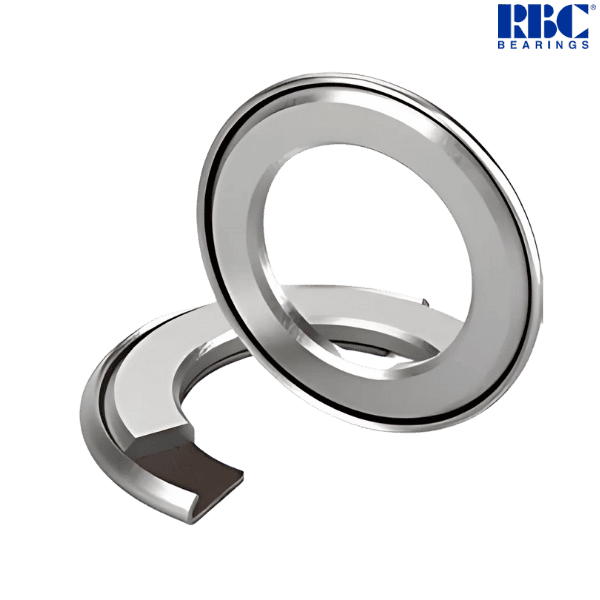

♦ ♦ Images are for representation purposes only
Item Number - FTP4874 RBC
Category - Slim Pack Thrust Bearing Assemblies
Principal Dimensions & Load Ratings (Imperial) :
Inner Diameter - 3 (+0.005 to - 0.025) inch
Outer Diameter - 4.625 (+0.010 to - 0.020) inch
T - 0.130 (±0.010) inch *
Area - 8.72 inch
Maximum Static Load - 65360 lbf
Description of Prefix : FTP
• Thrust Packs
• Two Piece Assembly
• Metal-Backed
Other salient points to be noted :
• Slim pack bearings are unique in the industry.
• No lubrication needed.
• Able to tolerate very high loads and require very little space.
• The advanced, unique design includes a self-contained dust seal and utilizes corrosion-resistant materials.
* T is measured with pack loaded.
♦ ♦ Images are for representation purposes only
