FTR 2 1/2 RBC

Brand - RBC
Item Number - FTR 2 1/2 RBC
Category - Track Runner (Flanged Track Rollers)
Inside Bearing Type - Ball Bearing (BB)

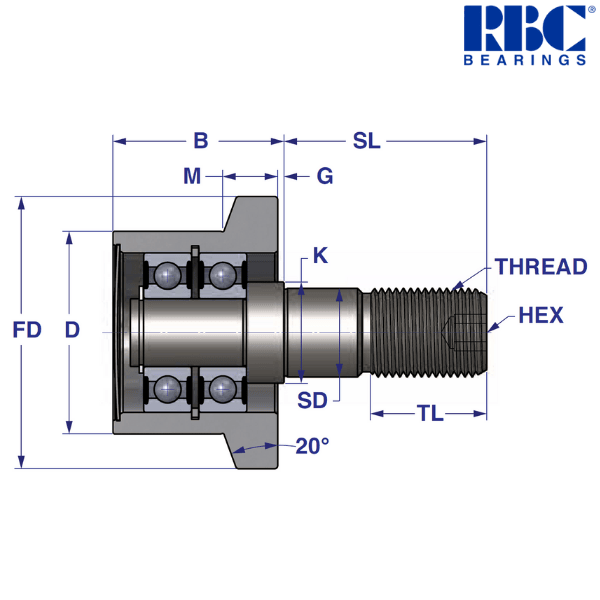

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 2.5 (+.000 to -.001) inch
Width of Roller (B) - 1.688 inch
Shank Diameter (SD) - 1 (+.000 to -.001) inch
Shank Length (SL) - 2.25 inch
Minimum Eff. Length Thread Length (TL) - 1.5 inch
Thread Class 2A - 1-14
Hex - 0.5 inch
Shoulder Diameter (K) - 1.25 inch
Shoulder Length (G) - 0.062 inch
Flange Thickness (M) - 0.593 inch
Flange Diameter (FD) - 3.188 inch
Dynamic Radial Load - 5190 lbs
Static Thrust Load - 1400 lbs
Static Radial Load - 2270 lbs
Equivalent Part Number in OSBORN - FLR 2-1/2
Equivalent Part Number in McGill - FCF 2-1/2

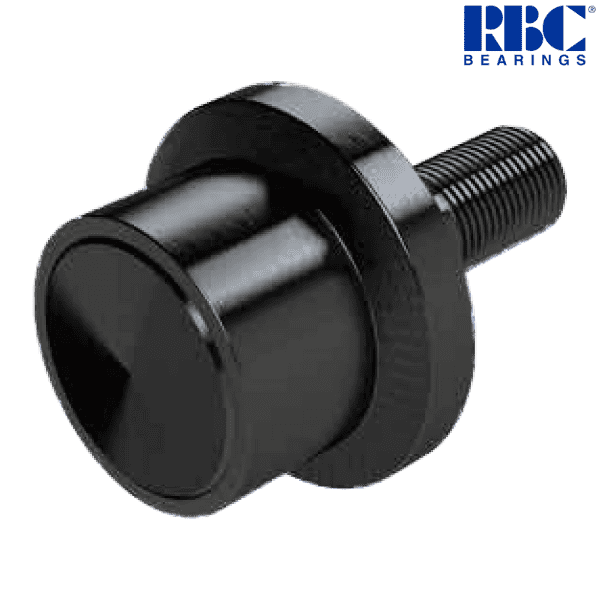

♦ ♦ Images are for representation purposes only
