Description
Brand - RBC
Item Number - FTRY 10 RBC
Category - Track Runner (Flanged Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

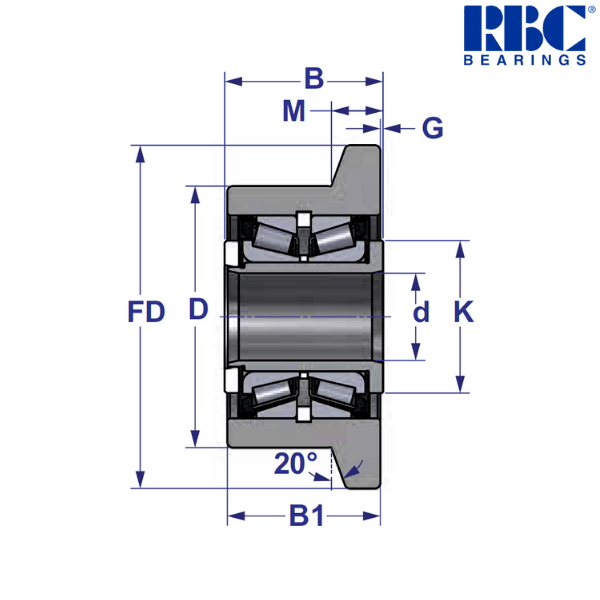

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 10 inch
Width (B1) - 5.25 inch
Bore Diameter (d) - 4.255 (+.001 to -.000) inch
Overall Width (B) - 5.5 (+.005 to -.010) inch
Flange Diameter (FD) - 10.937 inch
Groove Location (M) - 0.72 inch
Shoulder Length (G) - 0.125 inch
Shoulder Diameter (K) - 6.5 inch
Dynamic Radial Load - 138240 lbs
Static Thrust Load - 196000 lbs
Static Radial Load - 276000 lbs
Equivalent Part Number in OSBORN - FLRY 10

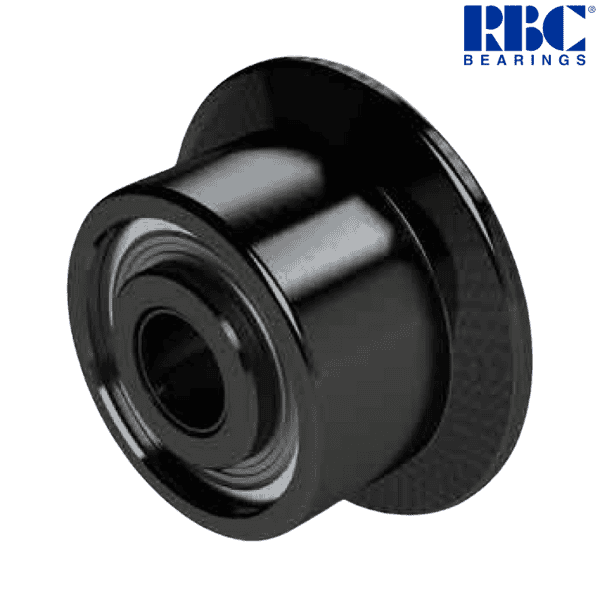

♦ ♦ Images are for representation purposes only
Item Number - FTRY 10 RBC
Category - Track Runner (Flanged Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)
Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 10 inch
Width (B1) - 5.25 inch
Bore Diameter (d) - 4.255 (+.001 to -.000) inch
Overall Width (B) - 5.5 (+.005 to -.010) inch
Flange Diameter (FD) - 10.937 inch
Groove Location (M) - 0.72 inch
Shoulder Length (G) - 0.125 inch
Shoulder Diameter (K) - 6.5 inch
Dynamic Radial Load - 138240 lbs
Static Thrust Load - 196000 lbs
Static Radial Load - 276000 lbs
Equivalent Part Number in OSBORN - FLRY 10
♦ ♦ Images are for representation purposes only
