Description
Brand - RBC
Item Number - FTRY 4 RBC
Category - Track Runner (Flanged Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

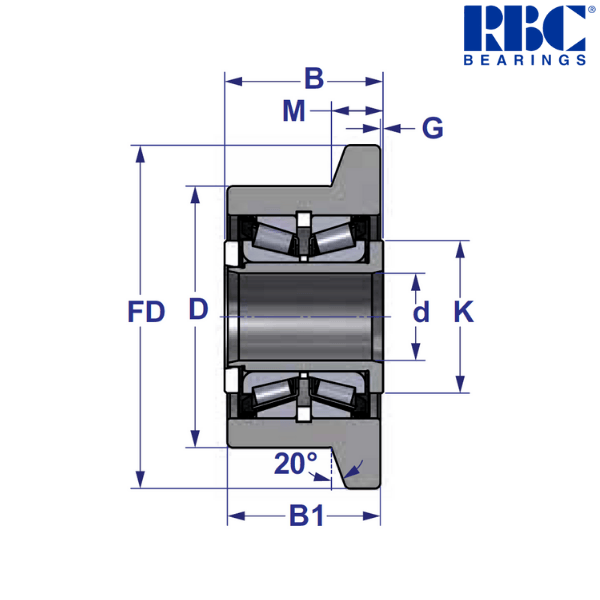

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 4 inch
Width (B1) - 2.25 inch
Bore Diameter (d) - 1.25 (+.0005 to -.0000) inch
Overall Width (B) - 2.312 (+.005 to -.010) inch
Flange Diameter (FD) - 4.937 inch
Groove Location (M) - 0.59 inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 2.25 inch
Dynamic Radial Load - 17590 lbs
Static Thrust Load - 13100 lbs
Static Radial Load - 27200 lbs
Equivalent Part Number in OSBORN - FLRY 4
Equivalent Part Number in McGill - FCYR 4

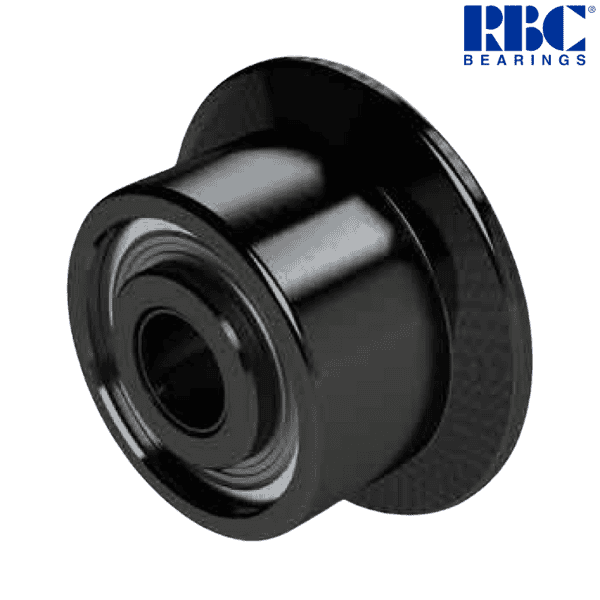

♦ ♦ Images are for representation purposes only
Item Number - FTRY 4 RBC
Category - Track Runner (Flanged Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)
Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 4 inch
Width (B1) - 2.25 inch
Bore Diameter (d) - 1.25 (+.0005 to -.0000) inch
Overall Width (B) - 2.312 (+.005 to -.010) inch
Flange Diameter (FD) - 4.937 inch
Groove Location (M) - 0.59 inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 2.25 inch
Dynamic Radial Load - 17590 lbs
Static Thrust Load - 13100 lbs
Static Radial Load - 27200 lbs
Equivalent Part Number in OSBORN - FLRY 4
Equivalent Part Number in McGill - FCYR 4
♦ ♦ Images are for representation purposes only
