Description
Brand - RBC
Item Number - FTRY 7 RBC
Category - Track Runner (Flanged Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

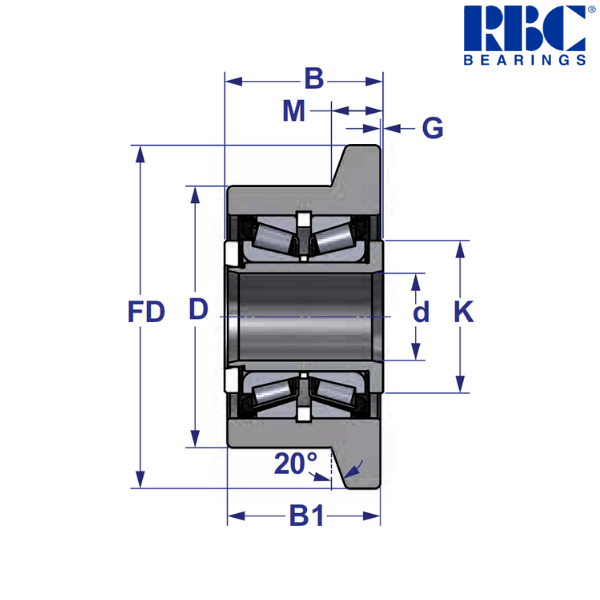

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 7 inch
Width (B1) - 3.75 inch
Bore Diameter (d) - 2.75 (+.001 to -.000) inch
Overall Width (B) - 3.875 (+.005 to -.010) inch
Flange Diameter (FD) - 7.937 inch
Groove Location (M) - 0.72 inch
Shoulder Length (G) - 0.062 inch
Shoulder Diameter (K) - 4.25 inch
Dynamic Radial Load - 42430 lbs
Static Thrust Load - 48400 lbs
Static Radial Load - 79800 lbs
Equivalent Part Number in OSBORN - FLRY 7

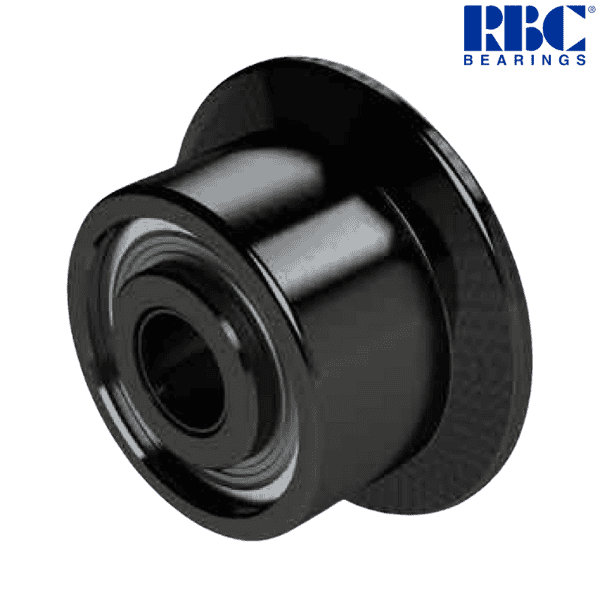

♦ ♦ Images are for representation purposes only
Item Number - FTRY 7 RBC
Category - Track Runner (Flanged Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)
Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 7 inch
Width (B1) - 3.75 inch
Bore Diameter (d) - 2.75 (+.001 to -.000) inch
Overall Width (B) - 3.875 (+.005 to -.010) inch
Flange Diameter (FD) - 7.937 inch
Groove Location (M) - 0.72 inch
Shoulder Length (G) - 0.062 inch
Shoulder Diameter (K) - 4.25 inch
Dynamic Radial Load - 42430 lbs
Static Thrust Load - 48400 lbs
Static Radial Load - 79800 lbs
Equivalent Part Number in OSBORN - FLRY 7
♦ ♦ Images are for representation purposes only
