Description
Brand - RBC
Item Number - FTS0612 RBC

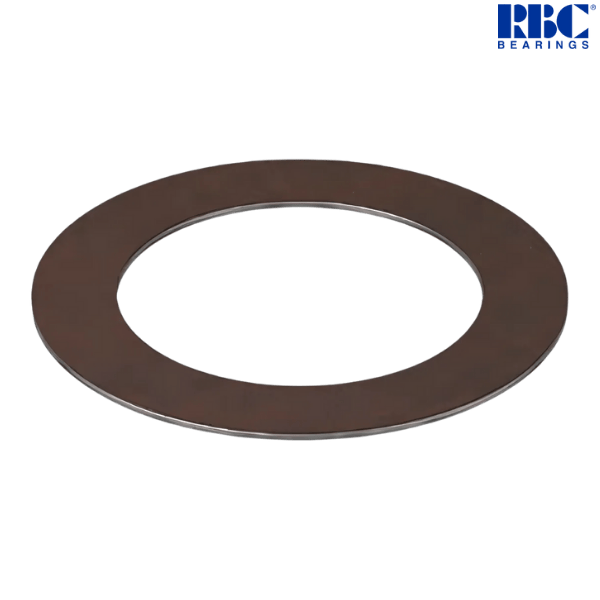

Category - Single-Sided Steel Backed Thrust Washers (Standard Metric Series)

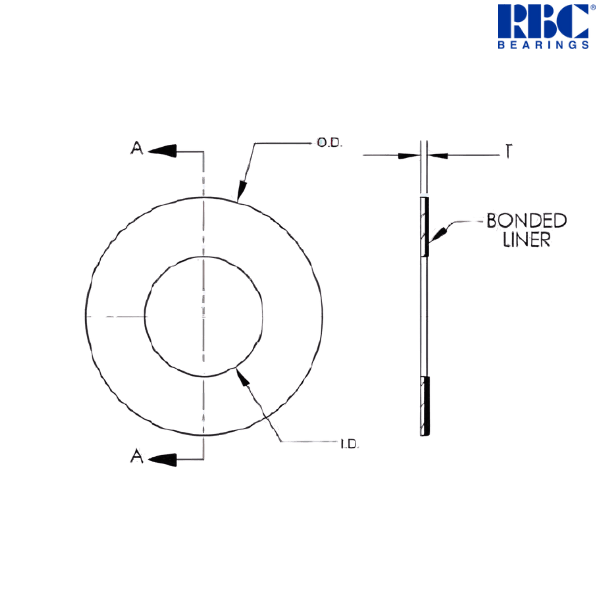

Principal Dimensions & Load Ratings (Imperial) :
Maximum Shaft Diameter - 0.375 inch
Inner Diameter - 0.406 (+0.020 to - 0.000) inch
Outer Diameter - 0.75 (+0.000 to - 0.020) inch
T - 0.058 (±0.002) inch
Maximum Static Load - 11866 lbf
Description of Prefix : FTS
• Inch/Metric Thrust Bearings
• Metal-Backed
• Single-Sided Wear Surface
Other salient points to be noted :
• Offer an economical approach to obtaining self-lubrication where high loads are encountered.
• Zinc-plated mild steel with Fiberglide® laminated to one face.
• Maximum compressive strength is 38,000 psi with operating temperature range of -320°F to 300°F.
• Fabroid® liner can also be supplied for special applications.
♦ ♦ Images are for representation purposes only
Item Number - FTS0612 RBC
Category - Single-Sided Steel Backed Thrust Washers (Standard Metric Series)
Principal Dimensions & Load Ratings (Imperial) :
Maximum Shaft Diameter - 0.375 inch
Inner Diameter - 0.406 (+0.020 to - 0.000) inch
Outer Diameter - 0.75 (+0.000 to - 0.020) inch
T - 0.058 (±0.002) inch
Maximum Static Load - 11866 lbf
Description of Prefix : FTS
• Inch/Metric Thrust Bearings
• Metal-Backed
• Single-Sided Wear Surface
Other salient points to be noted :
• Offer an economical approach to obtaining self-lubrication where high loads are encountered.
• Zinc-plated mild steel with Fiberglide® laminated to one face.
• Maximum compressive strength is 38,000 psi with operating temperature range of -320°F to 300°F.
• Fabroid® liner can also be supplied for special applications.
♦ ♦ Images are for representation purposes only
