GA030CP0 RBC

Brand - RBC
Item Number - GA030CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

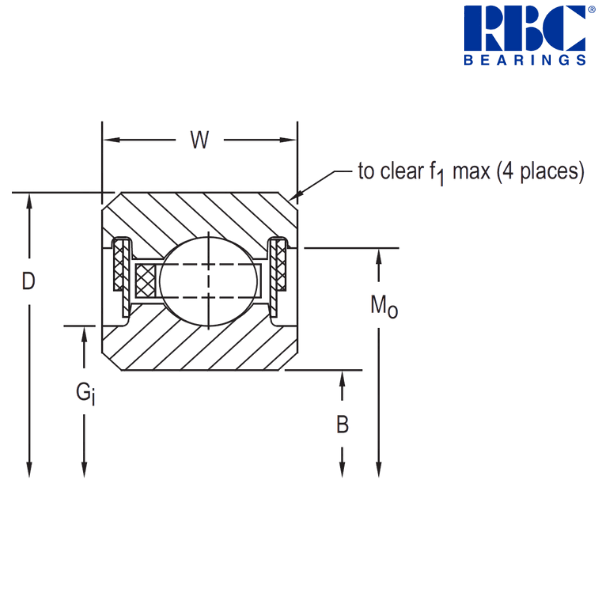

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 3 inch
Outside Diameter (D) - 3.5 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 3.125 inch
Groove Diameter (Mo) - 3.343 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 39 pcs.
Approximate Weight - 0.15 lbs
Radial Static Load - 990 lbf
Radial Dynamic Load - 650 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 76.2 mm
Outside Diameter (D) - 88.9 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 79.38 mm
Groove Diameter (Mo) - 84.91 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.068 kg
Radial Static Load - 4404 N
Radial Dynamic Load - 2890 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
A - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals
