GA070XP0 RBC

Brand - RBC
Item Number - GA070XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

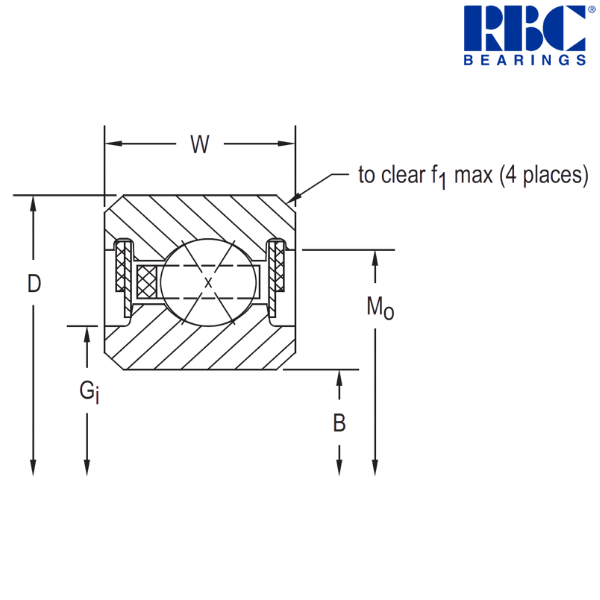

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7 inch
Outside Diameter (D) - 7.5 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 7.125 inch
Groove Diameter (Mo) - 7.343 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 87 pcs.
Approximate Weight - 0.31 lbs
Radial Static Load - 2200 lbf
Radial Dynamic Load - 1046 lbf
Thrust Static Load - 5500 lbf
Thrust Dynamic Load - 1850 lbf
Moment Static Load - 7980 lbf
Moment Dynamic Load - 2844 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 177.8 mm
Outside Diameter (D) - 190.5 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 180.98 mm
Groove Diameter (Mo) - 186.51 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.141 kg
Radial Static Load - 9790 N
Radial Dynamic Load - 4650 N
Thrust Static Load - 24470 N
Thrust Dynamic Load - 8230 N
Moment Static Load - 900 Nm
Moment Dynamic Load - 320 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
A - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.
