GA110CP0 RBC

Brand - RBC
Item Number - GA110CP0*RBC

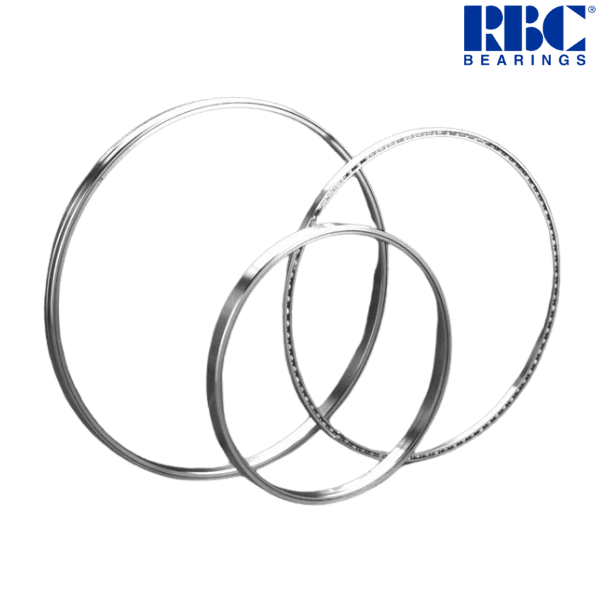

Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

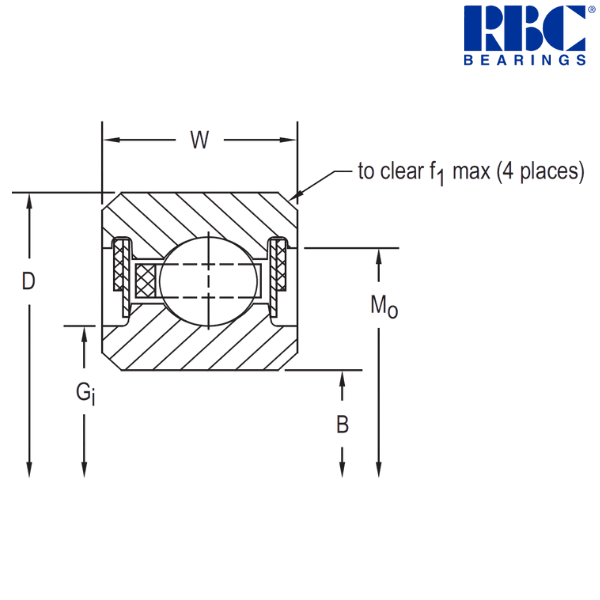

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 11 inch
Outside Diameter (D) - 11.5 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 11.125 inch
Groove Diameter (Mo) - 11.343 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 135 pcs.
Approximate Weight - 0.52 lbs
Radial Static Load - 3410 lbf
Radial Dynamic Load - 1030 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 279.4 mm
Outside Diameter (D) - 292.1 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 282.58 mm
Groove Diameter (Mo) - 288.11 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.236 kg
Radial Static Load - 15170 N
Radial Dynamic Load - 4580 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
A - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
