GB042CP0 RBC

Brand - RBC
Item Number - GB042CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

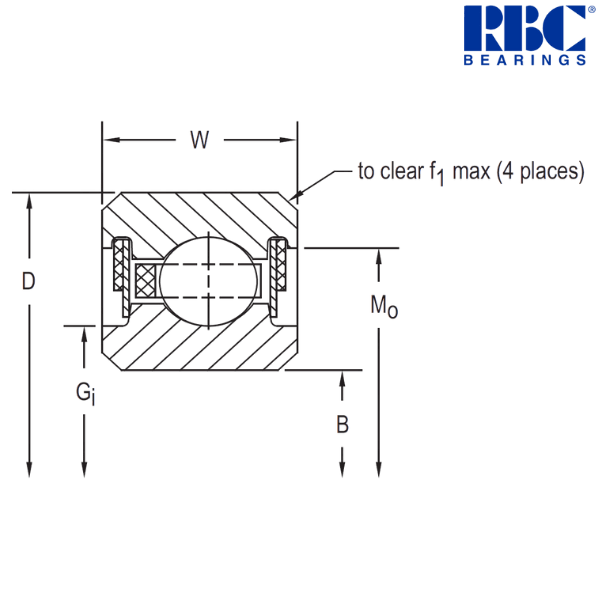

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.25 inch
Outside Diameter (D) - 4.875 inch
Width (W) - 0.3125 inch
Recess Diameter (Gi) - 4.406 inch
Groove Diameter (Mo) - 4.68 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 45 pcs.
Approximate Weight - 0.31 lbs
Radial Static Load - 1830 lbf
Radial Dynamic Load - 1030 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 107.95 mm
Outside Diameter (D) - 123.825 mm
Width (W) - 7.938 mm
Recess Diameter (Gi) - 111.91 mm
Groove Diameter (Mo) - 118.87 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.141 kg
Radial Static Load - 8140 N
Radial Dynamic Load - 4580 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
B - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
