GB047XP0 RBC

Brand - RBC
Item Number - GB047XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

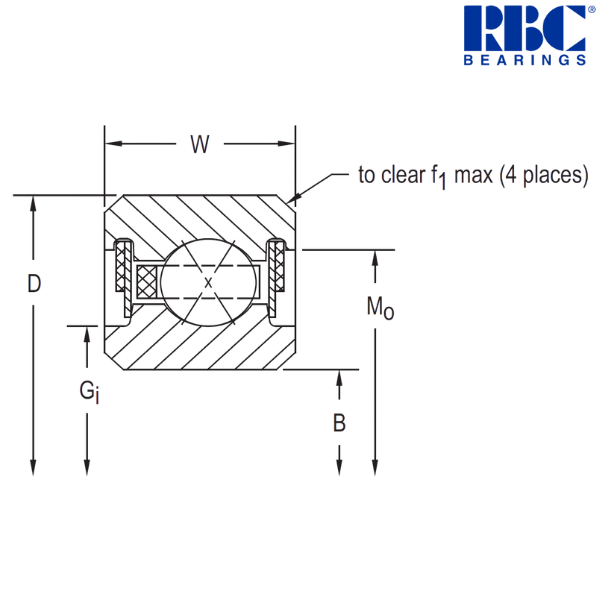

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.75 inch
Outside Diameter (D) - 5.375 inch
Width (W) - 0.3125 inch
Recess Diameter (Gi) - 4.906 inch
Groove Diameter (Mo) - 5.18 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 50 pcs.
Approximate Weight - 0.34 lbs
Radial Static Load - 2030 lbf
Radial Dynamic Load - 1193 lbf
Thrust Static Load - 5080 lbf
Thrust Dynamic Load - 2310 lbf
Moment Static Load - 5140 lbf
Moment Dynamic Load - 2340 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 120.65 mm
Outside Diameter (D) - 136.525 mm
Width (W) - 7.938 mm
Recess Diameter (Gi) - 124.61 mm
Groove Diameter (Mo) - 131.57 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.154 kg
Radial Static Load - 9030 N
Radial Dynamic Load - 5310 N
Thrust Static Load - 22600 N
Thrust Dynamic Load - 10280 N
Moment Static Load - 580 Nm
Moment Dynamic Load - 260 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
B - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals
