GB080XP0 RBC

Brand - RBC
Item Number - GB080XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

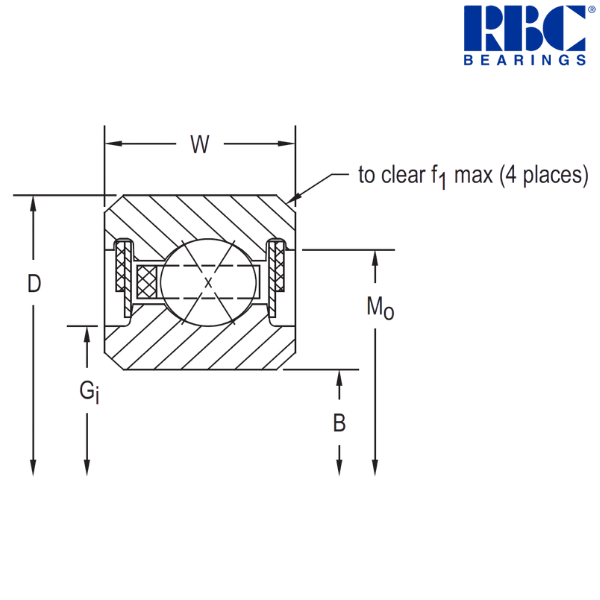

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 8 inch
Outside Diameter (D) - 8.625 inch
Width (W) - 0.3125 inch
Recess Diameter (Gi) - 8.156 inch
Groove Diameter (Mo) - 8.43 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 83 pcs.
Approximate Weight - 0.57 lbs
Radial Static Load - 3370 lbf
Radial Dynamic Load - 1618 lbf
Thrust Static Load - 8430 lbf
Thrust Dynamic Load - 2790 lbf
Moment Static Load - 14020 lbf
Moment Dynamic Load - 5045 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 203.2 mm
Outside Diameter (D) - 219.075 mm
Width (W) - 7.938 mm
Recess Diameter (Gi) - 207.16 mm
Groove Diameter (Mo) - 214.12 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.259 kg
Radial Static Load - 14990 N
Radial Dynamic Load - 7200 N
Thrust Static Load - 37500 N
Thrust Dynamic Load - 12410 N
Moment Static Load - 1580 Nm
Moment Dynamic Load - 570 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
B - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
