GB100XP0 RBC

Brand - RBC
Item Number - GB100XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

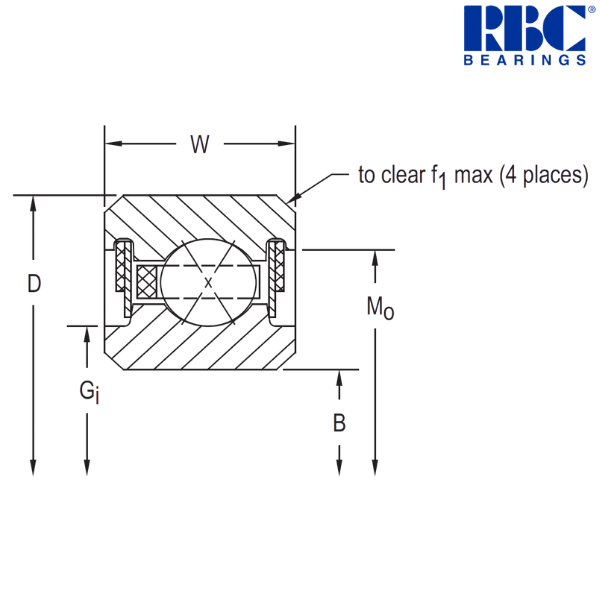

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 10 inch
Outside Diameter (D) - 10.625 inch
Width (W) - 0.3125 inch
Recess Diameter (Gi) - 10.156 inch
Groove Diameter (Mo) - 10.43 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 103 pcs.
Approximate Weight - 0.73 lbs
Radial Static Load - 4190 lbf
Radial Dynamic Load - 1841 lbf
Thrust Static Load - 10460 lbf
Thrust Dynamic Load - 3080 lbf
Moment Static Load - 21580 lbf
Moment Dynamic Load - 7121 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 254 mm
Outside Diameter (D) - 269.875 mm
Width (W) - 7.938 mm
Recess Diameter (Gi) - 257.96 mm
Groove Diameter (Mo) - 264.92 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.331 kg
Radial Static Load - 18640 N
Radial Dynamic Load - 8190 N
Thrust Static Load - 46530 N
Thrust Dynamic Load - 13700 N
Moment Static Load - 2440 Nm
Moment Dynamic Load - 800 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
B - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

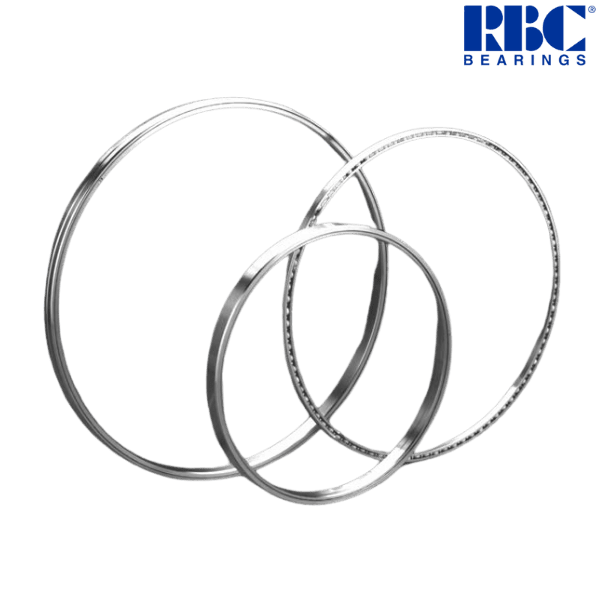

♦ ♦ Images are for representation purposes only
