Description
Brand - NADELLA
Item Number - GC 26 EEM NADELLA
Also Known As - GC26EEM
Category - Cam Followers with Stud

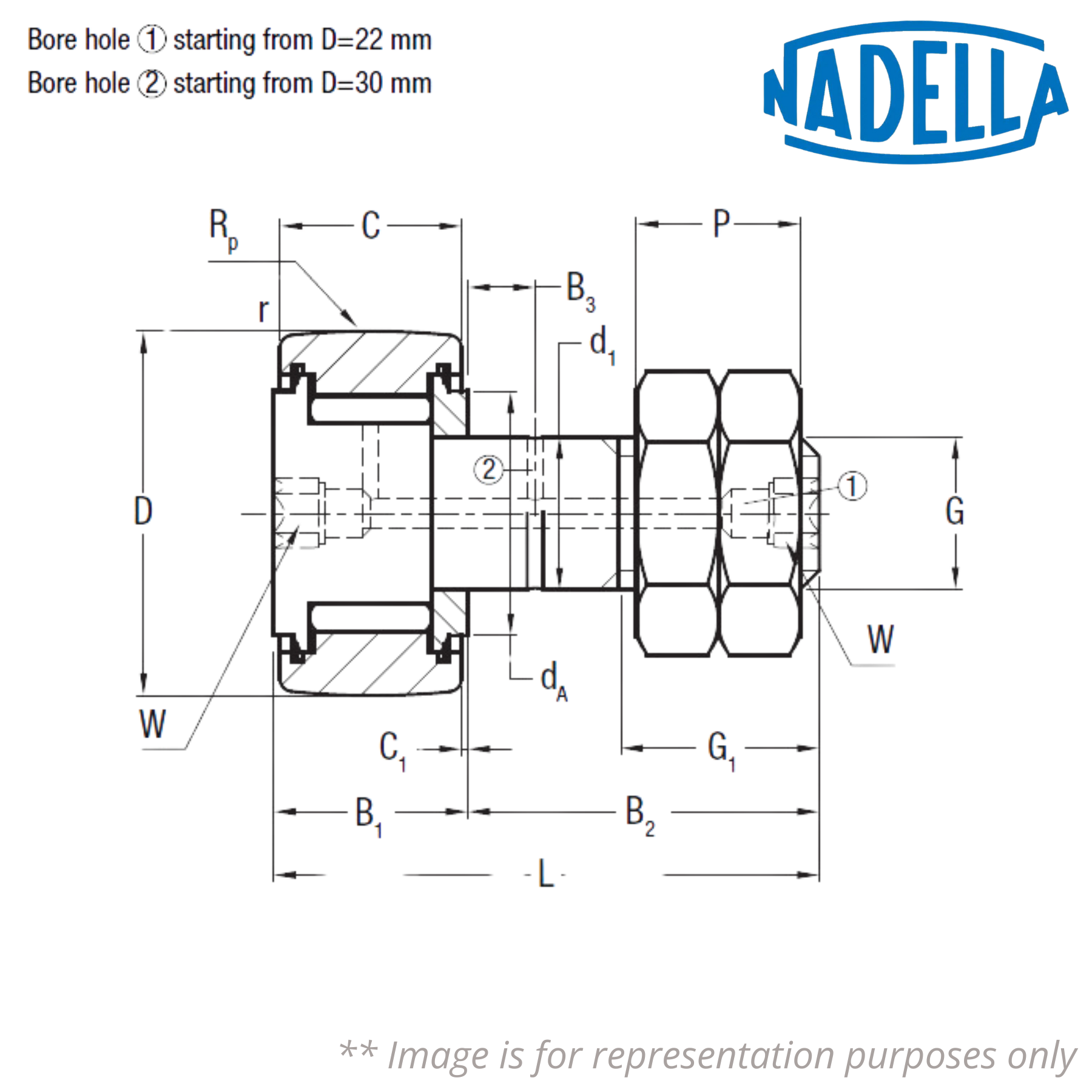

Outer Diameter (D) mm - 26
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 10
L (mm) - 36
B1 (mm) - 13.2
B2 (mm) - 23
Threading (G) mm - M10x1.25
G1 (mm) - 12
C (mm) - 12
C1 (mm) - 0.6
dA (mm) - 20.8
B3 (mm) - 18
r (mm) - 0.3
Convex Radius (Rp) mm - 600
W (mm) - 4
P (mm) - 10
Load Coefficient (Cw) N - 8600
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 5300
Static Load Coefficient for Cam Followers without Stud (For) N - 9800
Speed Limit with Grease (min-1) - 3000
Weight (kg) - 0.08
Clamping Torque (Nm) - 20
GC - Concentric Cam Follower with Stud with Optimised Outer Ring
Seal - Metal Seal
