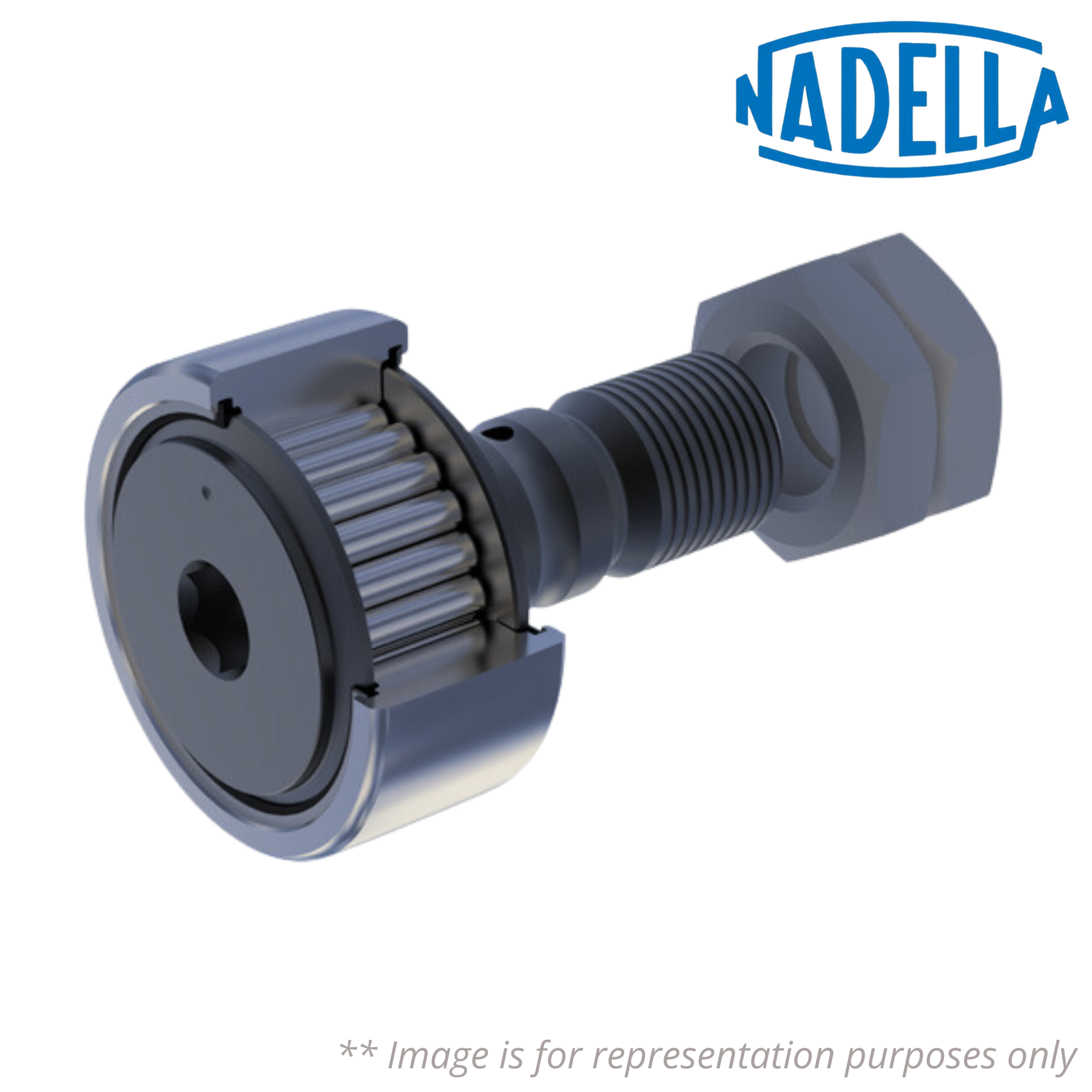

GC 90 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GC 90 NADELLA
Also Known As - GC90
Category - Cam Followers with Stud

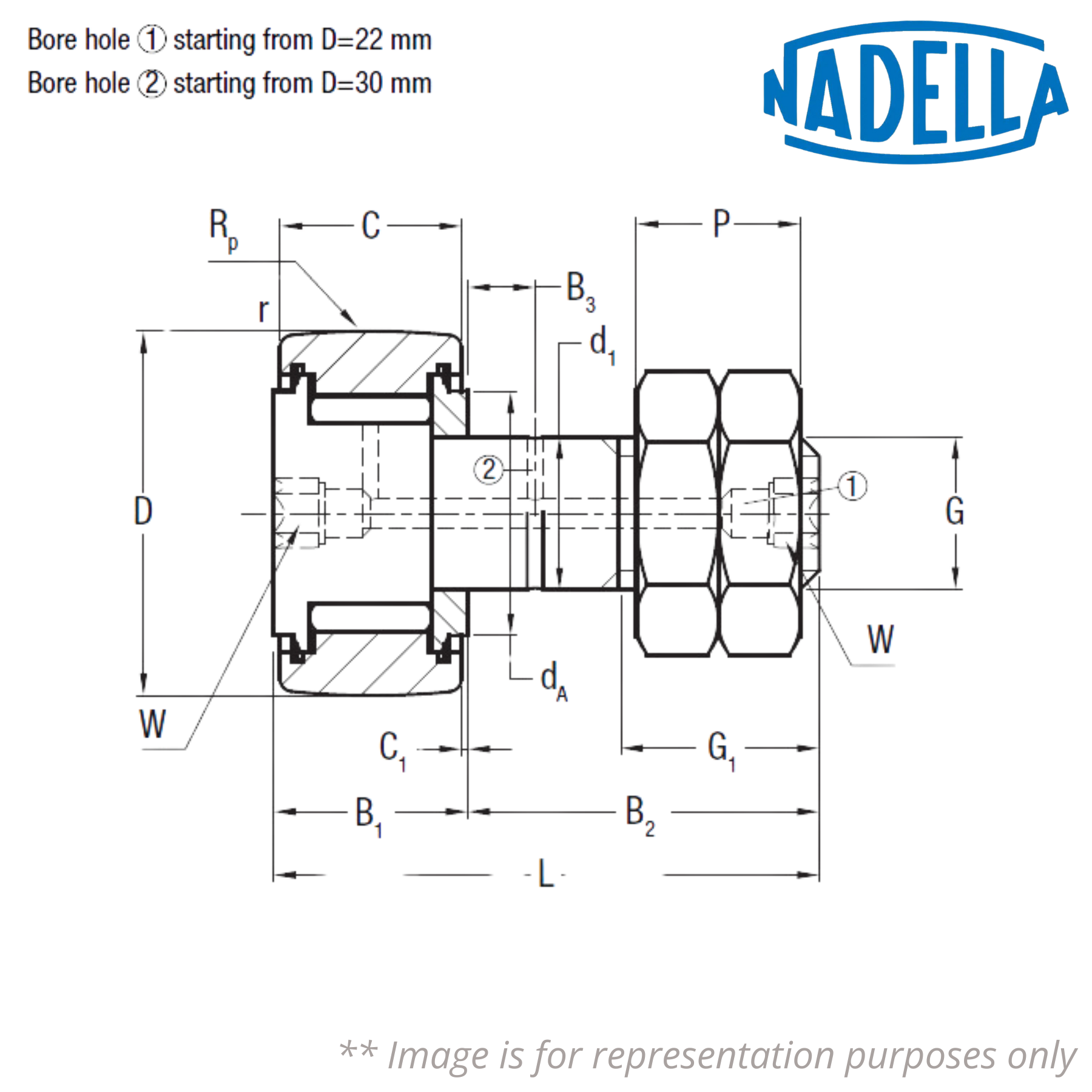

Outer Diameter (D) mm - 90
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 30
L (mm) - 100
B1 (mm) - 37
B2 (mm) - 63
Threading (G) mm - M30x1.5
G1 (mm) - 32
C (mm) - 35
C1 (mm) - 1
dA (mm) - 61
B3 (mm) - 15
r (mm) - 1
Convex Radius (Rp) mm - 1700
W (mm) - 14
P (mm) - 30
Load Coefficient (Cw) N - 63000
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 50000
Static Load Coefficient for Cam Followers without Stud (For) N - 93000
Speed Limit with Grease (min-1) - 900
Weight (kg) - 2435
Clamping Torque (Nm) - 450
GC - Concentric Cam Follower with Stud with Optimised Outer Ring
Seal - Without Seal
