GC047XP0 RBC

Brand - RBC
Item Number - GC047XP0*RBC

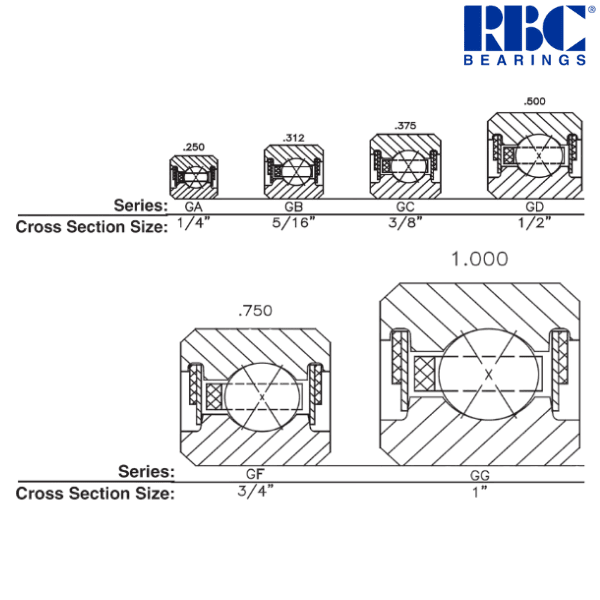

Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

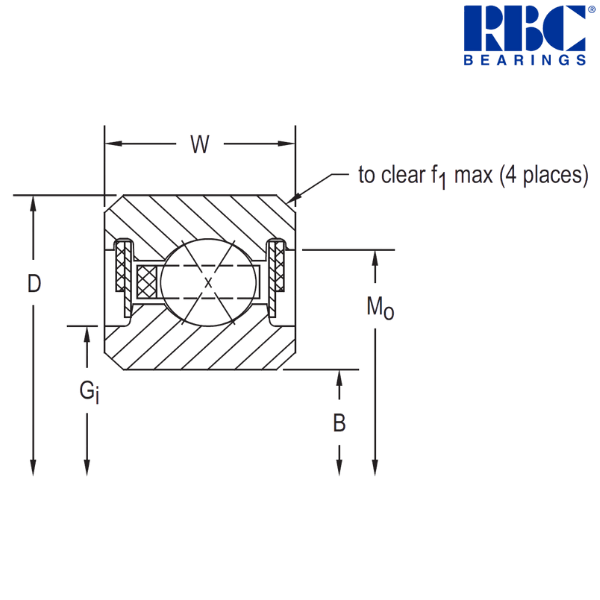

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.75 inch
Outside Diameter (D) - 5.5 inch
Width (W) - 0.375 inch
Recess Diameter (Gi) - 4.938 inch
Groove Diameter (Mo) - 5.266 inch
Housing Fillet (f1) - 0.04 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 41 pcs.
Approximate Weight - 0.5 lbs
Radial Static Load - 2460 lbf
Radial Dynamic Load - 1556 lbf
Thrust Static Load - 6160 lbf
Thrust Dynamic Load - 2970 lbf
Moment Static Load - 6320 lbf
Moment Dynamic Load - 3040 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 120.65 mm
Outside Diameter (D) - 139.7 mm
Width (W) - 9.525 mm
Recess Diameter (Gi) - 125.43 mm
Groove Diameter (Mo) - 133.76 mm
Housing Fillet (f1) - 1.02 mm
Approximate Weight - 0.227 kg
Radial Static Load - 10940 N
Radial Dynamic Load - 6920 N
Thrust Static Load - 27400 N
Thrust Dynamic Load - 13210 N
Moment Static Load - 710 Nm
Moment Dynamic Load - 340 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
C - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
