GC050XP0 RBC

Brand - RBC
Item Number - GC050XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

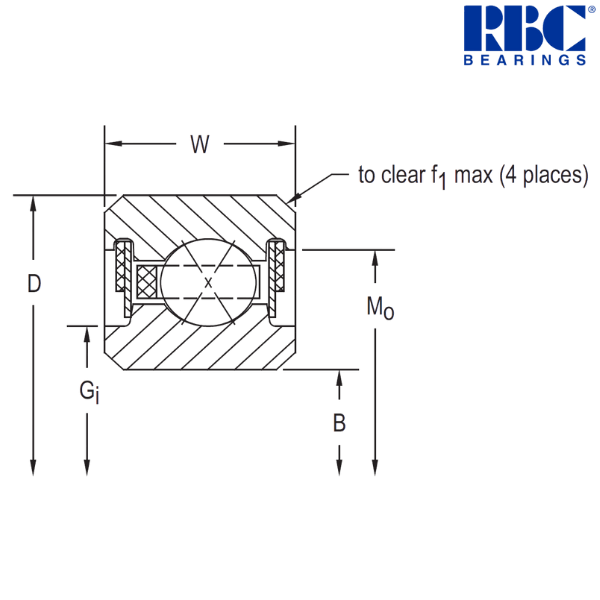

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5 inch
Outside Diameter (D) - 5.75 inch
Width (W) - 0.375 inch
Recess Diameter (Gi) - 5.188 inch
Groove Diameter (Mo) - 5.516 inch
Housing Fillet (f1) - 0.04 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 43 pcs.
Approximate Weight - 0.58 lbs
Radial Static Load - 2590 lbf
Radial Dynamic Load - 1600 lbf
Thrust Static Load - 6460 lbf
Thrust Dynamic Load - 3040 lbf
Moment Static Load - 6950 lbf
Moment Dynamic Load - 3270 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 127 mm
Outside Diameter (D) - 146.05 mm
Width (W) - 9.525 mm
Recess Diameter (Gi) - 131.78 mm
Groove Diameter (Mo) - 140.11 mm
Housing Fillet (f1) - 1.02 mm
Approximate Weight - 0.263 kg
Radial Static Load - 11520 N
Radial Dynamic Load - 7120 N
Thrust Static Load - 28740 N
Thrust Dynamic Load - 13520 N
Moment Static Load - 790 Nm
Moment Dynamic Load - 370 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
C - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
