GC090CP0 RBC

Brand - RBC
Item Number - GC090CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

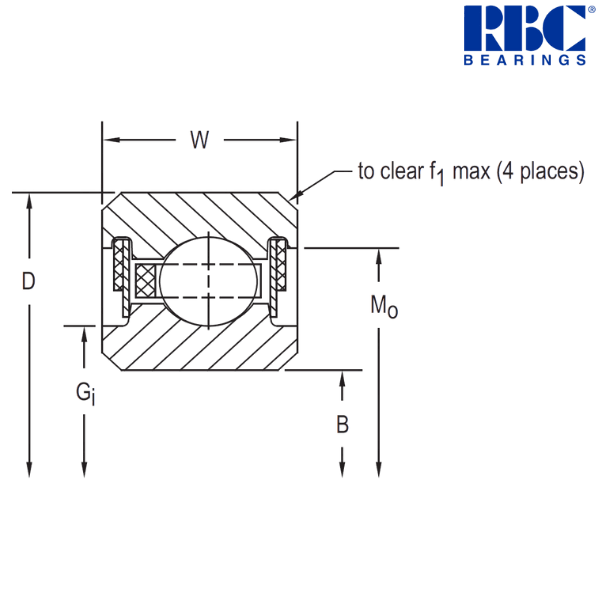

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 9 inch
Outside Diameter (D) - 9.75 inch
Width (W) - 0.375 inch
Recess Diameter (Gi) - 9.188 inch
Groove Diameter (Mo) - 9.516 inch
Housing Fillet (f1) - 0.04 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 75 pcs.
Approximate Weight - 0.94 lbs
Radial Static Load - 4510 lbf
Radial Dynamic Load - 1730 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 228.6 mm
Outside Diameter (D) - 247.65 mm
Width (W) - 9.525 mm
Recess Diameter (Gi) - 233.38 mm
Groove Diameter (Mo) - 241.71 mm
Housing Fillet (f1) - 1.02 mm
Approximate Weight - 0.426 kg
Radial Static Load - 20060 N
Radial Dynamic Load - 7700 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
C - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
