GC11 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GC11 NADELLA
Category - Cam Followers with Stud

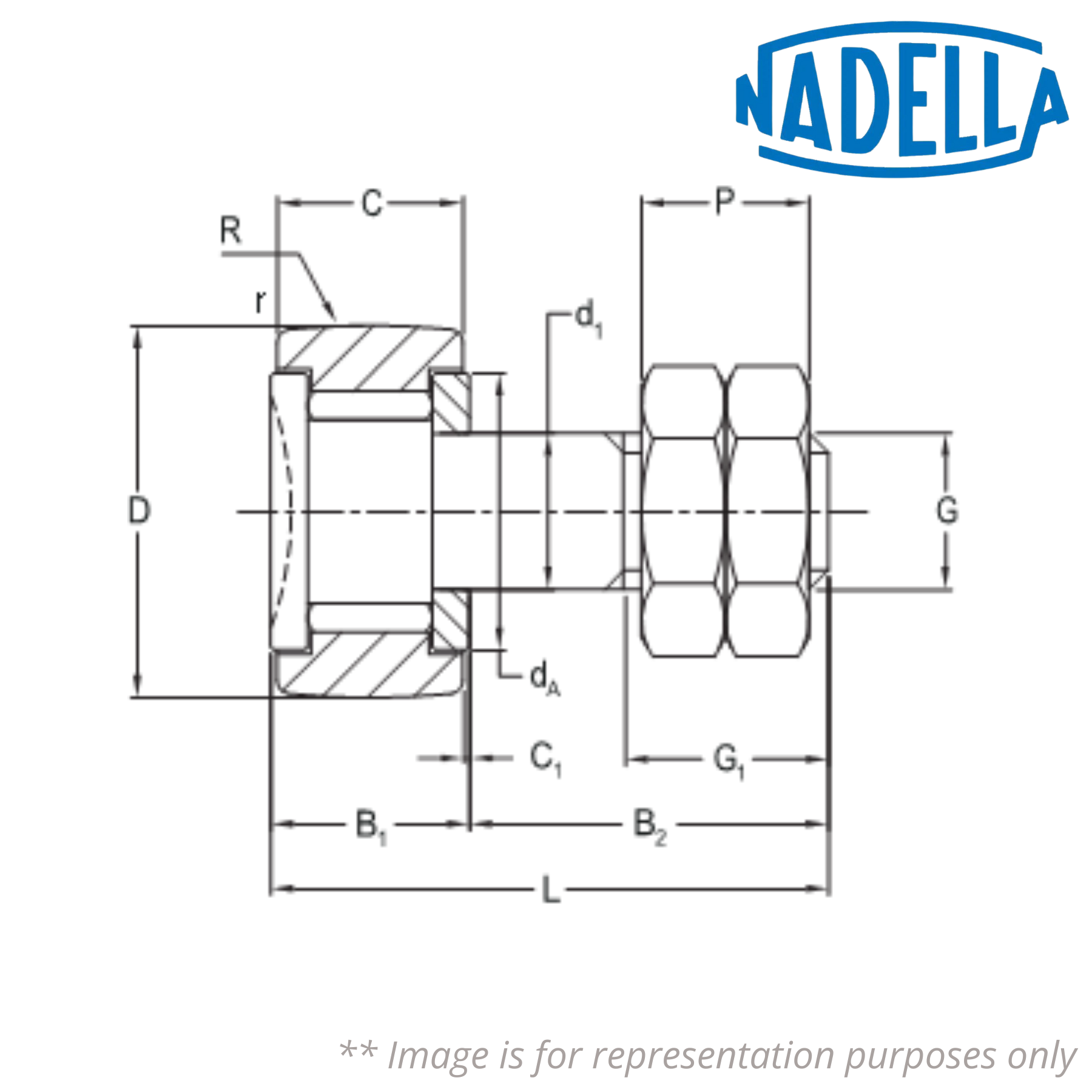

Outer Diameter (D) mm - 11
Hole Diameter (d1) mm - 4
L (mm) - 19.5
B1 (mm) - 8.5
B2 (mm) - 11
Threading (G) mm - M4x0.7
G1 (mm) - 6
C (mm) - 8
C1 (mm) - 0.25
dA (mm) - 8.4
r (mm) - 0.2
Convex Radius (R) mm - 130
P (mm) - 6
Load Coefficients (Cw) N - 2400
Dynamic Load Coefficients without Stud (Fr) N - 520
Static Load Coefficients without Stud (For) N - 960
Speed Limit with Grease (min-1) - 7400
Weight (kg) - 0.007
Clamping Torque (Nm) - 0.9

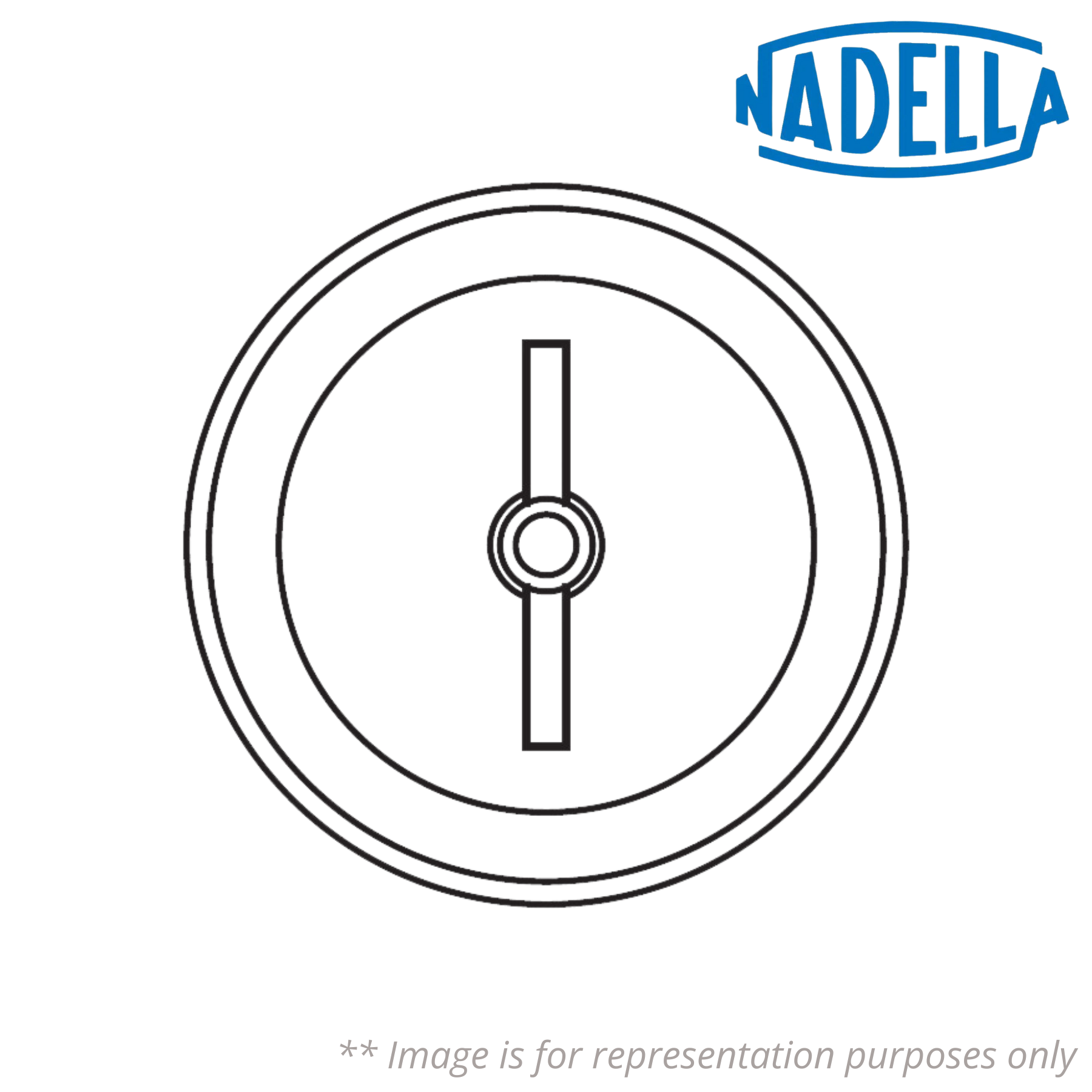

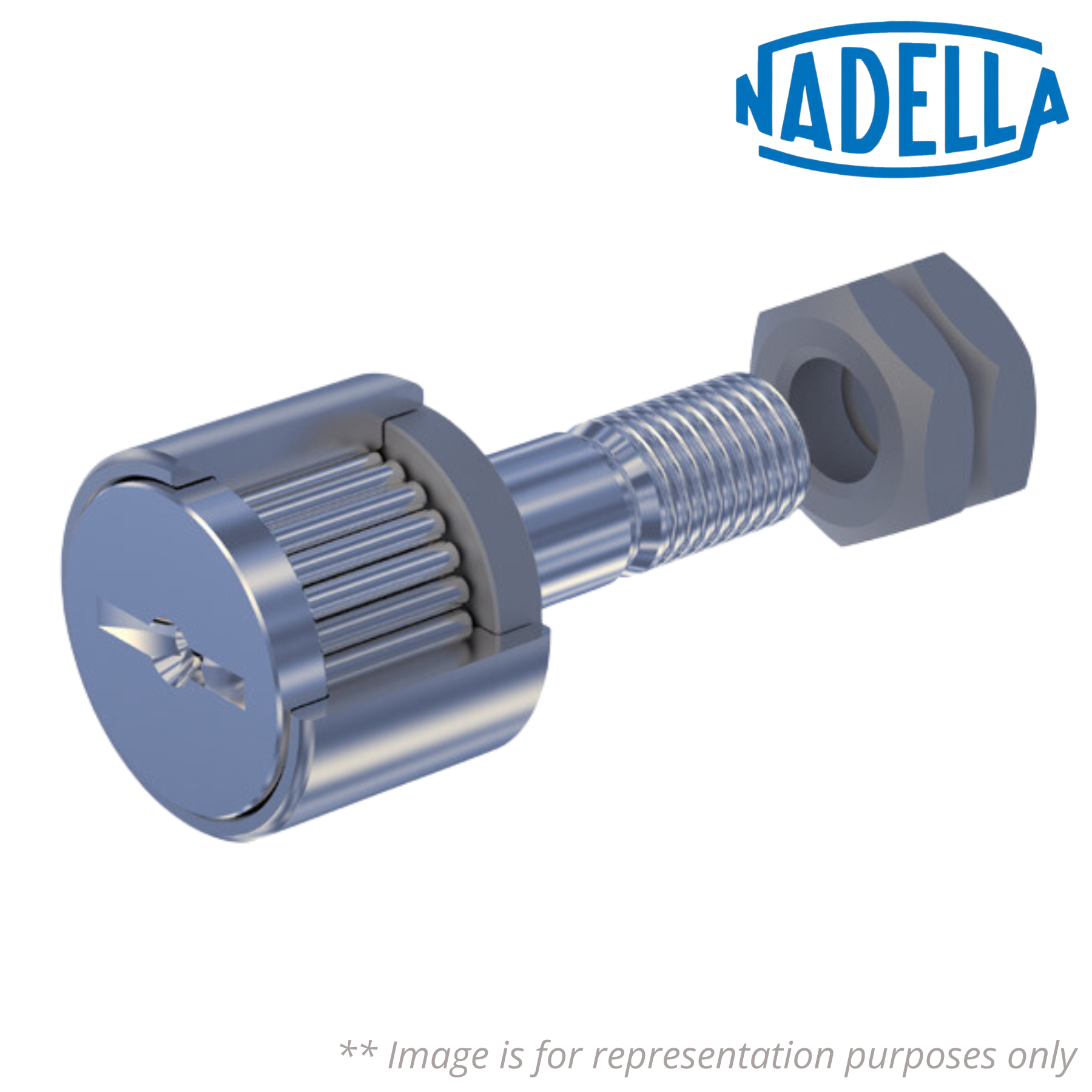

GC - Concentric Cam Follower with Stud with Convex Outer Ring
