GC14 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GC14 NADELLA
Category - Cam Followers with Stud

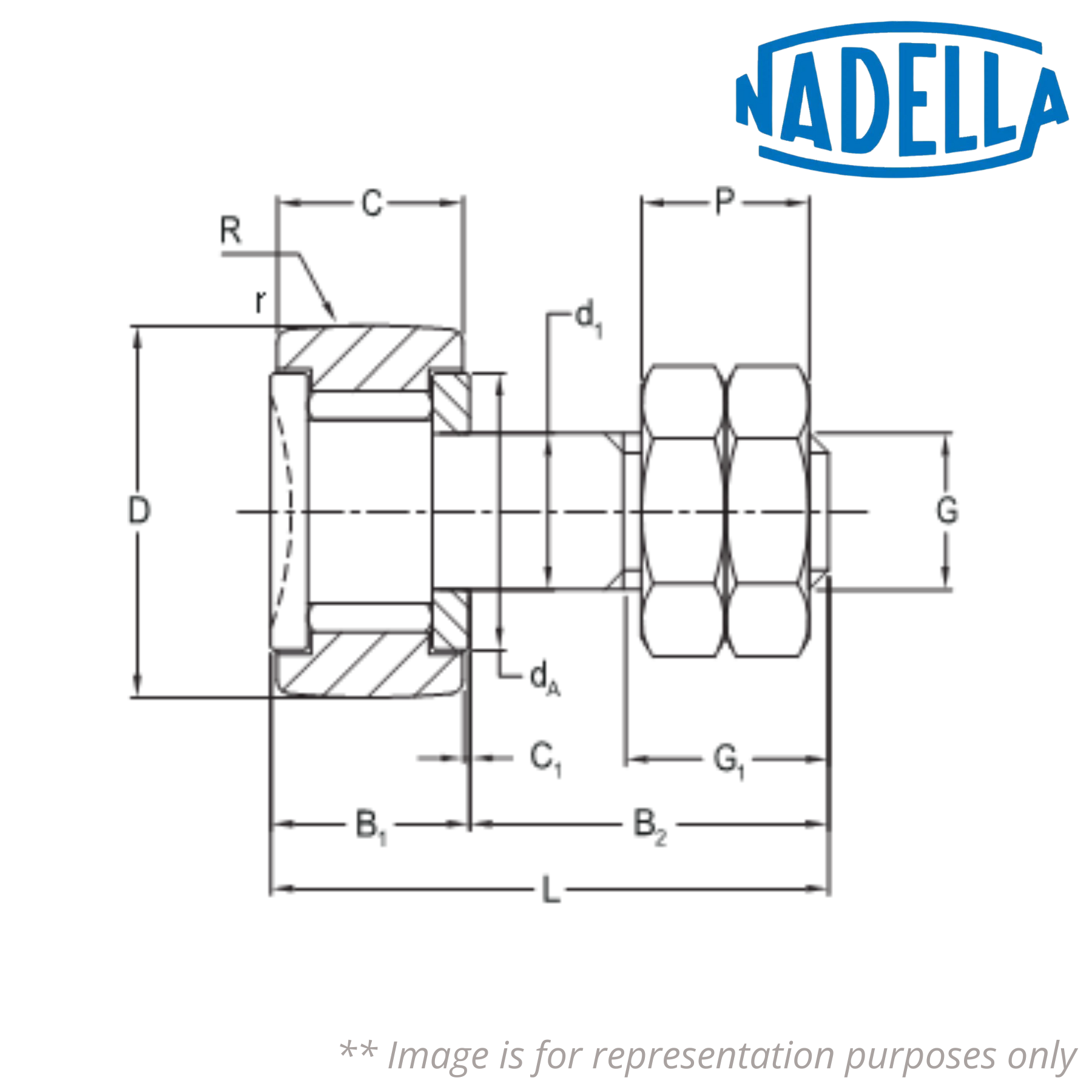

Outer Diameter (D) mm - 14
Hole Diameter (d1) mm - 6
L (mm) - 26
B1 (mm) - 10
B2 (mm) - 16
Threading (G) mm - M6x1
G1 (mm) - 8
C (mm) - 9
C1 (mm) - 0.25
dA (mm) - 11.8
r (mm) - 0.3
Convex Radius (R) mm - 130
P (mm) - 6.4
Load Coefficients (Cw) N - 3400
Dynamic Load Coefficients without Stud (Fr) N - 1500
Static Load Coefficients without Stud (For) N - 2800
Speed Limit with Grease (min-1) - 5500
Weight (kg) - 0.016
Clamping Torque (Nm) - 3

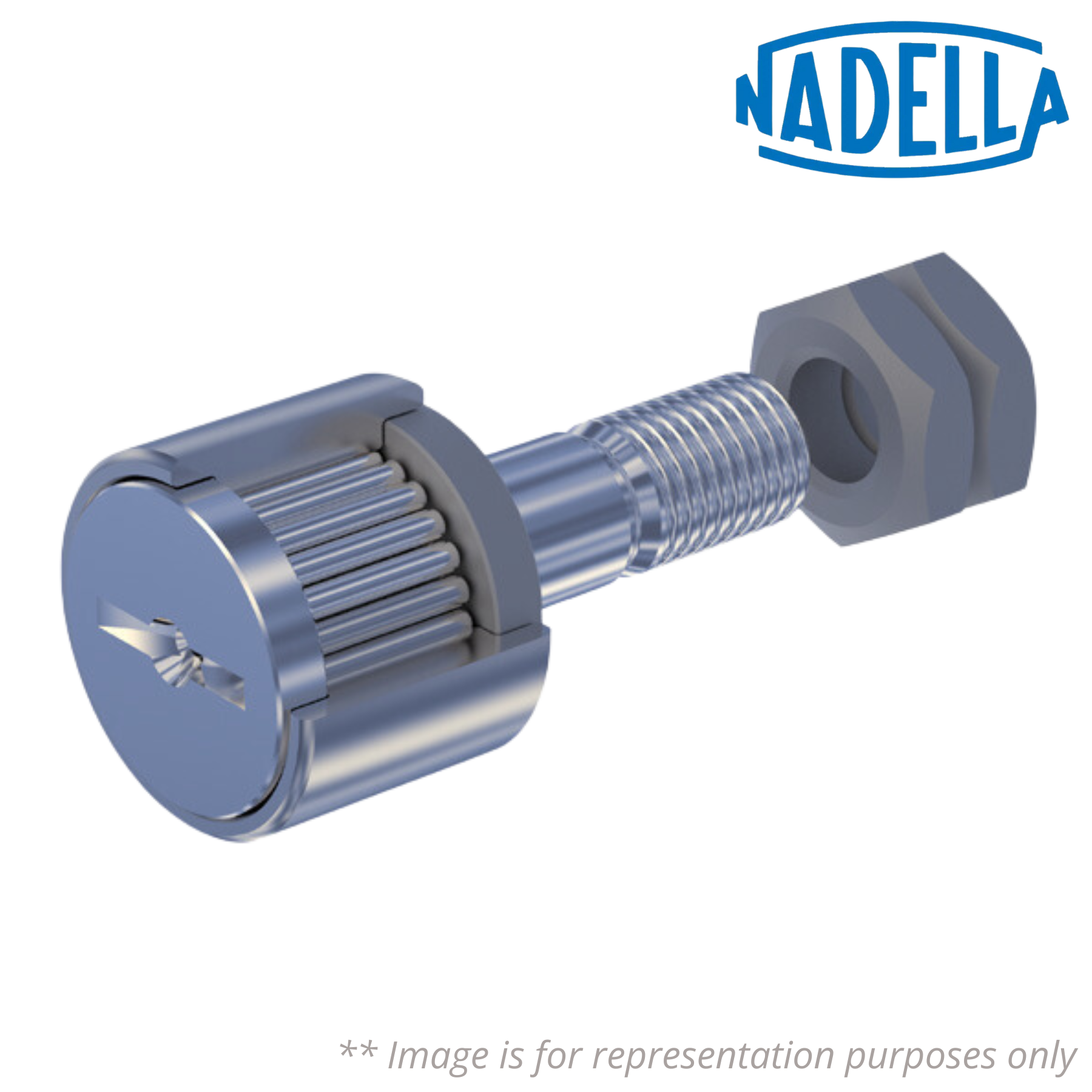

GC - Concentric Cam Follower with Stud with Convex Outer Ring
