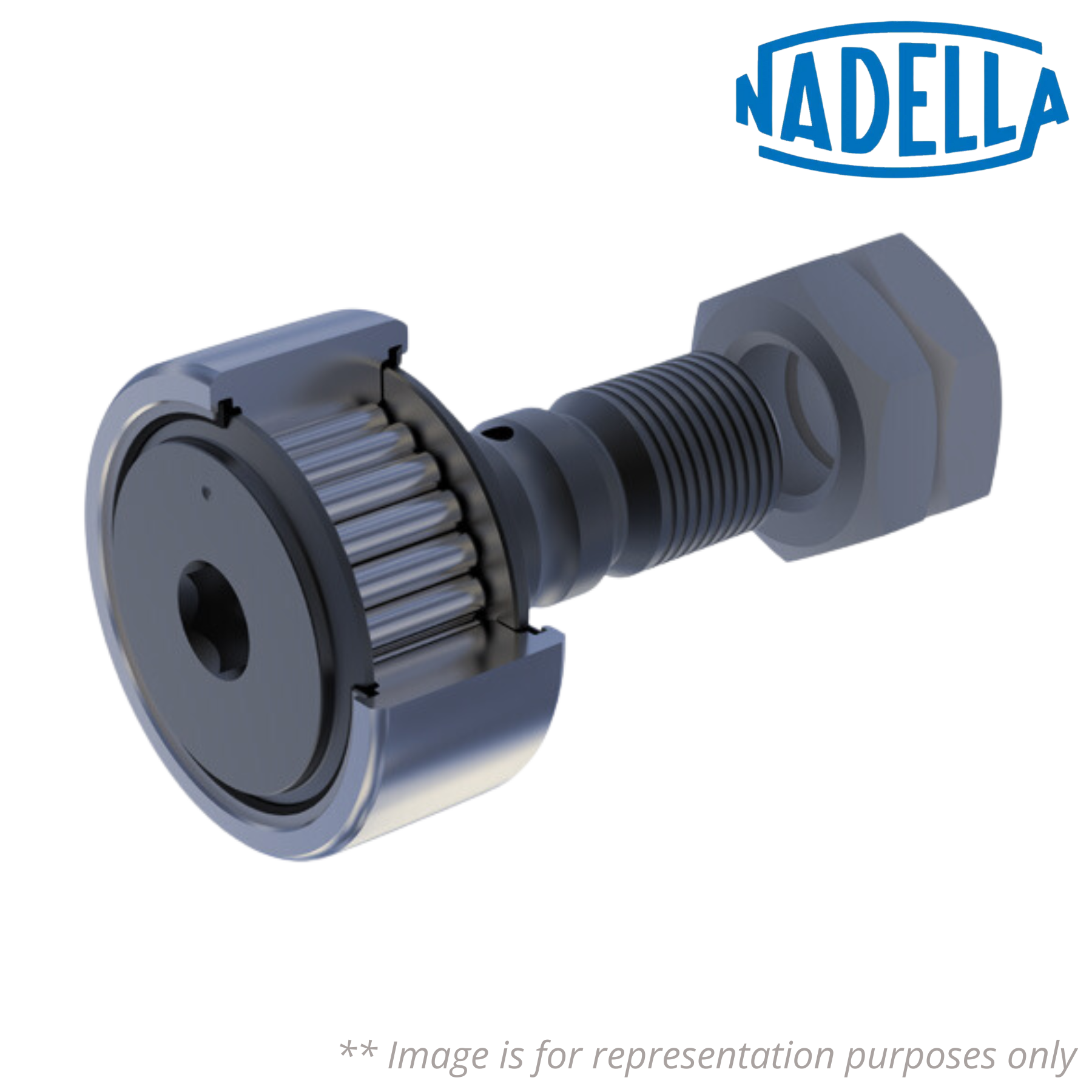

GCL 40 SW NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GCL 40 SW NADELLA
Also Known As - GCL40SW
Category - Concentric Cam Followers with Stud

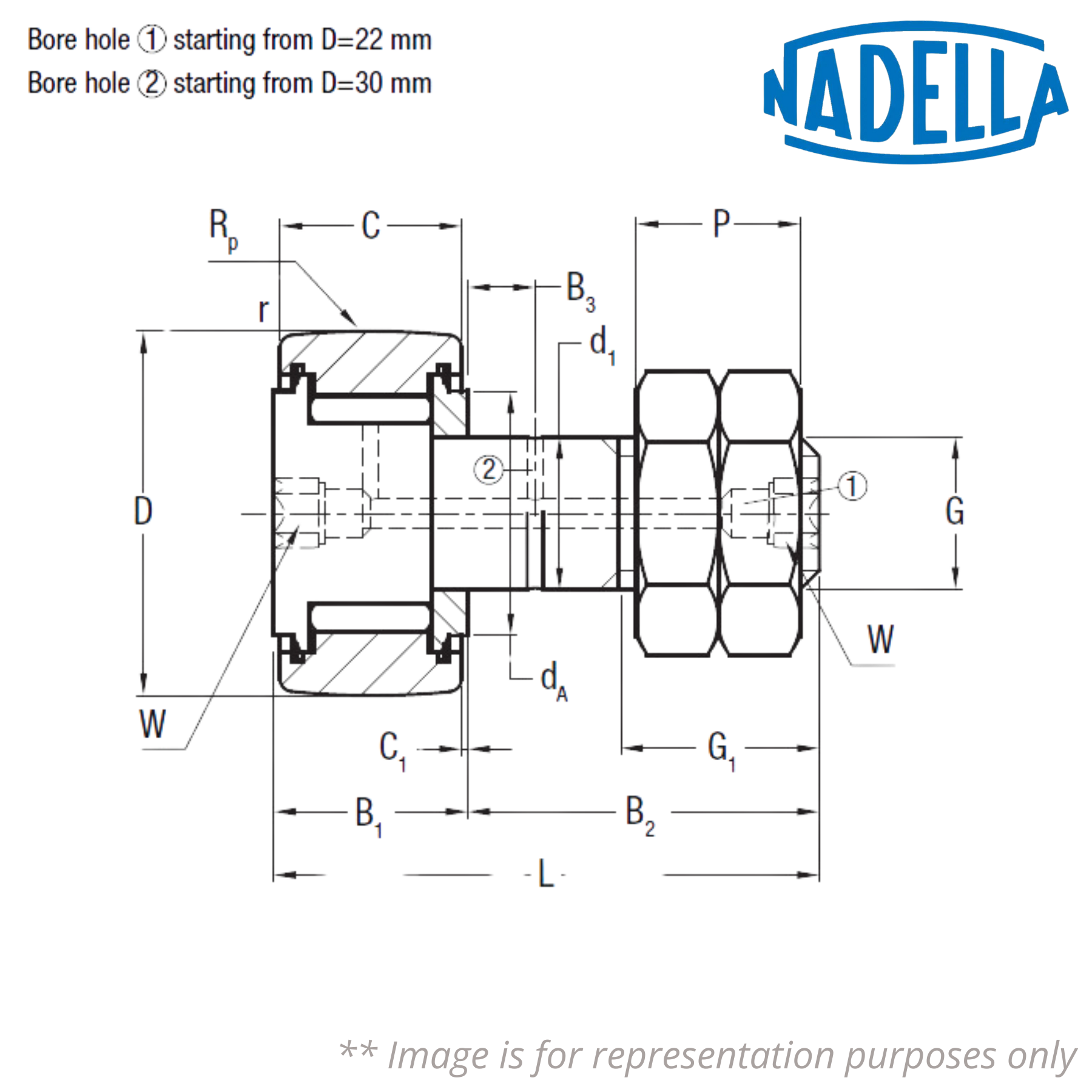

Outer Diameter (D) mm - 40
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 18
L (mm) - 58
B1 (mm) - 21.6
B2 (mm) - 36.5
Threading G (mm) - M18x1.5
G1 (mm) - 19
C (mm) - 20
C1 (mm) - 0.8
dA (mm) - 33.8
B3 (mm) - 31
r (mm) - 1
W (mm) - 12
P (mm) - 18
Load Coefficient (Cw) N - 22000
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 19000
Static Load Coefficient for Cam Followers without Stud (For) N - 34000
Speed Limit with Grease (min-1) - 1800
Weight (kg) - 0.321
Clamping Torque (Nm) - 90
GCL - Concentric Cam Follower with Stud Cylindrical Outer Ring
Seal - No Seal
