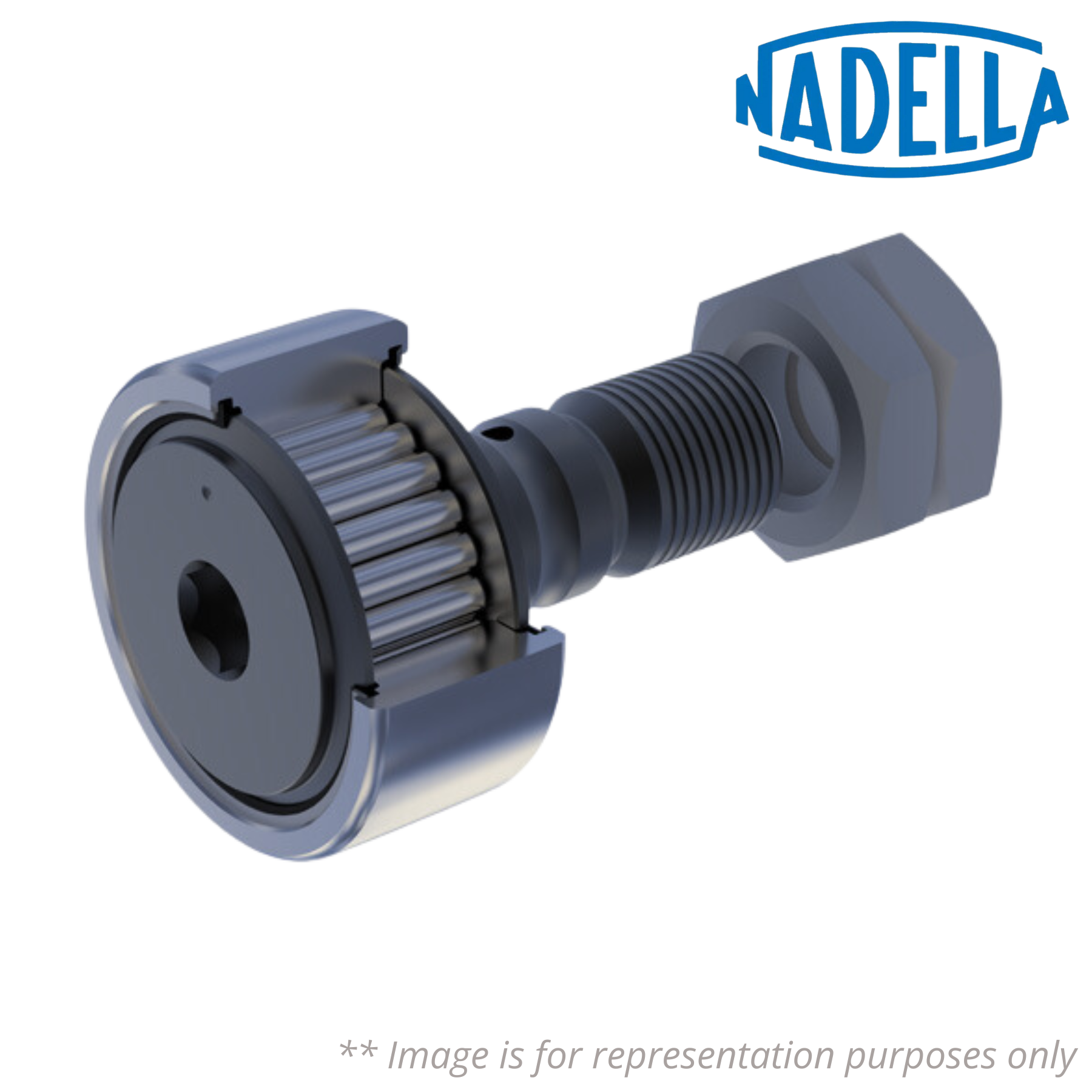

GCR 24 EE NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GCR 24 EE NADELLA
Category - Cam Followers with Stud (Eccentric Collar)
Also Known As - GCR24EE
Outer Diameter (D) mm - 24
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 10
L (mm) - 36
B1 (mm) - 13.2
B2 (mm) - 23
Threading (G) mm - M10x1.25
G1 (mm) - 12
C (mm) - 12
C1 (mm) - 0.6
dA (mm) - 18.2
B3 (mm) - 15.5
r (mm) - 0.3
Rp (mm) - 600
W (mm) - 4
P (mm) - 10

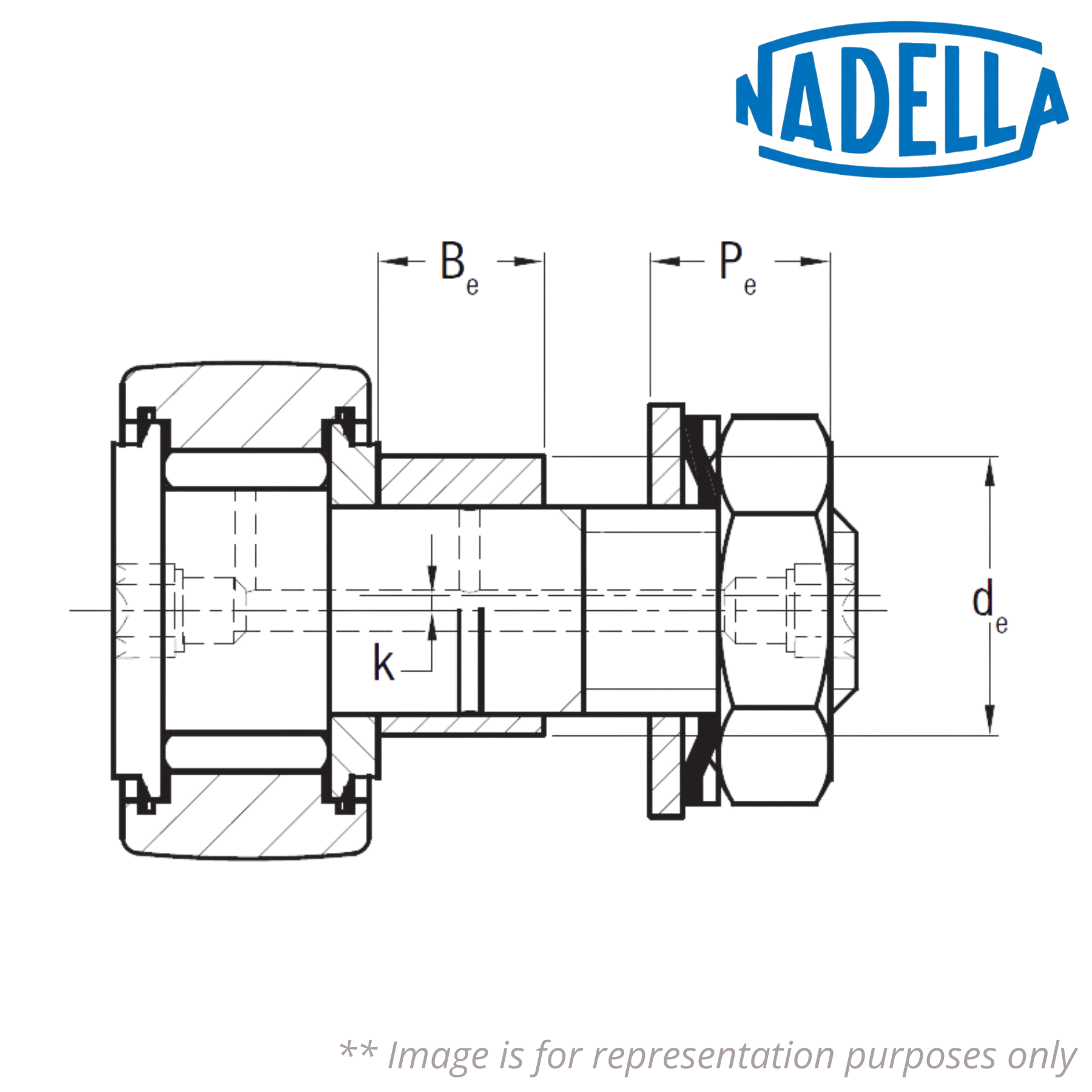

Eccentric Bearing (de) mm - 14
Eccentric Bearing (k) mm - 1
Eccentric Bearing (Be) mm - 11
Eccentric Bearing (Pe) mm - 7.9
Load Coefficient (Cw) N - 7600
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 5300
Static Load Coefficient for Cam Followers without Stud (For) N - 9800
Speed Limit with Grease (min-1) - 3400
Weight (kg) - 0.072
Clamping Torque (Nm) - 20
GCL - Cam Followers with Stud with Eccentric Collar
Seal - Plastic Seal
