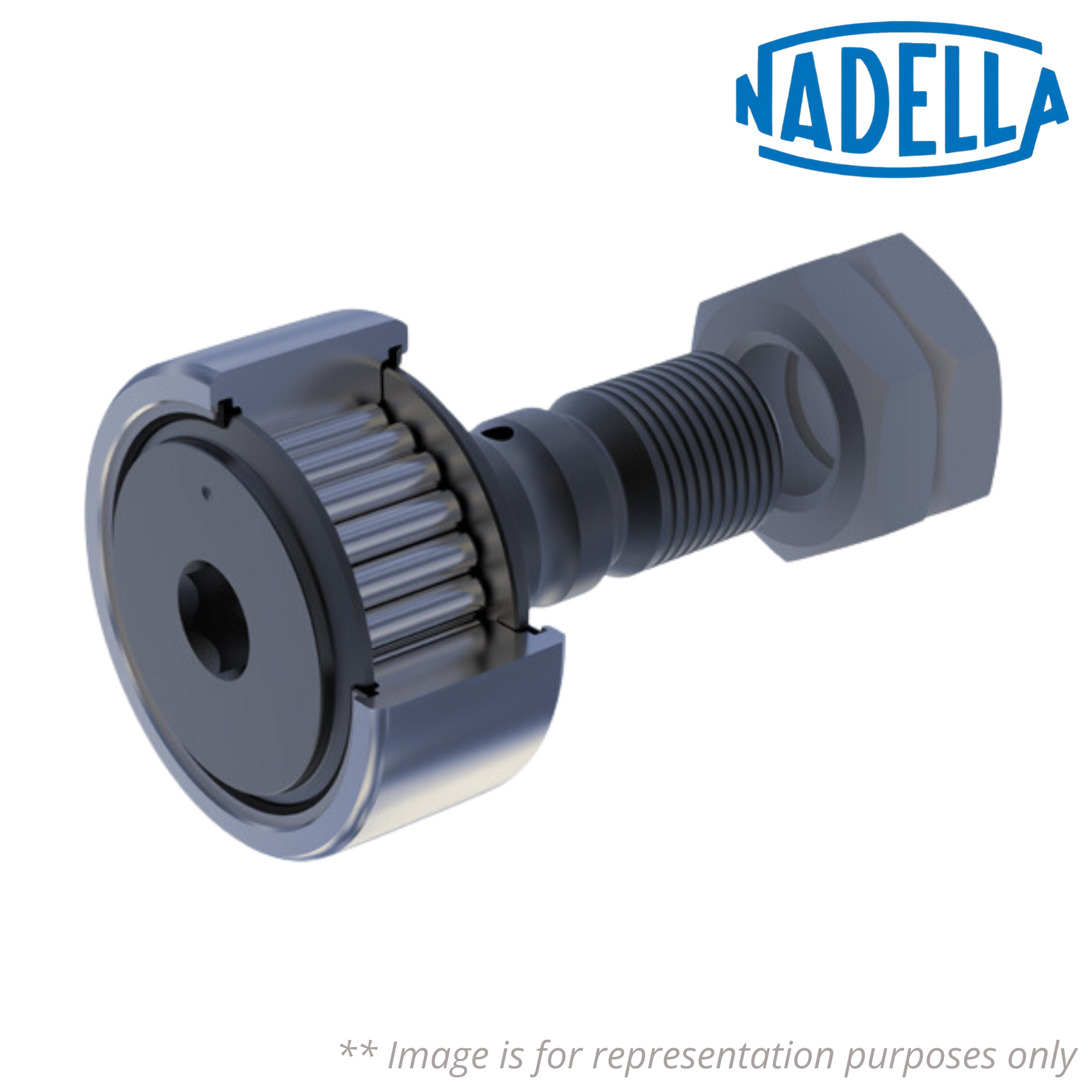

GCR 32 EEM NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GCR 32 EEM NADELLA
Category - Cam Followers with Stud (Eccentric Collar)
Also Known As - GCR32EEM
Outer Diameter (D) mm - 32
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 12
L (mm) - 40
B1 (mm) - 15.2
B2 (mm) - 25
Threading (G) mm - M12x1.5
G1 (mm) - 13
C (mm) - 14
C1 (mm) - 0.6
dA (mm) - 24.8
B3 (mm) - 21
r (mm) - 0.6
Rp (mm) - 700
W (mm) - 6
P (mm) - 12
Eccentric Bearing (de) mm - 16
Eccentric Bearing (k) mm - 1
Eccentric Bearing (Be) mm - 11
Eccentric Bearing (Pe) mm - 9.5
Load Coefficient (Cw) N - 13000
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 7900
Static Load Coefficient for Cam Followers without Stud (For) N - 15000
Speed Limit with Grease (min-1) - 2600
Weight (kg) - 0.126
Clamping Torque (Nm) - 26
GCL - Cam Followers with Stud with Eccentric Collar
Seal - Metal Seal
