Description
Brand - NADELLA

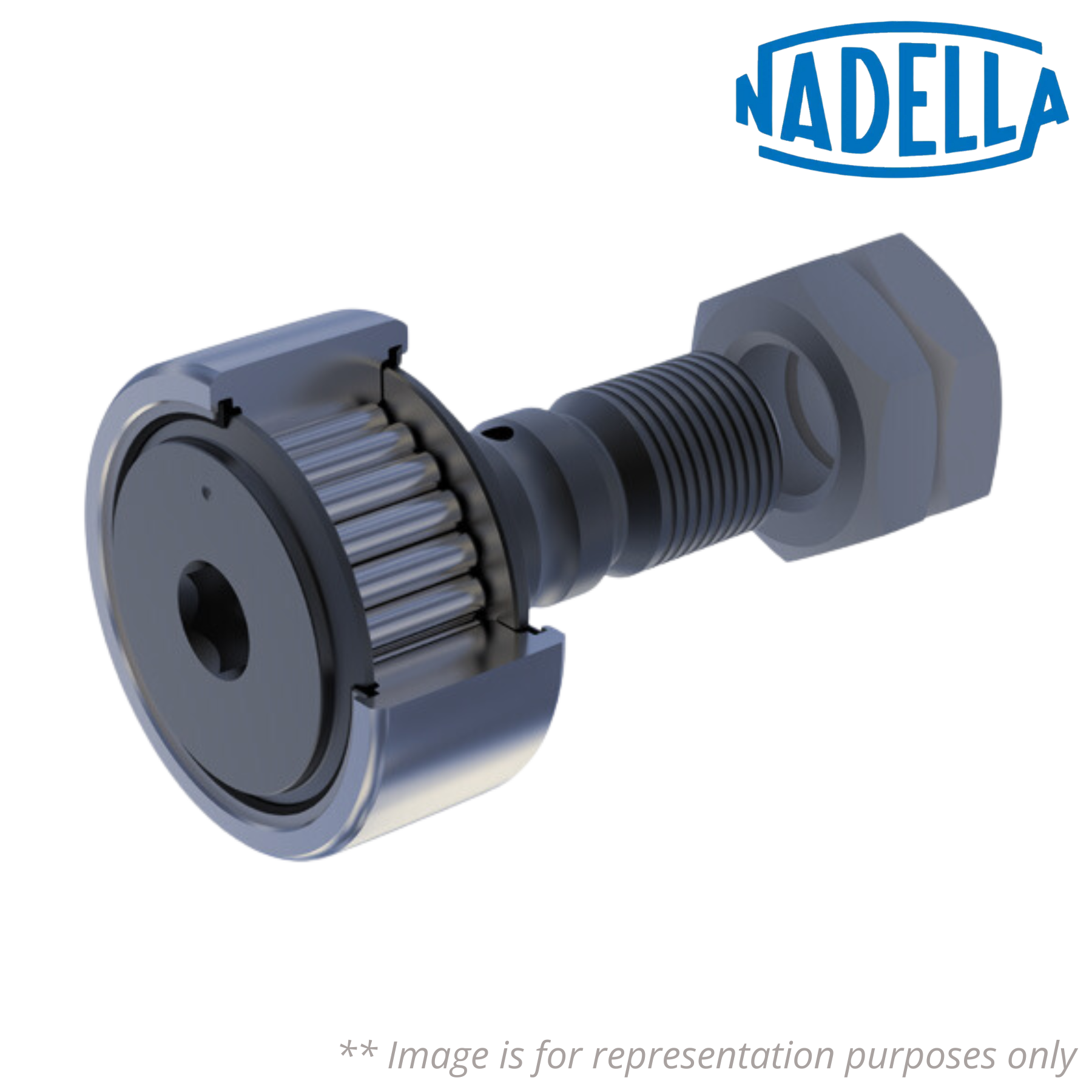

Item Number - GCR 40 NADELLA
Category - Cam Followers with Stud (Eccentric Collar)
Also Known As - GCR40
Outer Diameter (D) mm - 40
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 18
L (mm) - 58
B1 (mm) - 21.6
B2 (mm) - 36.5
Threading (G) mm - M18x1.5
G1 (mm) - 19
C (mm) - 20
C1 (mm) - 0.8
dA (mm) - 33.8
B3 (mm) - 31
r (mm) - 1
Rp (mm) - 1000
W (mm) - 12
P (mm) - 18

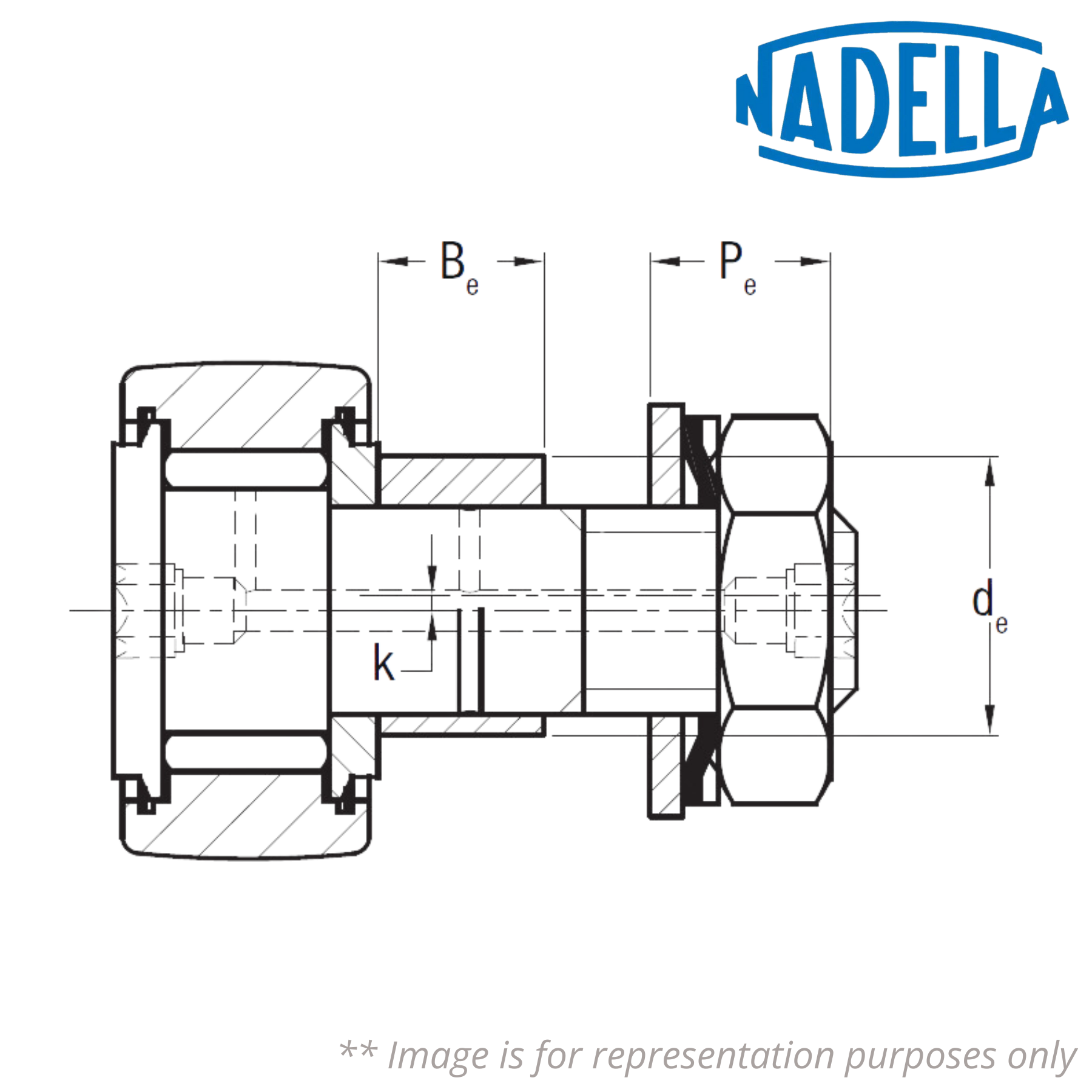

Eccentric Bearing (de) mm - 24
Eccentric Bearing (k) mm - 1.5
Eccentric Bearing (Be) mm - 16
Eccentric Bearing (Pe) mm - 13.4
Load Coefficient (Cw) N - 22000
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 19000
Static Load Coefficient for Cam Followers without Stud (For) N - 34000
Speed Limit with Grease (min-1) - 1800
Weight (kg) - 0.321
Clamping Torque (Nm) - 90
GCL - Cam Followers with Stud with Eccentric Collar
Seal - No Seal
