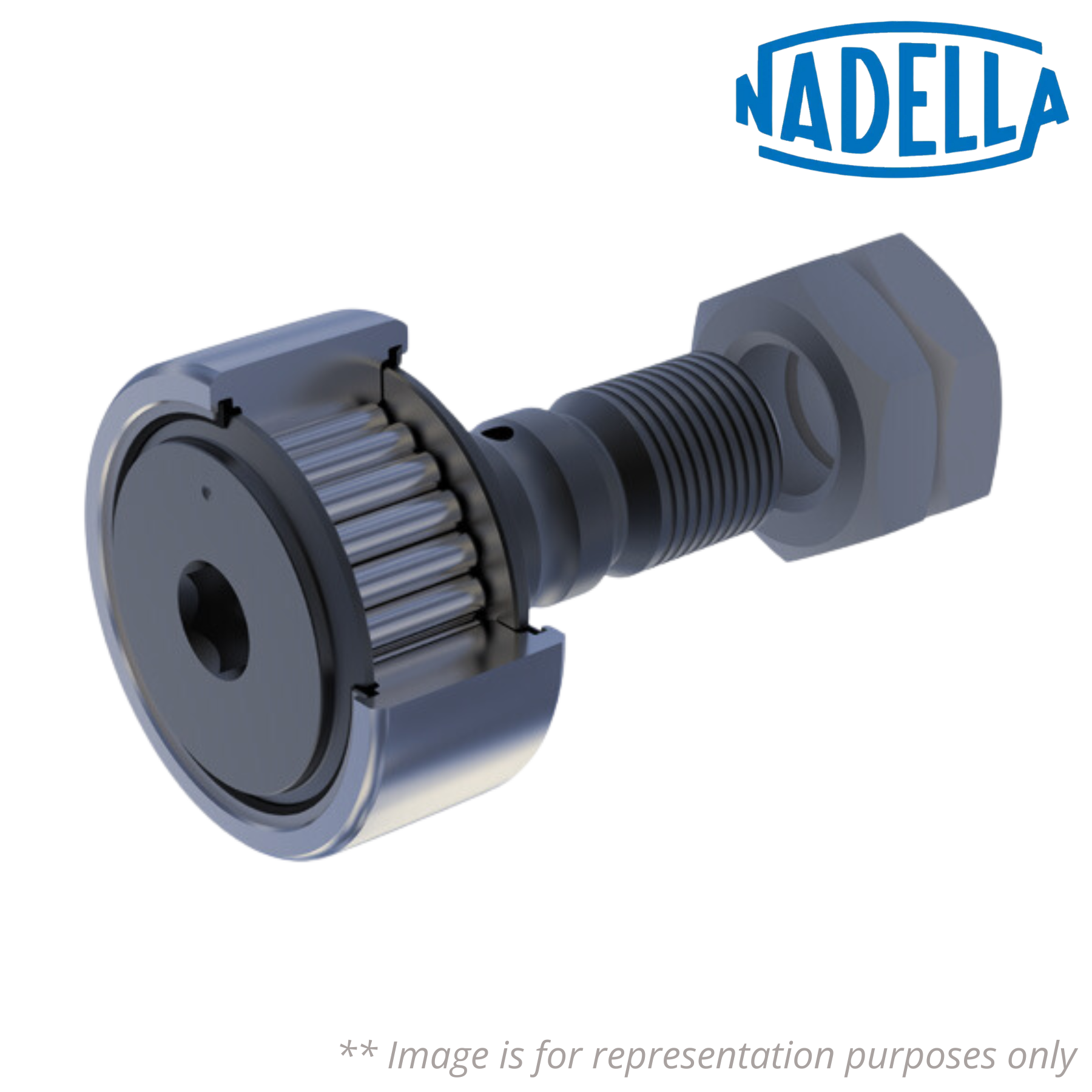

GCR 52 EEM SW NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GCR 52 EEM SW NADELLA
Category - Cam Followers with Stud (Eccentric Collar)
Also Known As - GCR52EEMSW
Outer Diameter (D) mm - 52
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 20
L (mm) - 66
B1 (mm) - 25.6
B2 (mm) - 40.5
Threading (G) mm - M20x1.5
G1 (mm) - 21
C (mm) - 24
C1 (mm) - 0.8
dA (mm) - 38.7
B3 (mm) - 35
r (mm) - 1
Rp (mm) - 1200
W (mm) - 14
P (mm) - 20

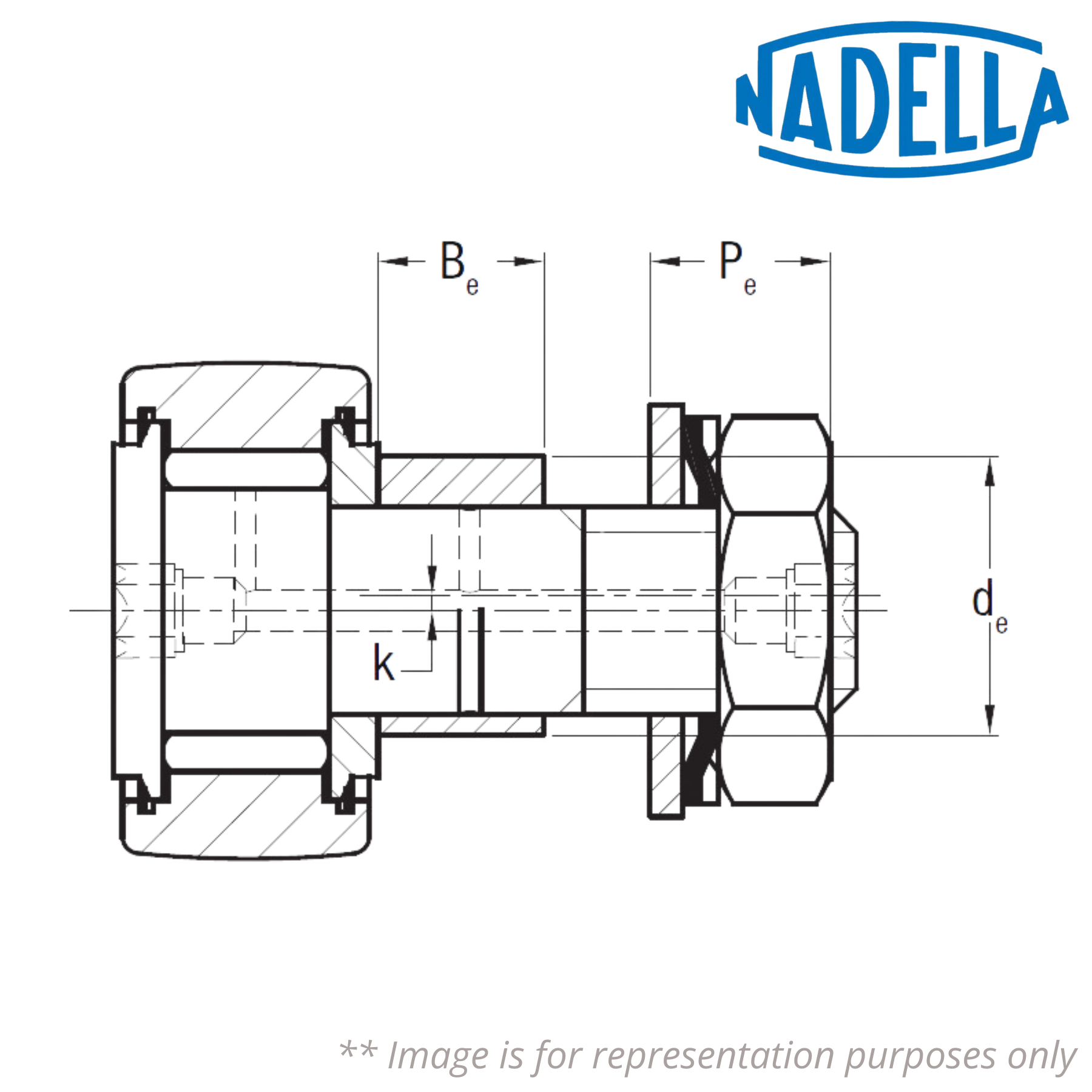

Eccentric Bearing (de) mm - 27
Eccentric Bearing (k) mm - 2
Eccentric Bearing (Be) mm - 17.5
Eccentric Bearing (Pe) mm - 14.4
Load Coefficient (Cw) N - 33000
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 22000
Static Load Coefficient for Cam Followers without Stud (For) N - 40000
Speed Limit with Grease (min-1) - 1500
Weight (kg) - 0.568
Clamping Torque (Nm) - 120
GCL - Cam Followers with Stud with Eccentric Collar
Seal - Metal Seal
