Description
Brand - NADELLA

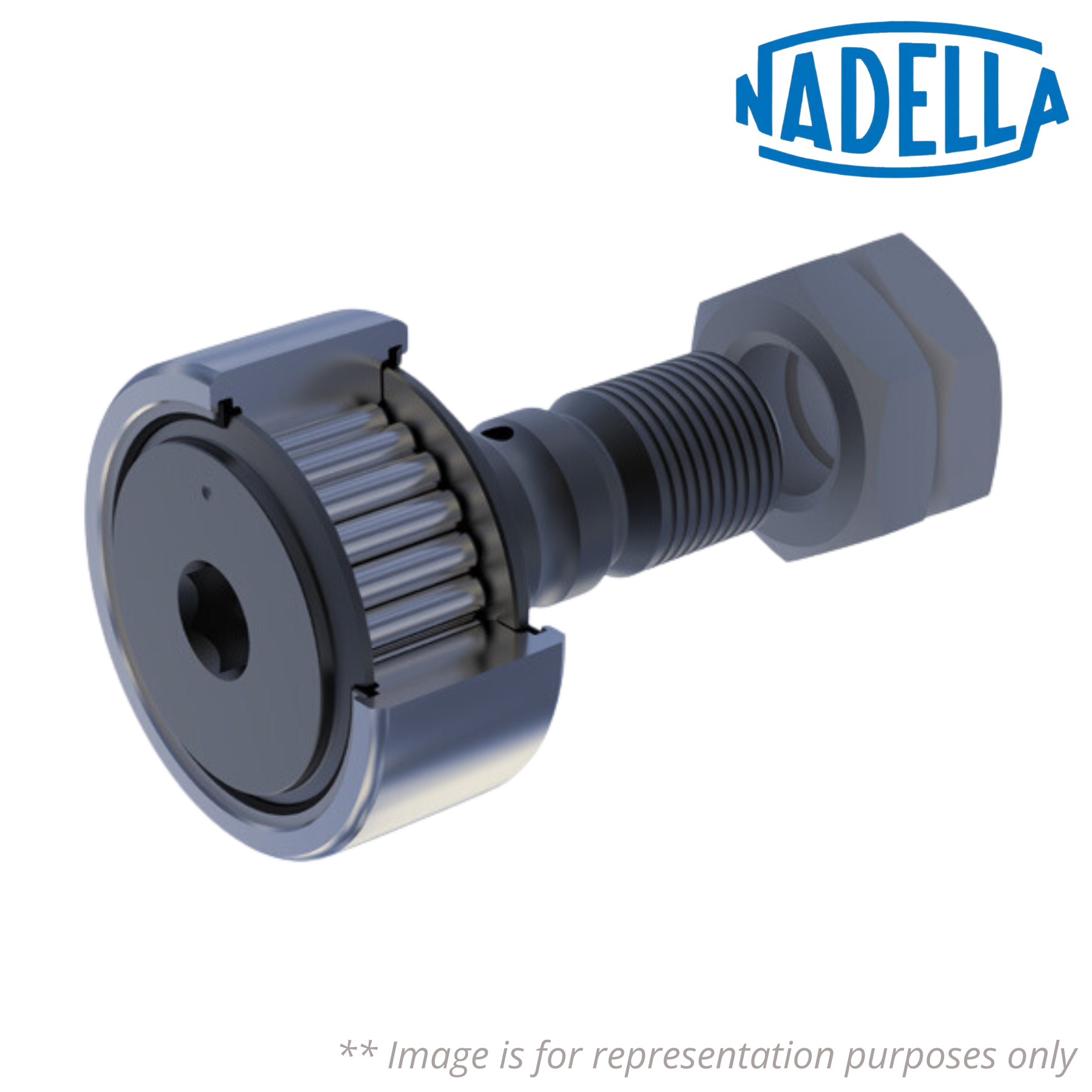

Item Number - GCR 85 EE NADELLA
Category - Cam Followers with Stud (Eccentric Collar)
Also Known As - GCR85EE
Outer Diameter (D) mm - 85
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 30
L (mm) - 100
B1 (mm) - 37
B2 (mm) - 63
Threading (G) mm - M30x1.5
G1 (mm) - 32
C (mm) - 35
C1 (mm) - 1
dA (mm) - 68
B3 (mm) - 61
r (mm) - 1
Rp (mm) - 1700
W (mm) - 14
P (mm) - 30

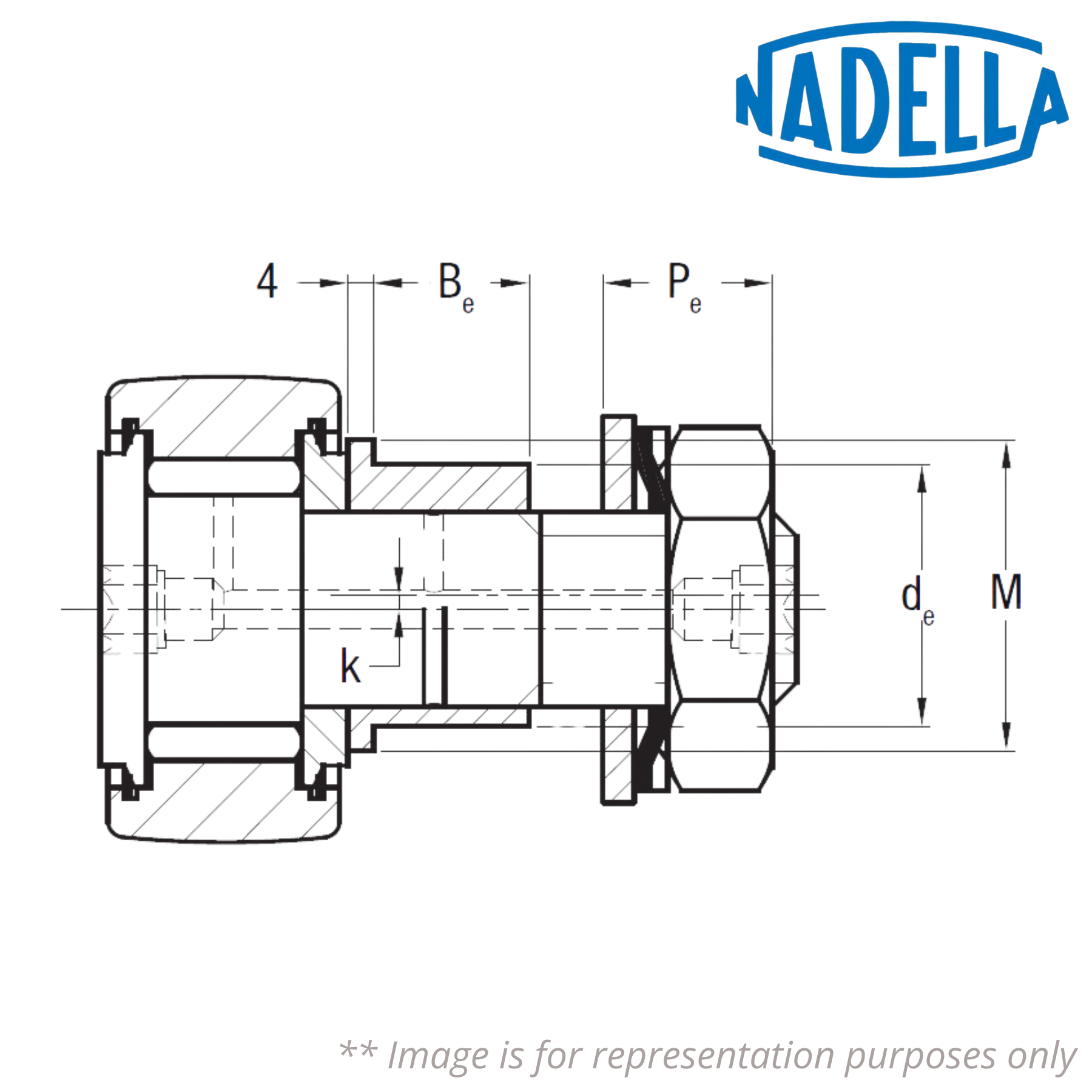

Eccentric Bearing (de) mm - 42
Eccentric Bearing (k) mm - 3
Eccentric Bearing (M) mm - 50
Eccentric Bearing (Be) mm - 27
Eccentric Bearing (Pe) mm - 20.6
Load Coefficient (Cw) N - 61000
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 50000
Static Load Coefficient for Cam Followers without Stud (For) N - 93000
Speed Limit with Grease (min-1) - 900
Weight (kg) - 2.235
Clamping Torque (Nm) - 450
GCL - Cam Followers with Stud with Eccentric Collar
Seal - Plastic Seal
