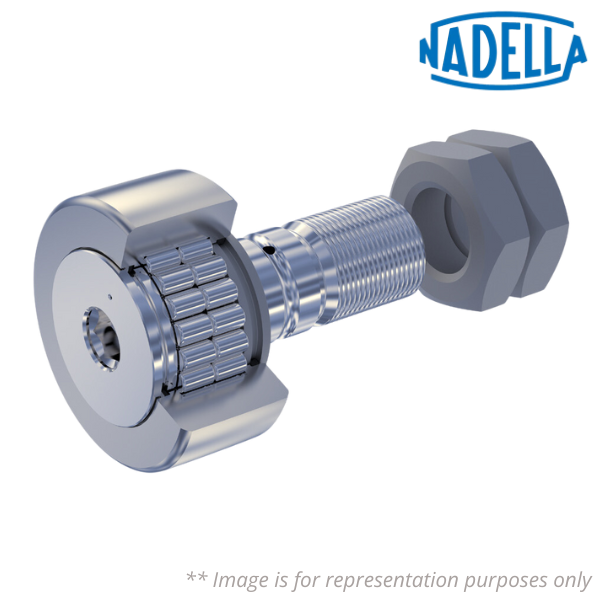

GCUR 100 MM NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GCUR 100 MM NADELLA
Category - Cam Followers with Threaded Stud and Crowned Outer Ring
Also Known As - GCUR100MM

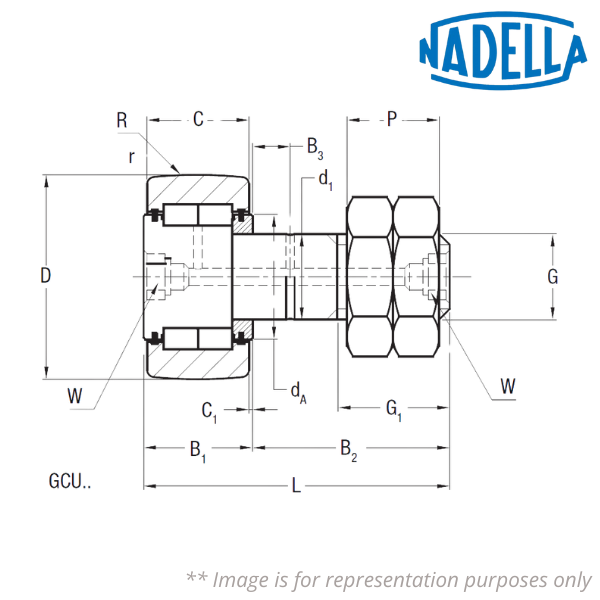

Outer Diameter (D) mm - 100
Hole Diameter (d1) mm - 36
L (mm) - 117
B1 (mm) - 42
B2 (mm) - 75
Threading (G) mm - M36x3
G1 (mm) - 38
C (mm) - 40
C1 (mm) - 1
dA (mm) - 61
B3 (mm) - 20
r (mm) - 2
Convex Radius (R) mm - 1000
W (mm) - 17
P (mm) - 36

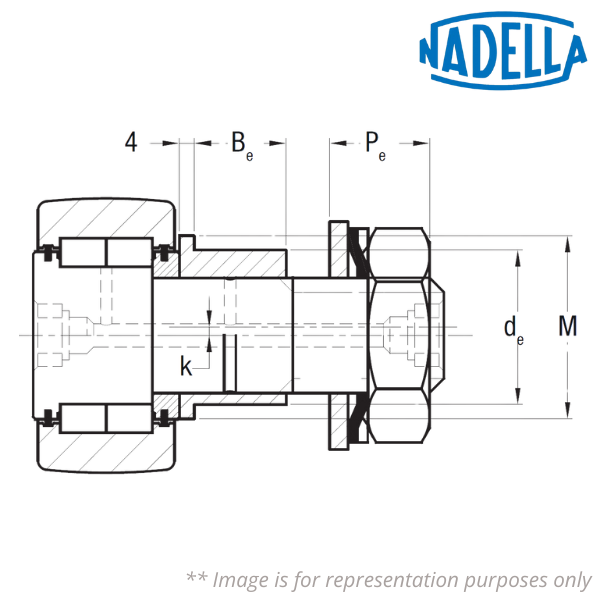

Eccentric Bearing (de) mm * - 48
Eccentric Bearing (k) mm - 3
Eccentric Bearing (M) mm - 56
Eccentric Bearing (Be) mm - 32
Eccentric Bearing (Pe) mm - 24.6
Load Coefficient (Cw) N - 110000
Dynamic Load Coefficient (Fr) N - 76000
Static Load Coefficient (For) N - 130000
Speed Limit with Grease (min-1) - 890
Weight of Nut and Washers (kg) - 3.38
Clamping Torque (Nm) - 740
GCUR - Eccentric Cam Follower with Stud and Convex Outer Ring
MM - With Metal Guard
Guard - Metal Guard

* Hole Diameter (de) for Assembly of the Eccentric Cam Follower Without Stud
