GCUR 47 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GCUR 47 NADELLA

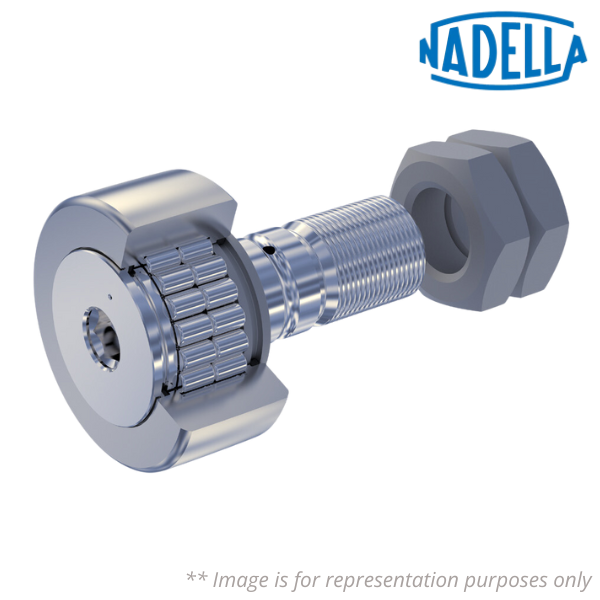

Category - Cam Followers with Threaded Stud and Crowned Outer Ring
Also Known As - GCUR47

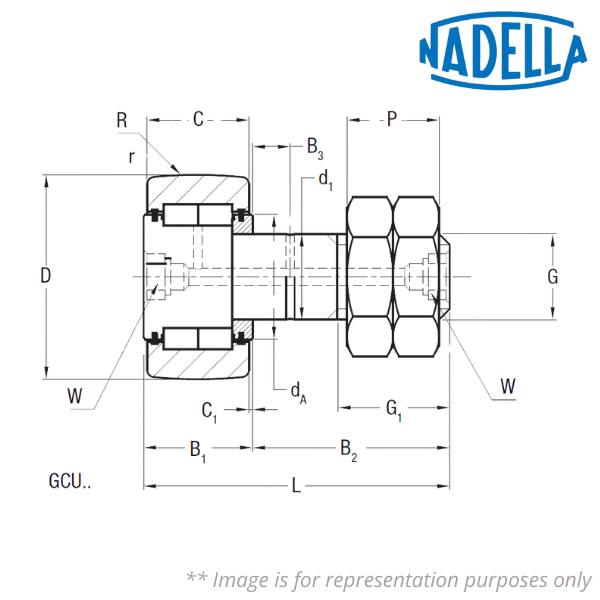

Outer Diameter (D) mm - 47
Hole Diameter (d1) mm - 20
L (mm) - 66
B1 (mm) - 25.6
B2 (mm) - 40.5
Threading (G) mm - M20x1.5
G1 (mm) - 21
C (mm) - 24
C1 (mm) - 0.8
dA (mm) - 33.6
B3 (mm) - 9
r (mm) - 1
Convex Radius (R) mm - 500
W (mm) - 10
P (mm) - 20

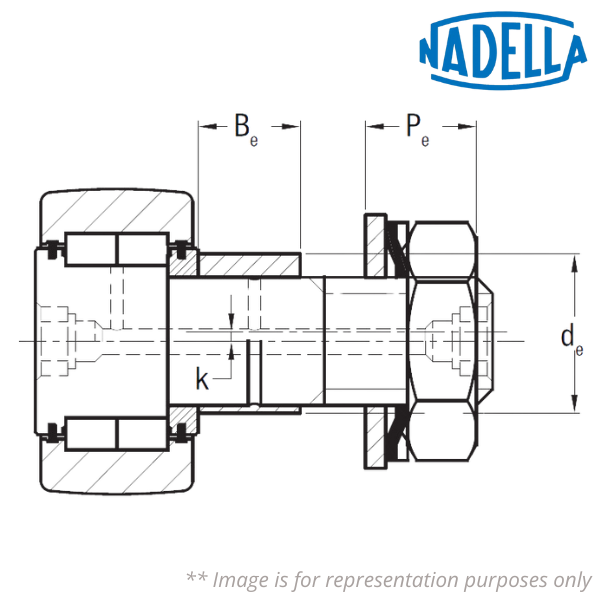

Eccentric Bearing (de) mm * - 27
Eccentric Bearing (k) mm - 2
Eccentric Bearing (Be) mm - 17.5
Eccentric Bearing (Pe) mm - 14.4
Load Coefficient (Cw) N - 26000
Dynamic Load Coefficient (Fr) N - 18000
Static Load Coefficient (For) N - 28000
Speed Limit with Grease (min-1) - 1650
Weight of Nut and Washers (kg) - 0.5
Clamping Torque (Nm) - 120
GCUR - Eccentric Cam Follower with Stud and Convex Outer Ring
Guard - No Guard

* Hole Diameter (de) for Assembly of the Eccentric Cam Follower Without Stud
