GD050XP0 RBC

Brand - RBC
Item Number - GD050XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

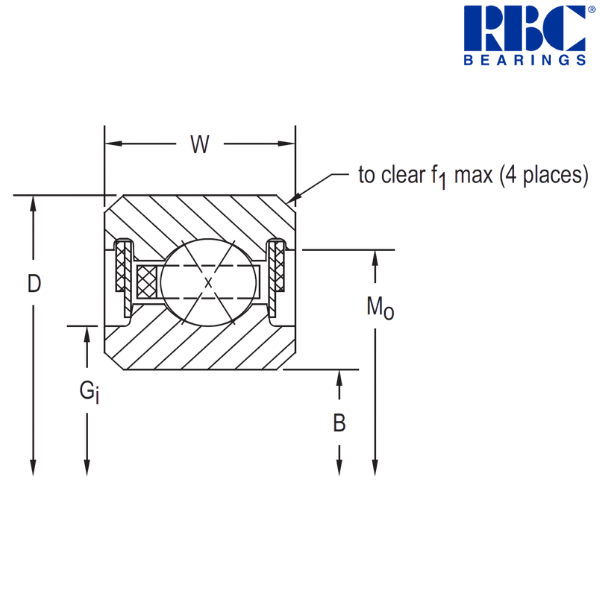

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5 inch
Outside Diameter (D) - 6 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 5.25 inch
Groove Diameter (Mo) - 5.687 inch
Housing Fillet (f1) - 0.06 inch
Ball Diameter - 0.25 inch
Ball Quantity - 33 pcs.
Approximate Weight - 1 lbs
Radial Static Load - 3760 lbf
Radial Dynamic Load - 2592 lbf
Thrust Static Load - 9410 lbf
Thrust Dynamic Load - 5270 lbf
Moment Static Load - 10350 lbf
Moment Dynamic Load - 5800 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 127 mm
Outside Diameter (D) - 152.4 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 133.35 mm
Groove Diameter (Mo) - 144.45 mm
Housing Fillet (f1) - 1.52 mm
Approximate Weight - 0.454 kg
Radial Static Load - 16730 N
Radial Dynamic Load - 11530 N
Thrust Static Load - 41860 N
Thrust Dynamic Load - 23440 N
Moment Static Load - 1170 Nm
Moment Dynamic Load - 660 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
D - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.
