Description
Brand - RBC
Item Number - GE 12 M RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - No Seal
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 12 mm
Outer Diameter (D) - 22 mm
Width (B) - 10 mm
Dimension (C) - 7 mm
Dimension (dk) - 18 mm
Minimum Dimension (R1) - 0.3 mm
Minimum Dimension (R2) - 0.3 mm
Dimension (a) - 11 mm
Basic Dynamic Load Rating (C) - 10.8 kN
Basic Static Load Rating (C0) - 54 kN
Weight - 0.016 kg

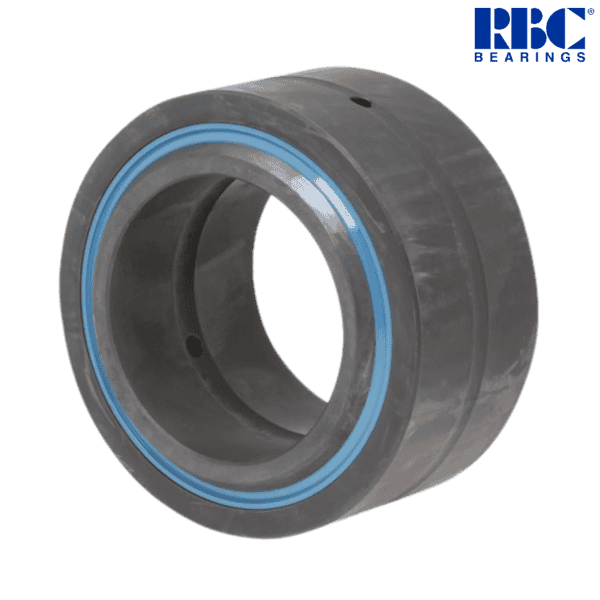

♦ ♦ Images are for representation purposes only
Item Number - GE 12 M RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - No Seal
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 12 mm
Outer Diameter (D) - 22 mm
Width (B) - 10 mm
Dimension (C) - 7 mm
Dimension (dk) - 18 mm
Minimum Dimension (R1) - 0.3 mm
Minimum Dimension (R2) - 0.3 mm
Dimension (a) - 11 mm
Basic Dynamic Load Rating (C) - 10.8 kN
Basic Static Load Rating (C0) - 54 kN
Weight - 0.016 kg
♦ ♦ Images are for representation purposes only
