Description

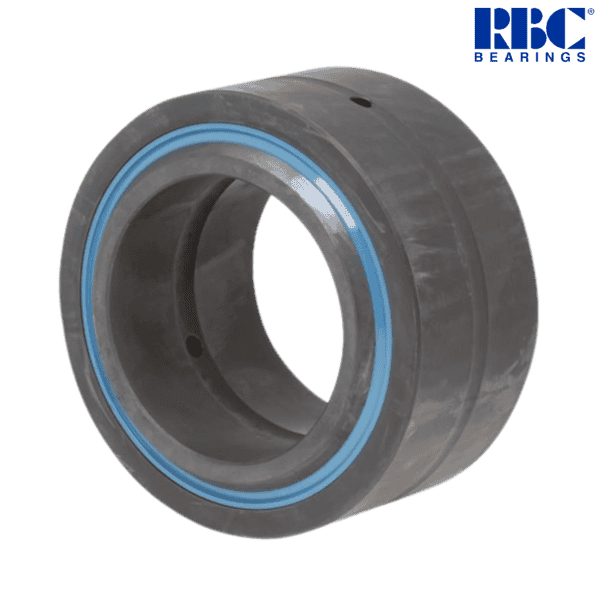

Brand - RBC
Item Number - GE 20 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 20 mm
Outer Diameter (D) - 35 mm
Width (B) - 16 mm
Dimension (C) - 12 mm
Dimension (dk) - 29 mm
Minimum Dimension (R1) - 0.6 mm
Minimum Dimension (R2) - 0.3 mm

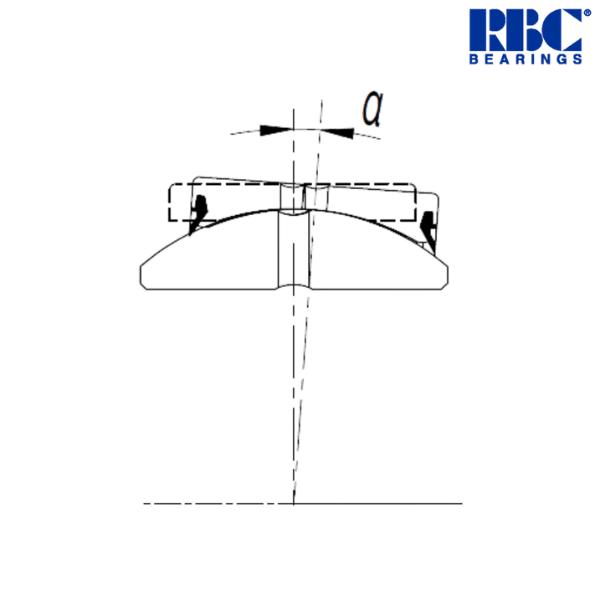

Dimension (a) - 9 mm
Basic Dynamic Load Rating (C) - 30 kN
Basic Static Load Rating (C0) - 146 kN
Weight - 0.061 kg
Spherical Plain Bearing without Seals - GE 20 MB
♦ ♦ Images are for representation purposes only
Item Number - GE 20 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 20 mm
Outer Diameter (D) - 35 mm
Width (B) - 16 mm
Dimension (C) - 12 mm
Dimension (dk) - 29 mm
Minimum Dimension (R1) - 0.6 mm
Minimum Dimension (R2) - 0.3 mm
Dimension (a) - 9 mm
Basic Dynamic Load Rating (C) - 30 kN
Basic Static Load Rating (C0) - 146 kN
Weight - 0.061 kg
Spherical Plain Bearing without Seals - GE 20 MB
♦ ♦ Images are for representation purposes only
