Description
Brand - RBC
Item Number - GE 240 MB RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - No Seal
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 240 mm
Outer Diameter (D) - 340 mm
Width (B) - 140 mm
Dimension (C) - 100 mm
Dimension (dk) - 300 mm
Minimum Dimension (R1) - 1.1 mm
Minimum Dimension (R2) - 1.1 mm
Dimension (a) - 8 mm
Basic Dynamic Load Rating (C) - 2550 kN
Basic Static Load Rating (C0) - 12700 kN
Weight - 39.910 kg
Spherical Plain Bearing with Seals - GE 240 MB-2RS

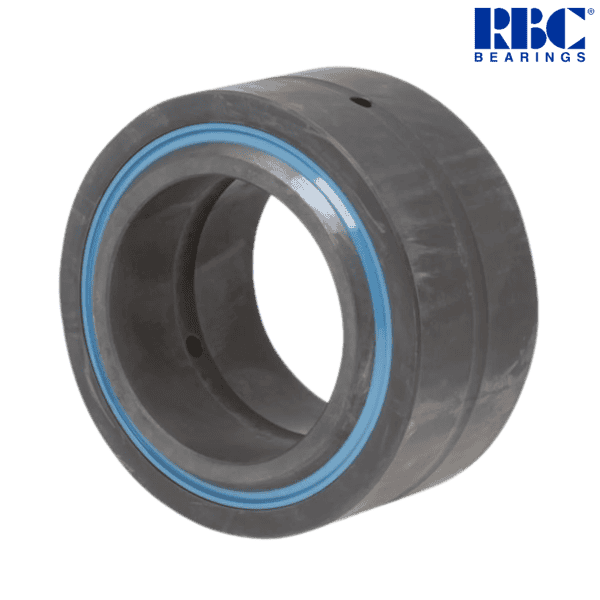

♦ ♦ Images are for representation purposes only
Item Number - GE 240 MB RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - No Seal
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 240 mm
Outer Diameter (D) - 340 mm
Width (B) - 140 mm
Dimension (C) - 100 mm
Dimension (dk) - 300 mm
Minimum Dimension (R1) - 1.1 mm
Minimum Dimension (R2) - 1.1 mm
Dimension (a) - 8 mm
Basic Dynamic Load Rating (C) - 2550 kN
Basic Static Load Rating (C0) - 12700 kN
Weight - 39.910 kg
Spherical Plain Bearing with Seals - GE 240 MB-2RS
♦ ♦ Images are for representation purposes only
