Description

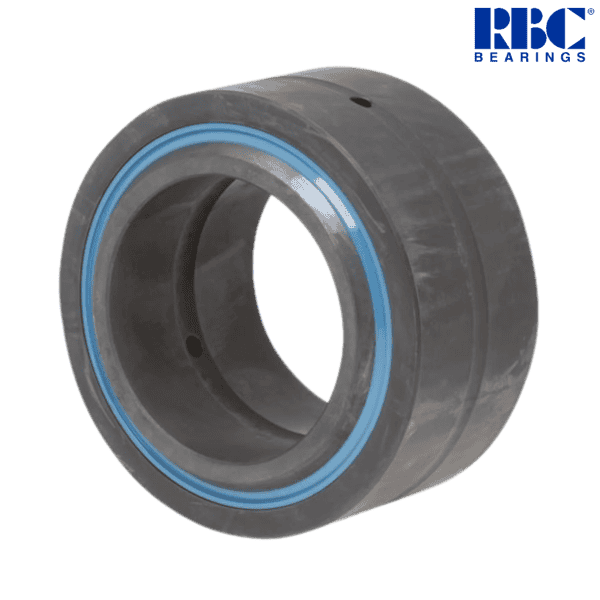

Brand - RBC
Item Number - GE 25 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 25 mm
Outer Diameter (D) - 42 mm
Width (B) - 20 mm
Dimension (C) - 16 mm
Dimension (dk) - 35.5 mm
Minimum Dimension (R1) - 0.6 mm
Minimum Dimension (R2) - 0.6 mm

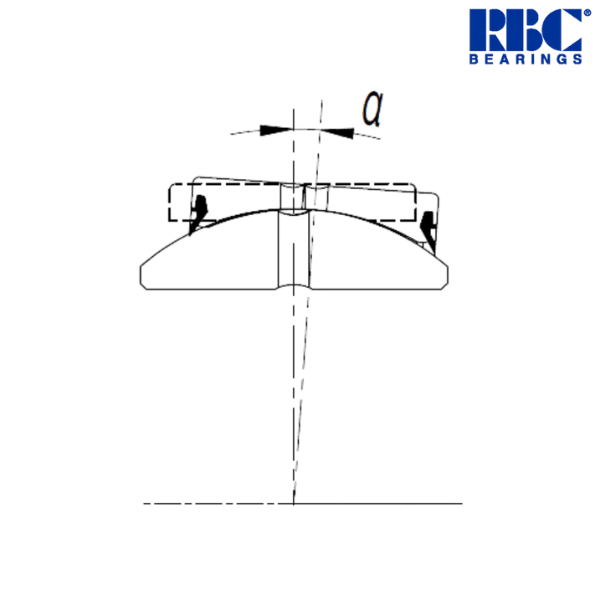

Dimension (a) - 7 mm
Basic Dynamic Load Rating (C) - 48 kN
Basic Static Load Rating (C0) - 240 kN
Weight - 0.110 kg
Spherical Plain Bearing without Seals - GE 25 MB
♦ ♦ Images are for representation purposes only
Item Number - GE 25 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 25 mm
Outer Diameter (D) - 42 mm
Width (B) - 20 mm
Dimension (C) - 16 mm
Dimension (dk) - 35.5 mm
Minimum Dimension (R1) - 0.6 mm
Minimum Dimension (R2) - 0.6 mm
Dimension (a) - 7 mm
Basic Dynamic Load Rating (C) - 48 kN
Basic Static Load Rating (C0) - 240 kN
Weight - 0.110 kg
Spherical Plain Bearing without Seals - GE 25 MB
♦ ♦ Images are for representation purposes only
